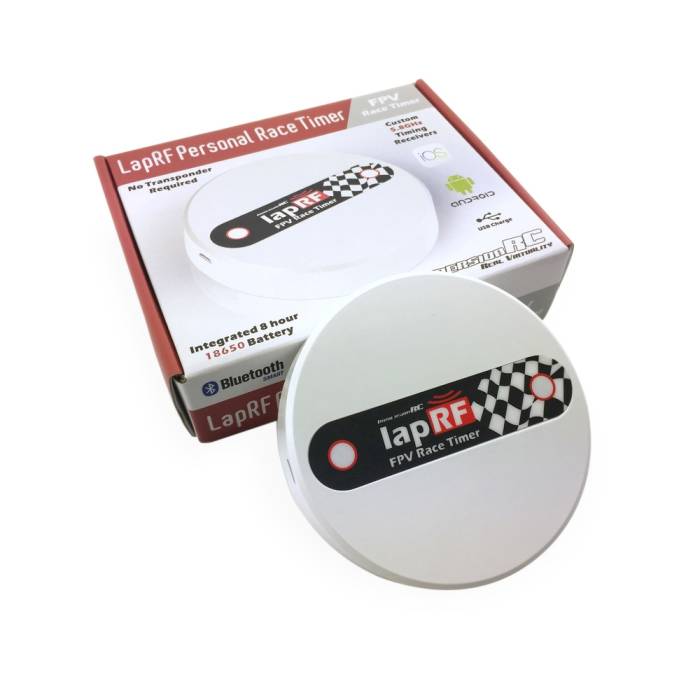

The LapRF is a personal race timing system for FPV quads using 5.8GHz video feeds.
The passing of a quad through the start/finish gate is precisely measured using the energy emitted by the 5.8GHz transmitter on the quad.
Custom fully-programmable timing receivers, coupled with ImmersionRC's timing antennas ensure that the performance of this system is on a different level than competing products. Video power levels from 10mW through 600mW supported.
Super-precise with one pilot, but also supporting multiple pilots for smaller events without purchasing multiple units (up to 8 with lower gate speeds as found in the micro-quad world).
Bluetooth connection to Android and iOS devices, with free applications downloadable from their respective app. stores.
Fully integrated with the industry standard LiveTime event management software.
Integrated 2600mAh Li-ion battery, with integrated USB charger gives 8 hour race time.
Easy To Use
It doesn’t get much easier. Power on the LapRF, drop it in the start/finish gate,
select its ID in the free Android/iOS app, select the number of pilots, and video channels used, and start racing.
The LapRF will run all day, measuring lap times and speaking the results. There is no better tool to allow pilots to measure their performance, and work to improve it
No More Transponders!
The lapRF uses the Radio Frequency energy emitted by the Video Transmitter on the model to detect its presence within the race gate. The current generation of racing drones have two things in common, they all use 5.8GHz video downlinks, and they all need to be on different channels to race together. This is all that the lapRF system needs to precisely time events. No RFID transponders, no Infra-Red transponders, no complex installations. Just place the lapRF system in the start/finish gate, and start racing.
Bluetooth Link to Phones and Tablets
The LapRF Personal Timing System includes a bluetooth module which can quickly link an iOS or Android device to the gate. Enter pilot names, start the race, and the lap times will be spoken along with the pilot’s name. All lap times will be shown in a table, along with average, and best lap times.
Any loss of Bluetooth connection will not result in loss of lap times. When Bluetooth is reconnected, all missed lap times will be transferred to the app.
Personal… but Sharable
The LapRF Personal Timer was designed to be used by one pilot, that is where it is the most precise. But if you want to invite a few friends along for a quick race around the park, we support that too, out of the box. No need to figure out how to interface your mates timers together, or run multiple apps, just share yours. Timing resolution (which is more than enough with one pilot) decreases as you add more pilots, but when you start with more than enough, and share, you end up with just enough
Integrated 2600mAh Battery
Integrating a high capacity, but common 18650 battery (available from vape shops worldwide) the LapRF doesn’t need an external power supply. To allow quick in-the-field replacements, we included a handy battery door in the bottom of the unit, minimizing down time during battery changes. When it is time to recharge the battery, the integrated charger just requires a USB hookup, no need to remove the battery.
Custom Timing Receivers
Instead of using a standard receiver module in the timing system, ImmersionRC’s hardware engineering team designed a custom module, which can be calibrated on-the-fly to adapt to the different power levels found in races. Sensitive enough to detect passing quads, but selective enough to ignore adjacent channel interference. Heavily filtered to ignore off-band interference common at race events. To top it all off, we designed custom antennas with gate-shaped beams which let you precisely define the detection area of the timing system (something that competitive units sorely lack). These antennas are designed for RHCP/LHCP, and Linear polarization, covering everything that will be seen at a race event.
Ethernet Interface (8-Way Event Version)
The high-end version of the lapRF, the Event timing system (which will be announced in more detail shortly), includes an Ethernet port to allow direct cabling of the timing system into race management systems. Evaluated for > 6 months by none other than Joe Scully, the best race commentator in the business, and used for the vast majority of his events. Joe’s feedback was instrumental in ensuring that this timing system meets the needs of FPV race organizers. (And of course, IP67 waterproof, passively cooled, with no fans to suck in stray vegetation, commonly found at FPV race courses)
The ImmersionRC LapRF Race Timing Systems are both supported by the industry-leading LiveTime Scoring Engine. Full integration of the personal system via USB, or the event system via Ethernet, including full auto-calibration of the timing system, and even a built-in Spectrum Analyzer to analyze event background noise.
Hands-Free Control from Apple Watch
This is a little feature that sounds like a gimmick, but in practice works quite well. Your race is configured, your fellow pilots are ready to race, goggles down, and now you need to take your phone/tablet from your pocket to hit the start button. Nope, just reach to your wrist, hit the start button, and wait for the adrenaline buildup that accompanies most race starts. Of course, as an added bonus, this doubles your bluetooth range!. Just leave your phone/tablet within range of the timing system, and use your watch to remotely control it from up to 100m away.
Pimp your Puck!
During development, we referred to the lapRF personal edition as the ‘Timing Puck’ (its resemblance to a hockey puck apparently had something to do with that) Pimping your Puck therefore seems an appropriate way to refer to customizing your timing puck, making it stand out from the crowd, in the same way that our Vortex community loves to pimp their quads Several ‘pimp kits’ will be offered soon after product release, in colors defined by the community.
Connex ProSight Compatible
The LapRF is just as comfortable in the digital world as analog. Many successful mixed Analog and Digital races have been run by race director Joe Scully with a great deal of success. NOTE: Prosight units must be placed in fixed-frequency mode in order to connect pilots and channels.
- Additional Information
SKU 7272 Manufacturer ImmersionRC UPC (GTIN) 605482827444
