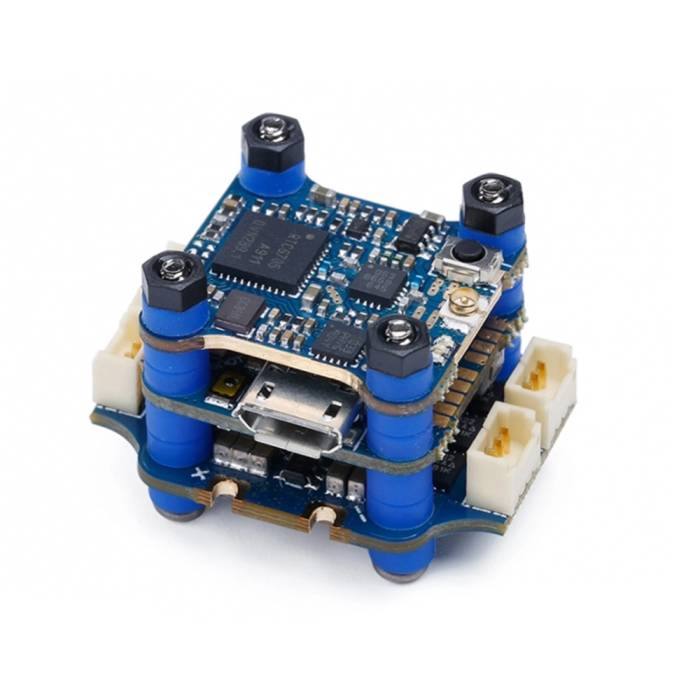

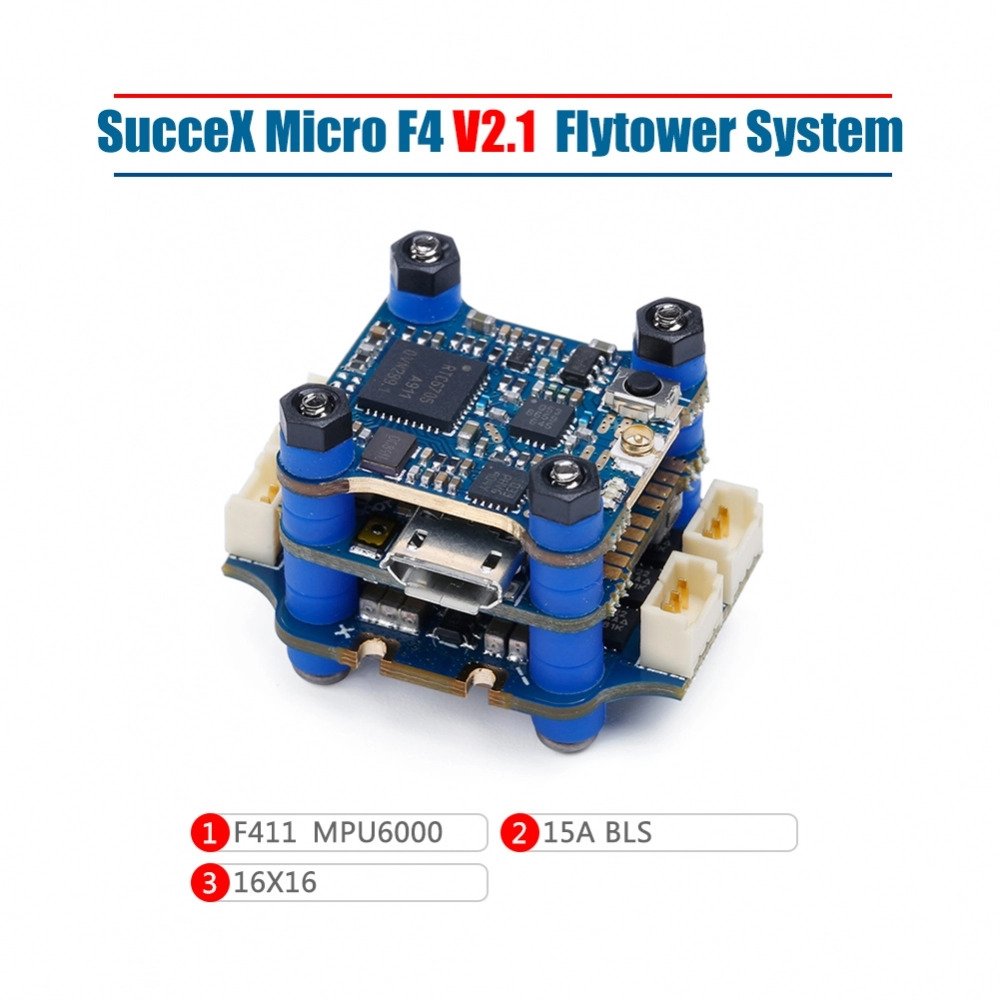

iFlight SucceX Micro F4 V2.1 16x16 Flight Tower System Stack - F411 Pro FC + 200mW VTX + 15A 2-4S ESC
iFlight SucceX Micro F4 V2.1 16x16 Flight Tower System Stack - F411 Pro FC + 200mW VTX + 15A 2-4S ESC
$90.99
iFlight SucceX Micro F4 V2.1 16x16 Flight Tower System Stack - F411 Pro FC + 200mW VTX + 15A 2-4S ESC
This stack includes the advanced SucceX Micro F4 V2.1 Flight Controller along with the SucceX Micro 15A V2 4-in-1 ESC, which can push your FPV racer to the max!
About this product
This iFlight Succex Micro Tower System includes the advanced SucceX Micro F4 V2.1 Flight Controller along with the SucceX Micro 15A V2 4-in-1 ESC, which can push your FPV racer to the max!
Specifications
SucceX Micro F4 V2.1 Pro Flight Controller
- STM32F411
- Input voltage 2-4S LIPO
- Gyro: MPU6000
- 2x UART ports
- 4x motor outputs
- Betaflight OSD :AT7456E
- Blackbox FLASH: 8MB
- BEC 5V 2.5A cont.
- Size: 21mm*21mm
- Mounting holes distance: 16*16mm
- Weight: 2.5g
- Firmware : IFF411_PRO(IFRC)
SucceX Micro 15A 4-in-1 ESC(w/plug)
- Firmware: G-H-30 BLS 16.7
- BLHeliSuite: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Input voltage : 2-4S LIPO
- Mounting hole 16*16mm
- Continuous current: 15A
- Current sensor: yes
- Size: 30mm*22mm
- MCU: BB21F16G
- Weight: 3.6g
- BEC: NO
5.8G 200mW Micro VTX
- Antenna interface: IPEX (UFL)
- Power: PIT/25/100/200mW
- Mounting holes: 16*16mm
- VTX protocol: IRC Tramp
- Size: 17mm*27mm
- Weight: 1.6g
Downloads
Includes
- 1x SucceX Micro 15A Brushless ESC (w/plugs, M3 hole)
- 1x SucceX Micro F4 V2.1 Flight controller (M3 hole)
- 1x PIT/25/100/200mW VTX (M3 hole)
iFlight Support
iFlight FAQ - https://iflightrc.freshdesk.com/support/home
More Information
SKU | 11884 |
---|---|
UPC (GTIN) | 736952002389 |
Manufacturer | iFlight |
NDAA Compliant | No |
Mounting Pattern | 16x16mm |
Item Returns | This item can be returned |
