iFlight SucceX-E F4 V2.1 FC Stack + 45A 2-6S BLHeli_S 4-in-1 ESC (MPU6000)

More Views

iFlight SucceX-E F4 V2.1 FC Stack + 45A 2-6S BLHeli_S 4-in-1 ESC (MPU6000)

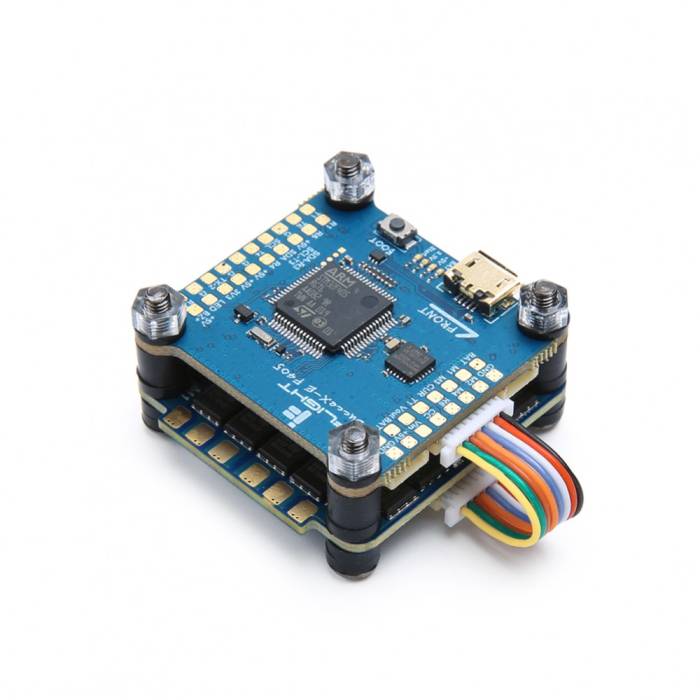

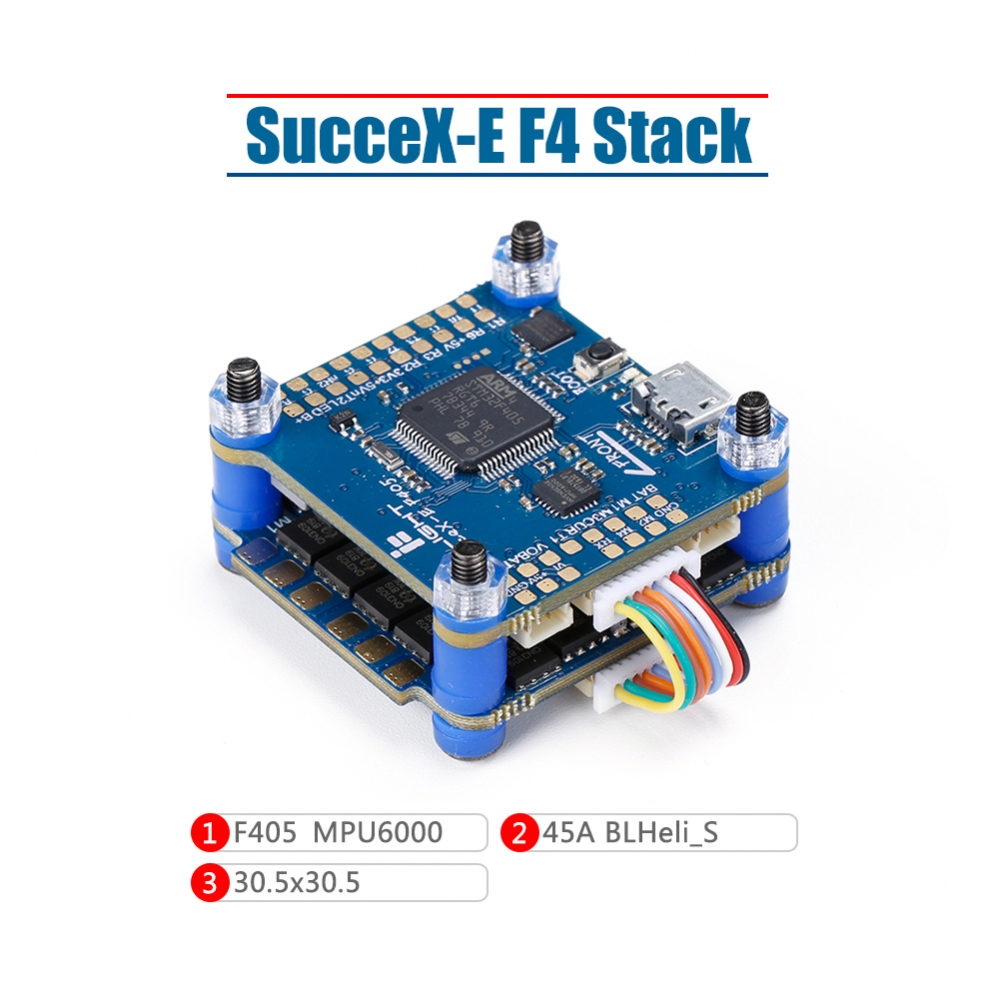

The SucceX-E F4 Stack by iFlight includes the advanced SucceX V2.1 F4 Flight Controller along with the SucceX 45A 4-in-1 ESC, which can handle up to 6S input voltage and push your FPV racer to the max.
Backorder
$107.99
OR
Description

The SucceX-E F4 Stack by iFlight includes the advanced SucceX Mini F4 Flight Controller along with the SucceX 45A 4-in-1 ESC, which can handle up to 6S input voltage and push your FPV racer to the max.

Specifications

SucceX-E F4 V2.1 Flight Controller

  • MCU:STM32F405
  • Gyro:MPU6000
  • Betaflight OSD:YES
  • Blackbox:8MB
  • 6X UARTs
  • 8 x Dshot/Proshot/Oneshot output
  • 8 x individual ESC power/ signal pads
  • 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
  • VTX telemetry: YES
  • WS2812 led Strip:YES
  • Baro: yes BMP280(I2C)
  • Beeper:YES
  • Input:2-6S(Max 8S)
  • BEC:5V / 3A
  • Firmware target : BETAFLIGHTF4
  • Mounting:30.5*30.5mm,φ4mm with Grommets φ3mm
  • Dimensions:36*36mm
  • Weight:6.6g

SucceX-E Mini 45A ESC

  • Dimension: 40*43mm
  • Mounting Holes: 30.5*30.5mm/Φ3mm
  • Weight:14.4g
  • Supports 2-6S Lipo input
  • STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
  • Current sensor: YES
  • BEC: NO
  • Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
  • Target: G-H-30 BLS 16.7
  • BLHeliSuite download

Includes

  • 1 x SucceX-E F4 V2.1 Flight controller
  • 1 x 45A 4in1 ESC
  • 1 x Wires bag
Additional Information
SKU 11886
Manufacturer iFlight
UPC (GTIN) 032733840042
