iFlight SucceX-D F7 TwinG V2.2 F722 Flight Controller - HD Version

The iFlight SucceX-D F7 V2.2 is a 30.5x30.5 flight controller that has an F722 MCU and is designed to work seamlessly with DJI’s HD FPV system.

In Stock

Regular Price: $71.99

Special Price $69.99

OR
Description

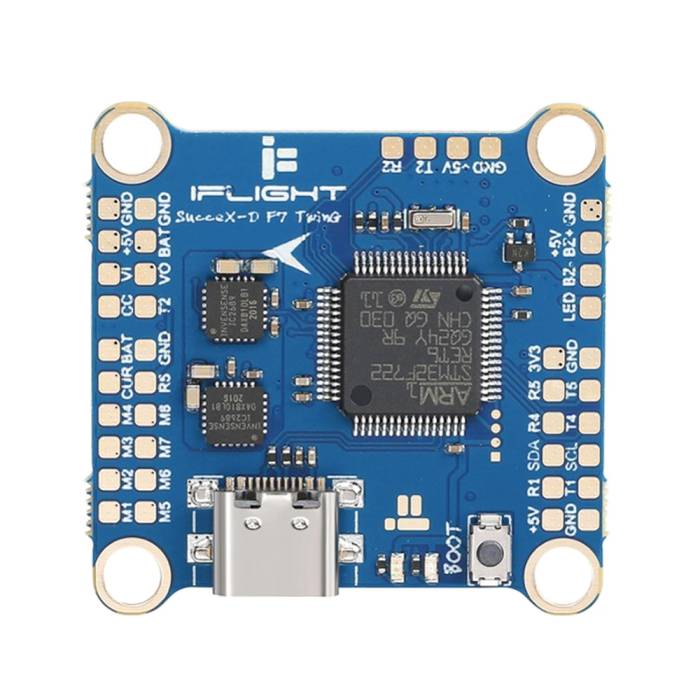

The iFlight SucceX-D F7 V2.2 is a 30.5x30.5 flight controller that has an F722 MCU. This FC is designed to work seamlessly with DJI’s HD FPV system. To make things even simpler, the DJI Air Unit can be plugged into the FC easily with the included wire harness. In addition, this flight controller uses a USB Type-C instead of Micro USB and therefore the same standard as your DJI module!

VIDEO: iFlight SucceX F7 TwinG Review | Sensor Fusion Tech

Features

  • Supports BLHeli pass-through for easy ESC upgrade and configuration.
  • Universal USB Type C connector instead of micro USB
  • Plug-and-Play. No need to solder tiny wires.)
  • Designed to support DJI Digital FPV.

CHANGELOG

  • Due to some global supply issues, the Barometer and Flash components were updated as well as some circuit improvements were implemented.
  • Before target BTFL4.2.4 changed to IFLIGHT_F722_TWING
  • Before BMP280 changed to DPS310

Specifications

  • Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ4mm
  • UART4 for GPS or other sensors that require a serial port
  • Uart: 4*UART(UART1, UART2, UART4, UART5)
  • Smart audio & Tramp VTX protocol supported
  • Input voltage: recommended 2-6S, MAX 8S
  • Firmware target: IFLIGHT_F722_TWING
  • UART2for VTX HD/Analog Telemetry
  • Inverter for SBUS input (UART2-RX)
  • UART5 for ESC Telemetry
  • Current sensor scale: 100
  • BEC: 5V 2.5A / 9V 2.5A
  • Dimensions: 36*36mm
  • Outputs: Dshot/PWM
  • Betaflight OSD: YES
  • UART1 for Receiver
  • RSSI input pad: No
  • MCU: STM32 F722
  • Gyro: ICM20689
  • Beeper pad: Yes
  • Motor outputs: 8
  • Blackbox: 32MB
  • USB: Type-C
  • Weight: 8.1g
  • UARTs: 4
  • Baro: NO

Includes

  • 1x iFlight SucceX-D F7 TwinG V2.2 F722 Flight Controller - HD Version
  • 3x Connecting Wires
  • 8x Dampers
Additional Information
SKU 16898
Manufacturer iFlight
UPC (GTIN) 764613337976
