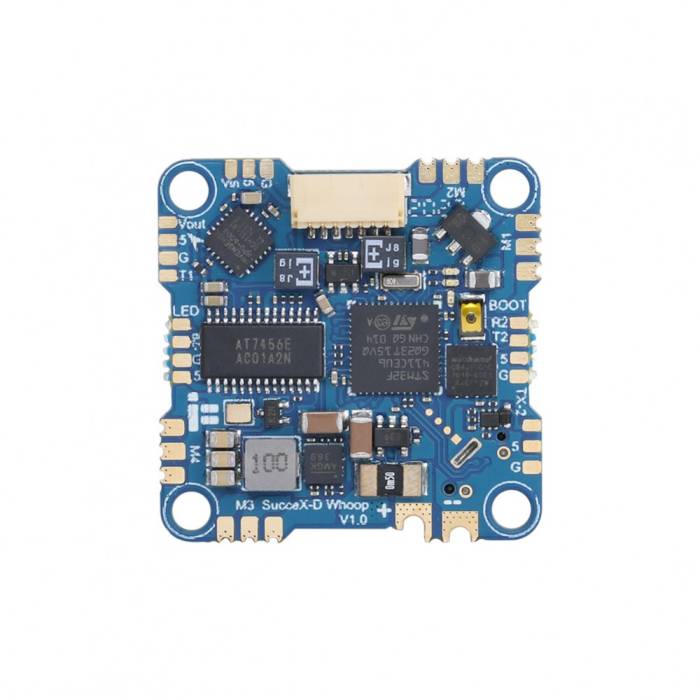

iFlight SucceX-D 20A Whoop F4 AIO Board (MPU6000)
iFlight SucceX-D 20A Whoop F4 AIO Board (MPU6000)
iFlight SucceX-D 20A Whoop F4 AIO Board (MPU6000)
This all-in-one board is perfect for ultra-light and micro HD builds that use whoop-style mounting. (25.5x25.5mm)
About this product
This 20A F4 AIO whoop style board from iFlight is plug n' play with the DJI Air Unit and Caddx Vista HD system.
This all-in-one board is perfect for ultra-light and micro HD builds that use whoop-style mounting. (25.5x25.5mm)
Features
- DJI Plug-and-Play - No need to solder tiny wires!
- BEC output: 5V 2A/10V 2A
Specifications
- Size: 30.5x30.5mm
- Mounting pattern: 25.5mmx25.5mm
- Connector: Micro-USB
- MCU: STM32F411
- Gyro: MPU6000
- Blackbox: 8MB
- BEC: 5V 2A
- INA pad: nR2
- Barometer: no
- Constant current: 20A, 25A
- Input: 2-4S
- Current sensor: yes
- BLHeli: BLHeli-S
- ESC Telemetry: no
- Firmware Target: IFLIGHT_F411_PRO
- ESC Firmware: G-H-30 BLS
Includes
- 1 x SucceX-D Whoop 20A F4 AIO Board
- 1 x Capacitor 470uF/16V
- 1 x XT30 18awg cable

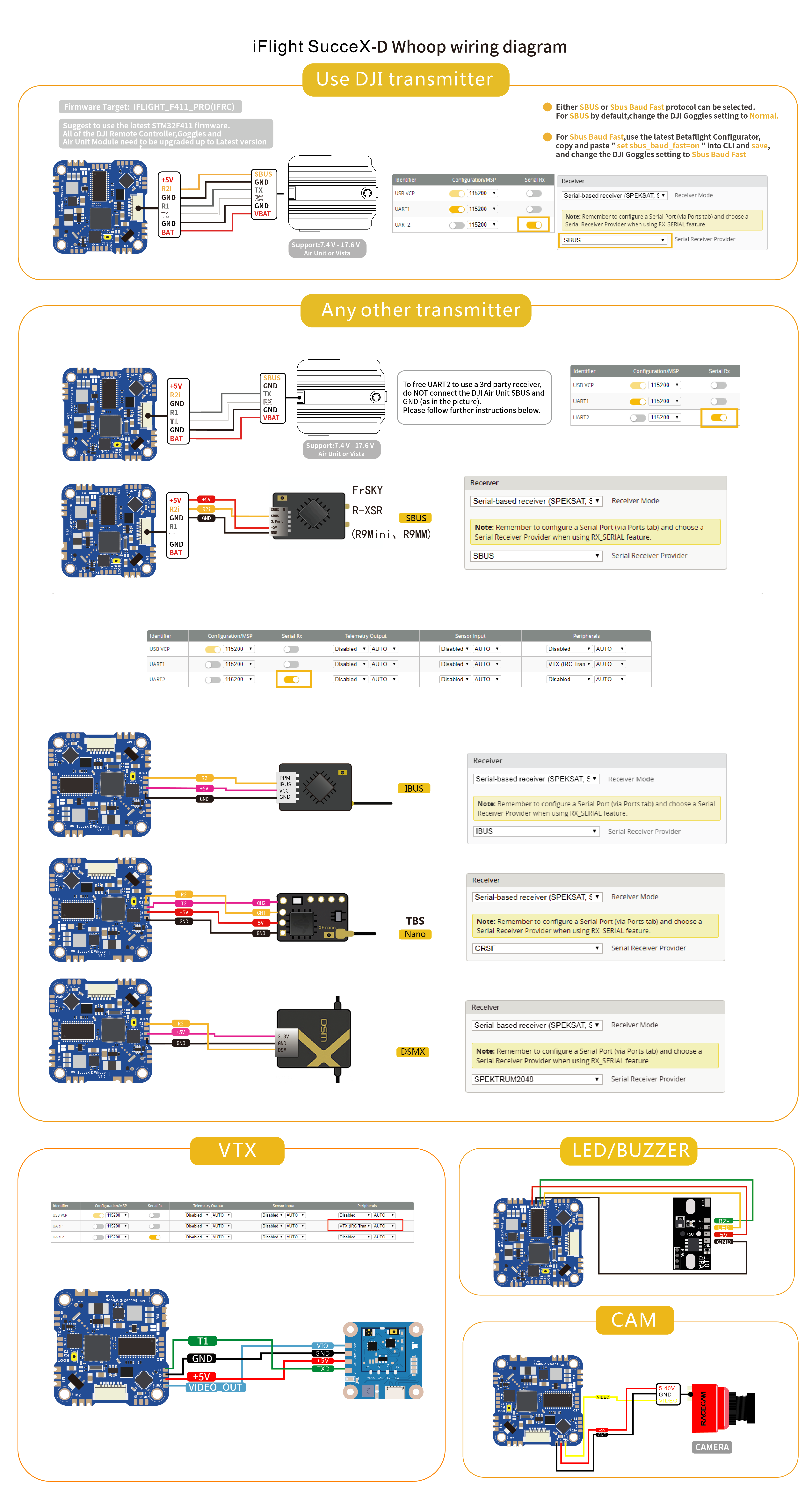

- 1 x Wire harness (plug&play) for DJI Air Unit
- 4 x M2 silicon grommets
- 4 x M2 damping balls
- 4 x M2*8mm Screws
iFlight Support
iFlight FAQ - https://iflightrc.freshdesk.com/support/home
More Information
SKU | 15560 |
---|---|
UPC (GTIN) | 789862858904 |
Manufacturer | iFlight |
Mounting Pattern | 25.5x25.5mm |
NDAA Compliant | No |
Item Returns | This item can be returned |
