iFlight ProTek25 2.5" 4S Analog CineWhoop - PNP

More Views

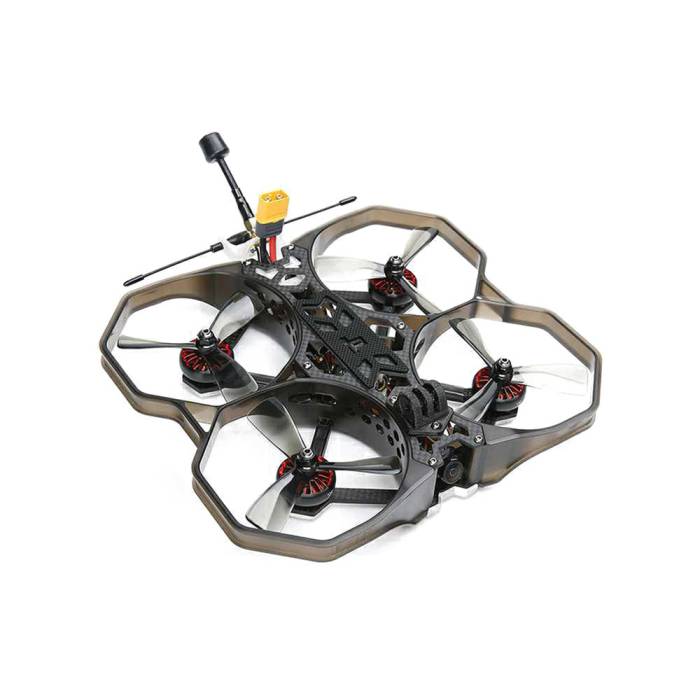

iFlight ProTek25 2.5" 4S Analog CineWhoop - PNP
The Protek25 CineWhoop has a longer flight experience and weighs less than the previous cinewhoops!
Backorder
$209.99
OR
Description

After the very popular 3-inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series release, iFlight continue to strive to increase performance by coming up with their master Protek series. The Protek CineWhoop has a longer flight experience and weighs less than the previous cinewhoops!

iFlight was able to increase the speed and thrust by 50% compared to its 3-inch predecessor which gives a lot more room for a lot more fun; as a result, the ProTek25 is equipped with the Butter Smooth XING 1404 5500KV Motors. It also features the SucceX-D 20A F4 Whoop AIO FC, SucceX Micro Force 5.8GHz 300mW VTX Adjustable, Nazgul 2525 propellers, and more!

Note: Battery, GoPro, and GoPro mount NOT included

Features

  • No Props or frame in view!
  • RaceCam R1 Mini 1200TVL 1.8mm 19*19mm FPV Camera
  • High-performance SucceX-D 20A Whoop F4 AIO Board to save weight and space
  • T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
  • Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
  • Low Resonance frame construction (Less Jello, more Cinematic footage)
  • Butter smooth XING 1404 5500KV motors
  • Pre-tuned with smooth freestyle settings

Pre-Tuned & Pre- Setup

  • Don't worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
  • To restore lost tunes or updates, please check out this  linked article: "Firmware/Factory Dumps"
  • Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
  • Please check out this linked article on "How to disable Angle-Mode, activate Acro-Mode"

Specifications

  • SucceX-D 20A Whoop AIO
  • Motor: XING 1404 5500KV
  • Wheelbase: 114mm
  • Body Size: 91*68.7mm
  • Bottom plate thickness: 3mm
  • Top plate thickness: 2mm
  • Top and bottom plate spacing: 24mm (aluminum standoff height)
  • Propeller size: 2.5 inch
  • FC pattern: 25.5*25.5mm / 20*20mmmm
  • FPV cam spacing: 20mm
  • Weight: 194.3g (without battery)

FC // SucceX-D 20A F4 Whoop AIO

  • Size:30.5*30.5mm
  • Mounting pattern:25.5*25.5mm/φ3mm
  • Connector:Micro-USB
  • MCU:STM32F411
  • Gyro:MPU6000
  • Blackbox:8MB
  • BEC output:5V 2A/10V 2A
  • INA pad:UART2 (nR2)
  • Barometer:no
  • Constant current:20A,25A(Burst)
  • Input:2-4S
  • Current sensor:yes
  • BLHeli:BLHeli-S
  • ESC Telemetry:no
  • Target:IFLIGHT_F411_PRO
  • ESC Firmware:G-H-30 BLS

VTX// SucceX Micro Force 5.8GHz 300mW VTX Adjustable

  • Power: PIT/25/100/200mW/300mW
  • Antenna interface: IPEX (UFL)
  • VTX protocol: IRC Tramp
  • Size: 13.5x14.5mm
  • Weight: 1.4g

Recommended Parts (Not Included)

  •  4S 850mAh Battery

Includes

  • Pre-built and tested Quadcopter
  • 1 x ProTek25 Frame
  • 1 x Albatross LHCP RP-SMA 5.8g antenna
  • 2 x Nazgul 2525 propeller (Set of 4 - Color May Vary)
  • 2 x iFlight Lipo Strap 15*200mm (Color May Vary)
  • 1 x Naked GoPro TPU bottom stand black (Naked GoPro Protector not included)
Additional Information
SKU 15054
Manufacturer iFlight
UPC (GTIN) 789862855750
