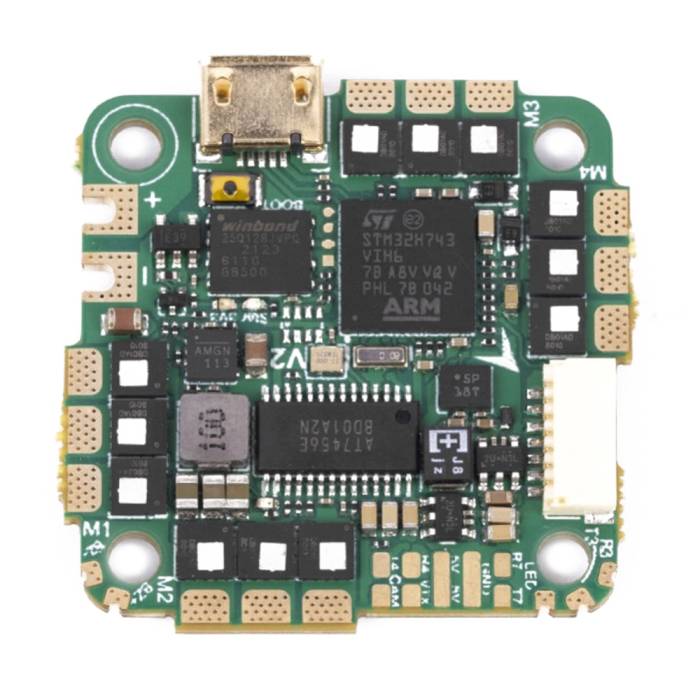

This iFlight Beast H743 V2 AIO Board has an H743 Flight controller and a 55A BLHeli_S ESC.

What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25x25 whoop size board? That would be crazy right? Well, iFlight just did it...

Get the new iFlight BEAST series AIO FC for your ultimate build! A future-proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight, etc. Lightweight with minimum size = minimum work. This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra-powerful Mosfets for almost any build. Solder your motor wires on and let's go!

VIDEO: iFlight Beast H7 AIO - A Whoop board for FULL 5"?

Features

• Onboard Barometer for possible long-range flights
• Digital and analog FPV compatibility
• DJI / Vista Digital System Plug & Play
• 16Mb Onboard Flash Blackbox
• DPS310 Barometer
• 5 UARTs

CHANGELOG FROM V1 to V2:

• RPM-filtering can be used with JazzMaverick firmware (BLHeli-M), and JESC.
• Circuit design optimized

Specifications

iFlight BEAST H7 FC

• UARTs: 5 (UART1, UART2, UART3, UART4, UART7)
• Mounting pattern: 25.5x25.5mm (3mm)
• FC Firmware: IFLIGHT_H743_AIO V2
• Blackbox: 16Mb Onboard Flash
• Dimensions: 32.5*32.5mm
• MCU: BGA-STM32H743
• BEC output: 5V 2.5A
• OSD: AT7456E
• Barometer: NO
• Gyro: BMI270
• Weight: 8.8g

55A 2-6S BLHeli_S ESC

• Mounting pattern: 25.5x25.5mm (3mm)
• ESC Firmware: G-H-30 BLS 16.7
• Dimensions: 32.5*32.5mm
• Constant: 55A / Burst: 60A
• Current Sensor: Yes
• Current scale: 100
• BLHeli: BLHeli-S
• Input: 2-6S LIPO
• Telemetry: no
• Micro-USB
• Uarts: 5

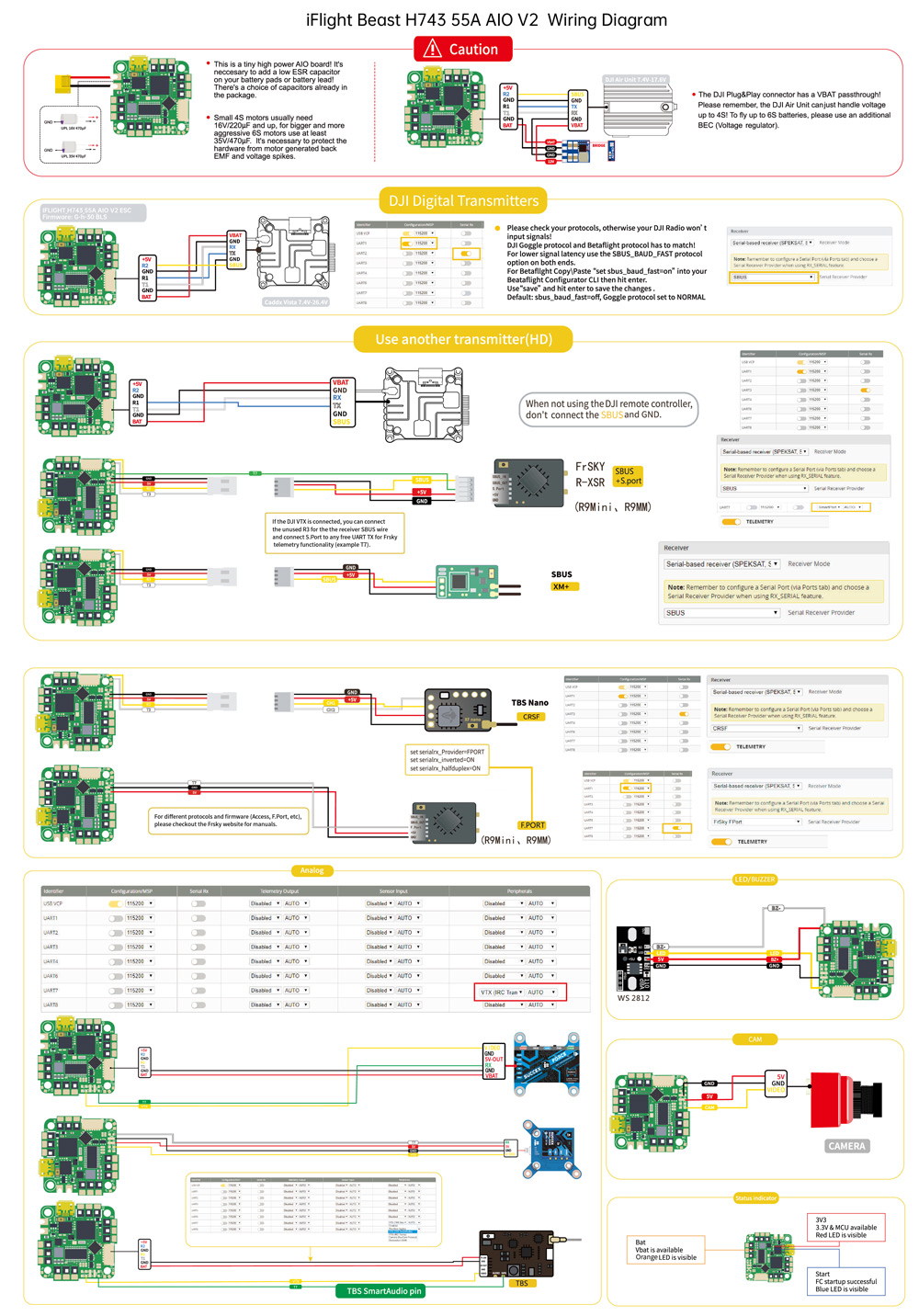

VOLTAGE REGULATION The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). Make sure not to plug in your DJI Air Unit directly when you're flying 6S because this would fry it! BEC to add for your 6S build can be found here: https://shop.iflight-rc.com/index.php?route=product/product&product_id=747

CAPACITORS Small motor 4S builds should usually need an additional capacitor of at least 16V/220uF, for 6S go up to 35V or even 50V. Bigger motors have a bigger current draw, higher voltage spikes, and more serious back EMF (motor braking, works as a generator). Make sure to add big enough or even bigger low ESR capacitors on the AIO battery pad or on your battery lead the more aggressive motors you fly. There's a choice of capacitors in the package, but it's never a bad idea to make sure to protect your board. Smaller boards have less capacitance which has to be covered with external capacitors, there's no way around it.

BAROMETER  Our new DPS310 Barometer has more accuracy than the older BMP280 before but can not be activated in Betaflight below 4.3.0 which is currently in the beta state (December 2020).

Includes

• 1x iFlight Beast H743 V2 AIO Board - H743 FC + 55A BLHeli_S ESC (BMI270)
• 1x 14AWG Silicone Cable Black 100mm
• 1x 14AWG Silicone Cable Red 100mm
• 8x .8mm black Heat shrink tube 10mm
• 1x XT30U 18AWG cable 70mm
• 1x XT60 12AWG cable 100mm
• 1x 1.0-7P cable 50mm-28mm
• 8x M2 Transparent Nylon Nut
• 1x Capacitor 470uF/16V
• 1x Capacitor 470uF/35V
• 4x M2 silicon grommets
• 1x 1.0-7P cable 50mm
• 8x M2*12mm screws
