Holybro Rice32 Micro Racing Flight Controller (Naze32 F3 with baro)

More Views

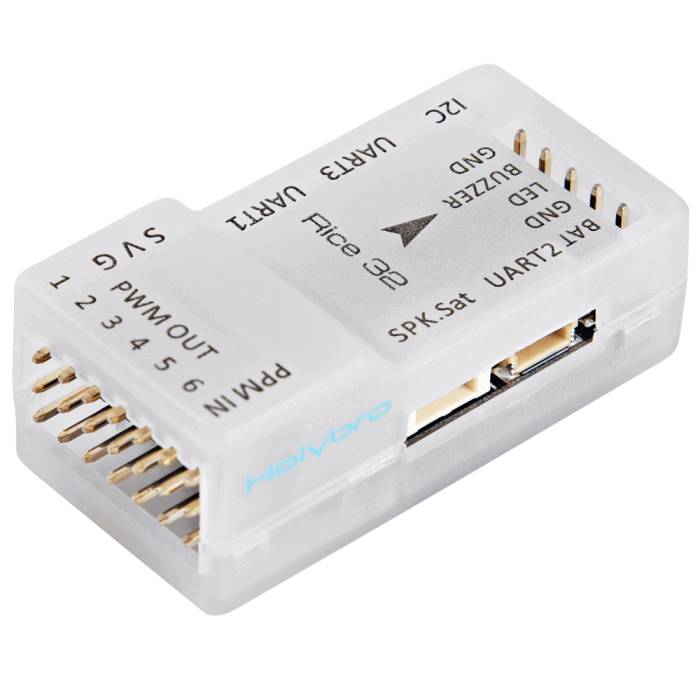

Holybro Rice32 Micro Racing Flight Controller (Naze32 F3 with baro)
Holybro Rice32 Micro Racing Flight Controller F303 (Naze32 F3 with baro)
In Stock

Regular Price: $39.99

Special Price $29.99

Description

Tiny space saving design-full NAZE capabilities in a package half the size and half the weight.Protective case - comes with custom case for protection as well as easy installation. Black box flight log recorder - high capacity on-board storage for easy tuning optimization, flight replay, and troubleshooting.

All plugs are located on the same side of the board for a more space-efficient design. 6 PWM 3Pin though-holes connectors for ESCs, Servos. Full support for OneShot ESCs.Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. Built-in inverters.

Download the Manual Here

Features

  • 30x18mm board
  • STM32F303 CPU with FPU 256kB flash
  • 8MB (64Mbit) High-Capacity Flash
  • MPU6050 accelerometer/gyro
  • MS5611 barometer (Deluxe only)
  • HMC5983 magnetometer (Compass Sensor, Deluxe only)
  • 4x 4pin JST-SH sockets (UART1/OSD,UART2/GPS,UART3/ SERIAL RX,I2C)
  • 5x 1pin though-holes for pin headers for VBAT,LED,Buzzer
  • 6x 3pin though-holes for pin headers for ESC/Servo connections
  • 1x 3pin though-holes for pin headers for PPM RC input
  • 1x 3pin JST-ZH sockets (sat.DSM)
  • 5 grams

Includes

  • 1x Rice32
  • 1x 2.54 3P cable
  • 5x 2.54 1P cable
  • 4x 4pin cable
  • 1x CP2105

Please note: The Rice32 is flashed with SPRACINGF3 cleanflight by default. When flashing, please use the SPRACINGF3.hex version of Cleanflight/Betaflight to flash this board (DO NOT flash the EVO or MINI versions as they will not work correctly)

Additional Information
SKU 4432
Manufacturer Holybro
UPC (GTIN) 715933170293
