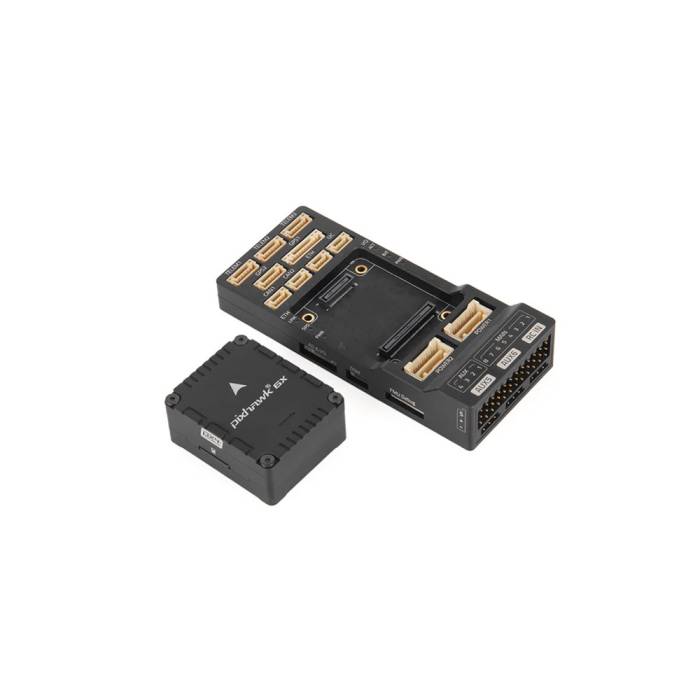

Holybro Pixhawk 6X FC v2A Standard Set - ICM-45686

The Holybro Pixhawk 6X FC Module v2A Standard Set is a compact, high-performance flight controller for advanced UAV applications. Featuring the ICM-45686 IMU sensor with BalancedGyro™ technology and a fast STM32H753 processor, it ensures precise, stable flight data and low-latency processing. Its modular design, advanced vibration isolation, and temperature-controlled IMU board provide robust, reliable operation in various conditions.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

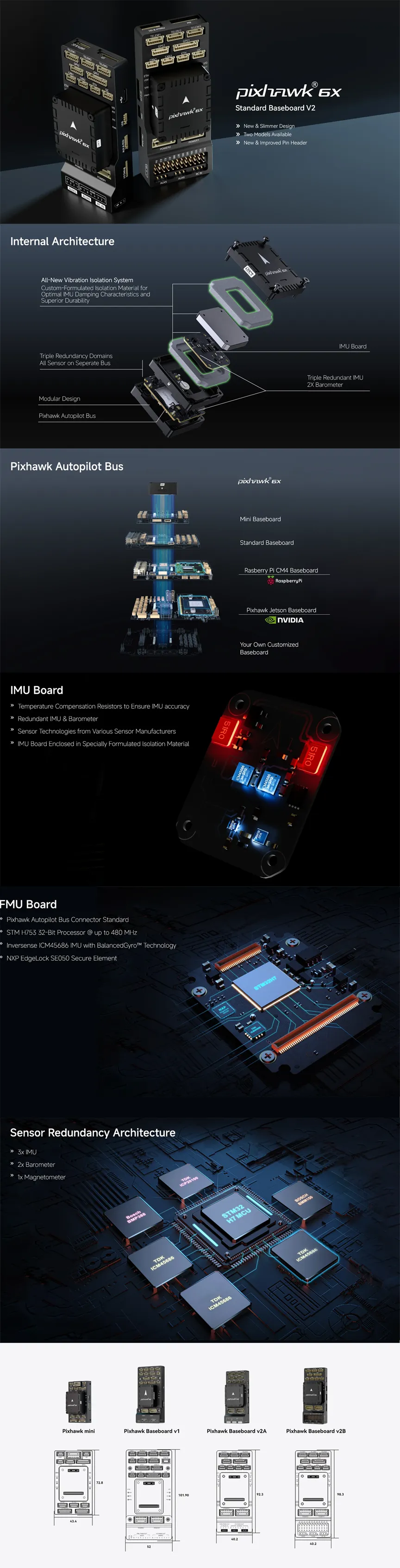

• Temperature-Controlled IMU Board
• Advanced Vibration Isolation
• High-Performance Processor
• Triple Redundancy Domains
• Modular Flight Controller
• Triple Redundancy
• Ethernet Interface

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

PROCESSORS & SENSORS

• FMU Processor: STM32H753

  • 32-bit Arm® Cortex®-M7, 480 MHz, 2 MB flash memory, 1 MB RAM
• IO Processor: STM32F103

  • 32-bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM
• On-Board Sensors (Current Revision, Rev8):

  • Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
  • Barometer: ICP20100 & BMP388
  • Mag: BMM150
• On-Board Sensors (Previous Revision, Rev 3/4):

  • Security: NXP EdgeLock SE050 Plug & Trust hardware secure element
  • Accel/Gyro: BMI088 / ICM-20649
  • Accel/Gyro: ICM-42688-P
  • Accel/Gyro: ICM-42670-P
  • Barometer: 2x BMP388
  • Mag: BMM150

ELECTRICAL DATA

• Voltage Ratings:

  • USB Power Input: 4.75–5.25V
  • Servo Rail Input: 0–36V
  • Max Input Voltage: 6V
• Current Ratings:

  • Combined Output Current Limiter for All Other Ports: 1.5A
  • Telem1 Output Current Limiter: 1.5A
• PWM Signal Voltage:

  • Default: 3.3V (Adjustable to 5V with an onboard resistor change)

MECHANICAL DATA

• Dimensions:

  • Standard Baseboard: 52.4 x 102 x 16.7 mm (Aluminum)
  • Flight Controller Module: 38.8 x 31.8 x 16.8 mm
  • Mini Baseboard: 43.4 x 72.8 x 14.2 mm
• Weight:

  • Standard Baseboard: 72.5g (Aluminum)
  • Flight Controller Module: 31.3g
  • Mini Baseboard: 26.5g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

• For other technical information, please visit https://docs.holybro.com/
• Latest info on Supported Firmware
• Power Module Setup Guide
• Pixhawk Baseboards Ports
• Sample Wiring Diagram
• Full Specification
• Dimensions
• Downloads

•   (Insert links such as manuals, firmware, etc)

• 1x Holybro Pixhawk 6X FC v2A Standard Set - ICM-45686
• 1x PM02D HV Power Module
• 1x Baseboard
• 1x Cable Set
