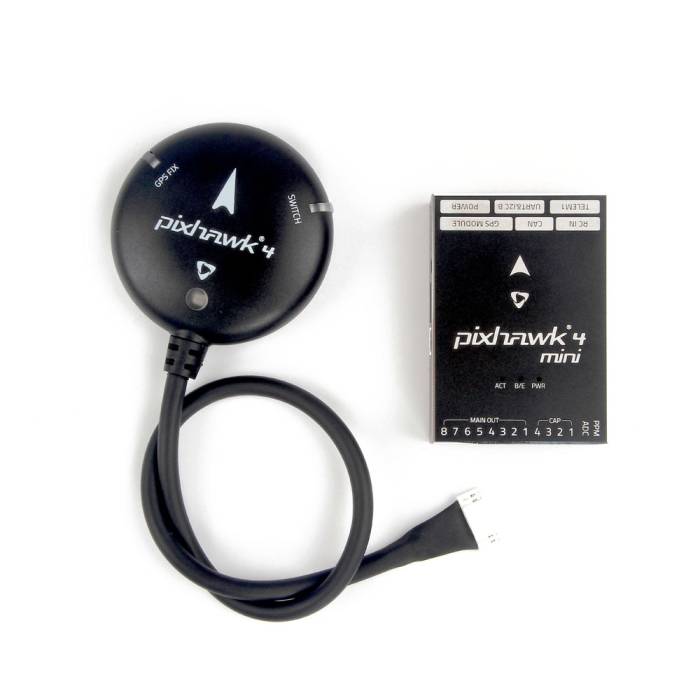

The Pixhawk® 4 Mini autopilot is designed for engineers and hobbyists who are looking to tap into the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while eliminating interfaces that are normally unused. This allows the Pixhawk 4 Mini to be small enough to fit in a 250mm racing drone.

Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.

Quick Summary

• Main FMU Processor: STM32F765
  • 32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
• On-board sensors:
  • Accel/Gyro: ICM-20689
  • Accel/Gyro: BMI055
  • Magnetometer: IST8310
  • Barometer: MS5611
• GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310
• Interfaces:
  • 8 PWM outputs
  • 4 dedicated PWM/Capture inputs on FMU
  • Dedicated R/C input for CPPM
  • Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
  • 3 general purpose serial ports
  • 2 I2C ports
  • 3 SPI buses
  • 1 CANBuses for CAN ESC
  • Analog inputs for voltage / current of battery
  • 2 additional analog input
• Power System:
  • Power Brick Input: 4.75~5.5V
  • USB Power Input: 4.75~5.25V
  • Servo Rail Input: 0~24V
  • Max current sensing: 120A
• Weight and Dimensions:
  • Dimensions: 38x55x15.5mm
  • Weight: 36g (FC)
• Other Characteristics:
• Operating temperature: -40 ~ 85°c

Includes

• Pixhawk4 mini *1
• Pixhawk4 GPS MODULE *1
• PM06 V2 Power Management Board *1
• I2C splitter Board *1
• 6 to 6 pin cable (power) *1
• 4 to 4 pin cable (CAN) *1
• 6 to 4 pin cable (Data) *1
• 6 to 4 pin and 4 pin "Y"cable *1
• 6 to 6 pin cable(Debug) *1
• PPM/SBUS out cable *1
• XSR receiver cable *1
• DSMX receiver cable *1
• SBUS receiver cable *1
• USB cable *1
• 'X'type folding pedestal mount *1
• 70mm & 140mm carbon rod stand off *2
• Foam Set *1
• Pixhawk4 mini Quick Start Guide *1

Resources

Some Tips:
PX4 Docs
Ardupilot Docs

Downloads:
Pixhawk 4 Mini Wiring Quick Start
Pixhawk 4 Mini Technical Data Sheet
Pixhawk4Mini_Pinouts
Pixhawk4-GPS-Quick-Start-Guide
