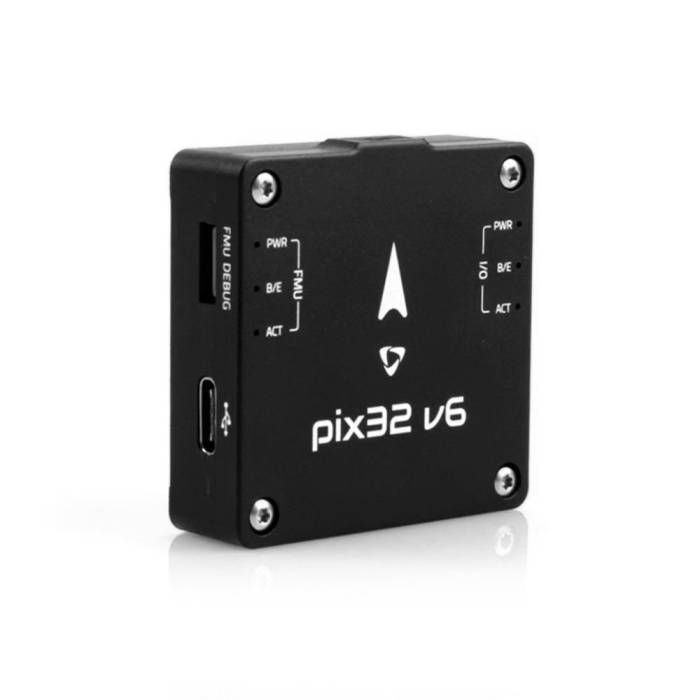

Holybro Pix32 V6 Modular Flight Controller
Holybro Pix32 V6 Modular Flight Controller
In Stock
About this product
The Holybro Pix32 V6 Modular Flight Controller is the latest update to the pix32 v5 flight controllers. This FC is a variant of the Pixhawk 6C and is comprised of a separate flight controller and carrier board which is connected by a 100-pin connector. The Pix32 V6 is designed for those pilots who need a high-power, flexible, and customizable flight control system.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Newly designed integrated vibration isolation system to filter out high-frequency vibration and reduce noise to ensure accurate readings
- IMUs are temperature-controlled by onboard heating resistors, allowing the optimum working temperature of IMUs
- High-performance STM32H743 Processor with more computing power & RAM
- New cost-effective design with a low-profile form factor
- Sensor technology from Bosch® & InvenSense®
- Arm® Cortex®-M7 core running up to 480 MHz
- 2MB flash memory
- High power
- 1MB RAM
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Processors & Sensors
- FMU Processor: STM32H743
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
- IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611
- FMU Processor: STM32H743
- Electrical data
- Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
- Current Ratings:
- Telem1 Max output current limiter: 1.5A
- All other port combined output current limiter: 1.5A
- Voltage Ratings:
- Mechanical data
- FC Module Connector Type: Panasonic-AXK5S-6S
- Dimensions: N/A
- Weight: N/A
- Interfaces
- 16- PWM servo outputs (8 from IO, 8 from FMU)
- 3 general purpose serial ports
- Telem1 - Full flow control, separate 1.5A current limit
- Telem2 - Full flow control
- Telem3
- 2 GPS ports
- GPS1 - Full GPS port (GPS plus safety switch)
- GPS2 - Basic GPS port
- 1 I2C port
- Supports dedicated I2C calibration EEPROM located on sensor module
- 2 CAN Buses
- 2 Debug port
- FMU Debug
- I/O Debug
- Dedicated R/C input for Spektrum / DSM and S.BUS, CPPM, analog / PWM RSSI
- Dedicated S.BUS output
- 2 Power input ports (Analog)
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
Includes
- 1x Holybro Pix32 V6 Modular Flight Controller
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19485 |
---|---|
UPC (GTIN) | 764613349382 |
Manufacturer | Holybro |
Mounting Pattern | N/A |
NDAA Compliant | No |
Item Returns | This item can be returned |
