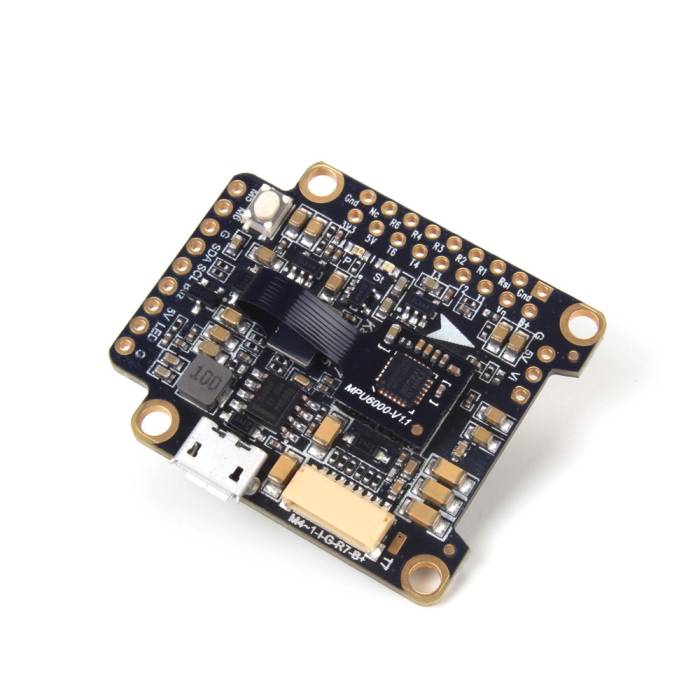

The Holybro Kakute F7 V1.5 flight controller makes it easy to build your multirotor. It integrates a flight controller (FC) and an on-screen display (OSD) in one. The Kakute F7 V1.5 layout makes it easy to wire up the other components of the multirotor while keeping the build neat and tidy.
IMU updated to MPU6000, Re-designed and more reliable damping structure.
- Supports Betaflight.
- Betaflight OSD. Change PIDs, adjust common configuration parameters, and change the video transmitter channel and power level, all using your transmitter sticks and goggles.
- Soft-mounting built-in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.
- High-performance / low-noise / high sensitivity IMU. MPU6000 with 6-axis gyro and accelerometer.
- Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
- Dedicated bootloader button for easy firmware flashing.
- Low-profile design fits into even very compact frames.
- Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on the “B+” pad only).
- Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 monitors voltage directly from the power supply.
- Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.
- Supports BLHeli pass-through for easy ESC upgrade and configuration.
- MCU: STM32F745 32-bit processor
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- Current Sensor: Approximately 130 amps of maximum measurable value
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 6 hardware UARTS (UART1,2,3,4,6,7)
- All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvent hack”.
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- TF card for Blackbox logging
- Dimensions: 35x41x7mm (includes foam-mounted gyro board in height)
- Mounting Holes: Standard 30.5mm square to the center of holes
- Weight: 8g
- 1 x FC board
- 1 x Foam
- 1 x JST SH 8pin 150mm cable
PX4 stack support
Ardupilot stack support
- Additional Information
SKU 9059 Manufacturer Holybro UPC (GTIN) 721248871923 Static Block blank
