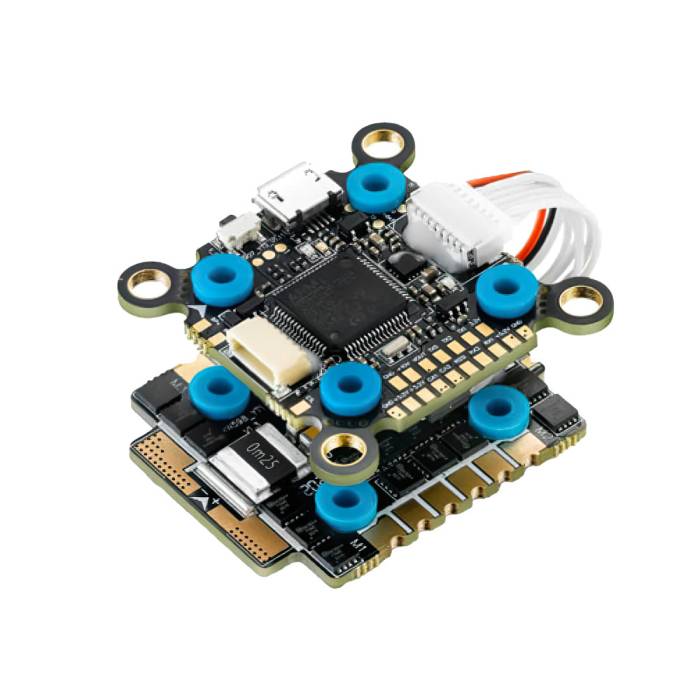

Hobbywing XRotor Stack - F7 FC + 45A 3-6S BLHeli_32 4-in-1 ESC - 20x20

The Hobbywing XRotor Stack, equipped with an STM32F722 MCU and a high-sensitivity ICM20602 six-axis motion sensor, offers powerful computing abilities and fast processing speed. It supports bidirectional D-Shot digital throttle communication and features an integrated OSD chip for simple, convenient adjustments via FC software and radio. The on-board, large-capacity flash memory chip records and stores extensive flight logs, aiding users in aircraft debugging based on flight data.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Large-Capacity Flash Memory Chip
• High-Sensitivity ICM20602 Sensor
• Bidirectional D-Shot Support
• Plug-and-Play Compatibility
• Compact 20x20mm Design
• Facilitates Easy Debugging
• Compact and Lightweight
• Equipped with a 45A ESC
• On-Board Flash Memory
• Integrated OSD Chip
• STM32F722 MCU
• Ensures Reliable
• Easy Installation
• 45A HW ESC

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

FLIGHT CONTROLLER

• Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
• Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• Programming via: Betaflight/Cleanflight-configurator
• Firmware: HOBBYWING_XROTORF7CONV
• Compatible with (Multirotors): Quadcopters
• Current Monitoring: Supported
• Voltage Monitoring: Supported
• FC Programming: Supported
• BEC: 5V @ 1.5A; 10V @ 1.5A
• External Buzzer: Supported
• LED Control: Supported
• Size: 32x32mm
• OSD: Built-in
• Weight: 3.3g

ESC

• Input Wires: Red—14AWG—100mm / Black—14AWG—100mm
• Application: FPVs with 130–280mm diagonal wheelbase
• Model: XRotor 45A 4in1 (20x20) BLHeli-32 DShot1200
• Connectors (In/Out): XT60 plug enclosed with the package
• ESC Programming: Stick programming, BLHeliSuite32
• Firmware: Hobbywing_XRotor_BLHeli-32 Version
• Output Wire: No wires but solder tabs
• Weight/Size: 12g / 40x33x5mm
• Throttle Calibration: Supported
• Mounting Pattern: 20x20mm
• Continuous Current: 45A x 4
• Motor Rotation: Supported
• OneShot Mode: Supported
• LiPo Power Input: 3S–6S
• Burst Current: 60A x 4
• Timing: Supported
• BEC Output: No
• DEO: Supported

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Hobbywing XRotor 45A 3-6S BLHeli_32 4-in-1 ESC
• 1x Hobbywing XRotor F7 Flight Controller
