Hobbywing XRotor 40A 3-6S 4-in-1 BLHeli_32 ESC

More Views

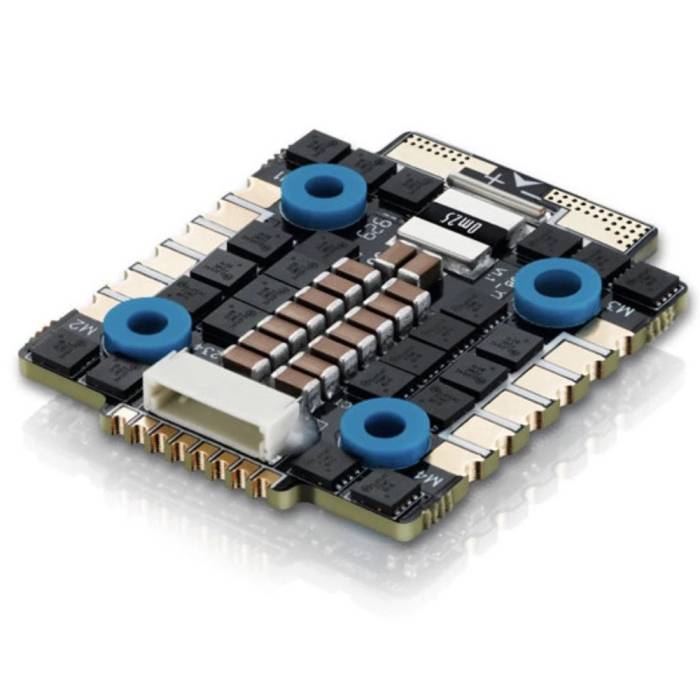

Hobbywing XRotor 40A 3-6S 4-in-1 BLHeli_32 ESC

The Xrotor 40A 4-in-1 ESC features a high-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance!

In Stock
$59.99
OR
Description

The Hobbywing XRotor 40A 3-6S 4-in-1 BLHeli_32 is a high power equipped ESC. Featuring high-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance. The XRotor 40A will surely be one of the premier choices for racers looking for nothing but the best in regards to performance!

Features

  • High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.
  • BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
  • All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
  • The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environment
  • The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
  • Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
  • The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.

Specifications

  • Model: XRotor 40A 4in1 (20x20) BLHeli-32 DShot1200
  • Application: FPVs with 130-280mm Diagonal Wheelbase
  • LiPo Power input: 3S-6S
  • Cont.Current: 40Ax4
  • Burst Current: 60Ax4
  • BEC Output: NO
  • Input wires: Red-14AWG-100mm/ Black-14AWG-100mm
  • Output Wire: No wires but solder tabs
  • Connectors (In/Out): XT60 plug enclosed with package.
  • Weight/Size: 12g/40x33x5mm
  • Mounting Pattern: 20x20mm
  • Firmware: Hobbywing_XRotor_BLHeli-32 Version
  • Throttle Calibration: Supported
  • ESC Programming: Stick Programming, BLHeliSuite32
  • DEO: Supported
  • OneShot Mode: Supported
  • Timing: Supported
  • Motor Rotation: Supported

Manual

Includes

  • 1 x Hobbywing Xrotor 40A 4-in-1 (20x20) BLHeli-32 DShot1200 ESC

Additional Information
SKU 11334
Manufacturer Hobbywing
UPC (GTIN) 032733833907
