Hitec HS-65MG+ Metal Gear Analog Micro Servo
$35.99
In Stock
Only left for same day shipping. Order now!

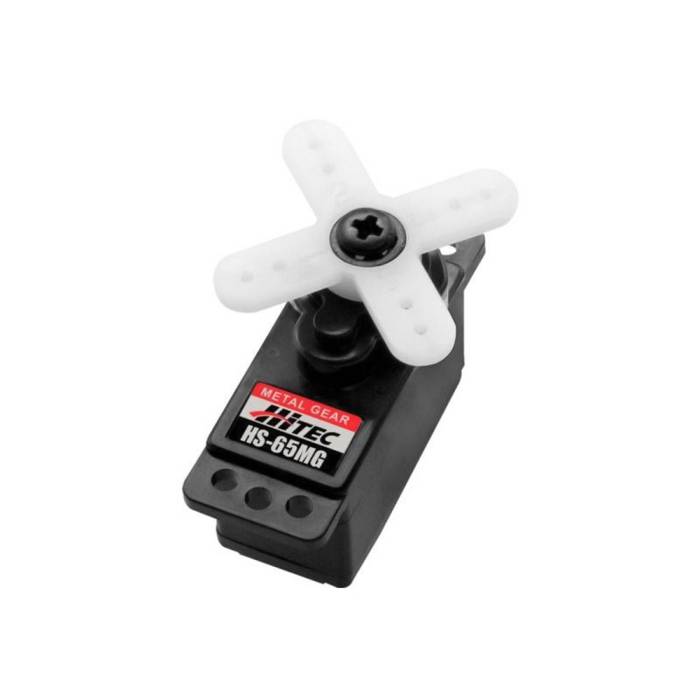

Hitec HS-65MG+ Metal Gear Analog Micro Servo
Considered one of the most powerful servos in the micro class, the Hitec HS-65MG+ Metal Gear Analog Micro Servo features a top-ball bearing for long life and positive centering.
About this product
Considered one of the most powerful servos in the micro class, the Hitec HS-65MG+ Metal Gear Analog Micro Servo features a top-ball bearing for long life and positive centering. With 31 ounces/inches of power at 6 volts, it is an excellent choice for higher- performance micro helicopters, sport planes, and 1/18 scale cars.
Features
- High-Performance Three-Pole Motor
- Rugged Metal Gear for Added Durability
- Ball Bearing-Supported Output Shaft
- High-Efficiency Neodymium Magnet Motor
Specifications
- Operating Voltage Range: 4.8V ~ 6.0V
- Speed (@ 60°): 0.14 ~ 0.11 sec
- Torque:
- @4.8V: 24.99oz/in (1.8kg/cm)
- @60.V: 30.55oz/in (2.2kg/cm)
- Current Draw at Idle: 8 mAh
- No Load Operating Current Draw: 220 mAh
- Stall Current Draw: 1200 mAh
- Dead Band Width: 5 µs
- Dimensions: 0.92 x 0.45 x 0.94in (23.6 x 11.6 x 24.0mm)
- Weight: 0.44oz (12.5g)
- Circuit Type: HT7003 Analog SMT
- Motor Type: 3 Pole Metal Brush Neodymium
- Bearing Type: Top Ball Bearing
- Connector Gauge (AWG)/Strand Count: 28/20
Includes
- 1x Hitec HS-65MG+ Metal Gear Analog Micro Servo
More Information
| SKU | G24785US1Z |
|---|---|
| UPC (GTIN) | 723326381201 |
| Manufacturer | HiTEC |
| Country of Manufacture | Philippines |
| NDAA Compliant | No |
