HGLRC Zeus35 AIO - F4 FC + 35A BLS 3-6S 4-in-1 ESC

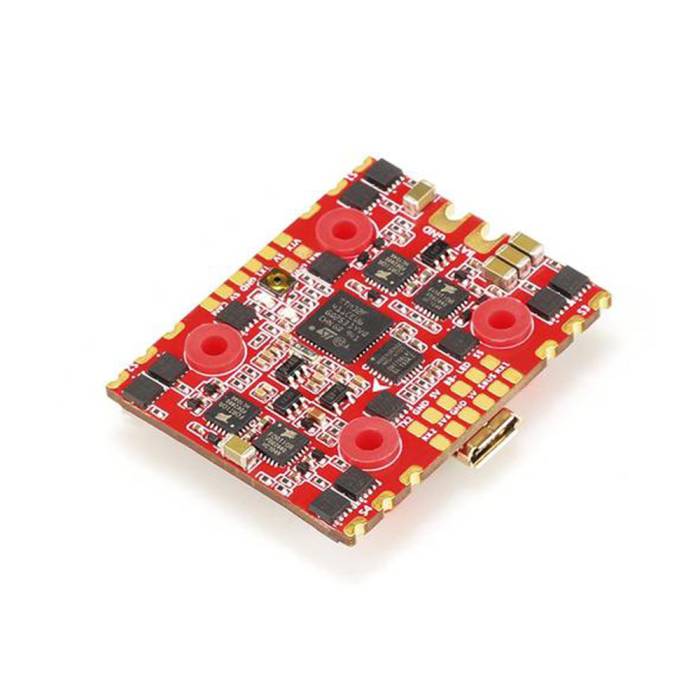

The HGLRC Zeus35 AIO supports up to 6S and features an F4 FC, 35A BLS 3-6S 4-in-1 ESC, HGLRCF411 firmware, STM32F411 CPU, MPU6000, two UARTS, and many other cool features!
Share

About this product

The HGLRC Zeus35 AIO supports up to 6S and features an F4 FC, 35A BLS 3-6S 4-in-1 ESC, HGLRCF411 firmware, STM32F411 CPU, MPU6000, two UARTS, and many other cool features!

Note: The red version supports both M2 and M3 screws

Specifications

  • Usage:for 100mm-250mm Frame Kit
  • FC Firmware:BF HGLRCF411(HGLRC)
  • Installing Hole:20X20mm.M2/M3

F411 FC + 35A BLS ESC

  • Input Voltage:3-6S
  • FC Firmware:BF HGLRCF411(HGLRC)
  • ESC Firmware: BLS
  • Installing Hole:20x20mm/M2/M3
  • Dimensioms:40x32mm
  • Weight:10g

F411 Flight Controller

  • CPU:STM32F411
  • MPU: MPU6000
  • OSD: Support
  • BEC:5V/2A
  • LED: Support
  • BlackBox:16M
  • UARTS:2
  • UART1:uses the VTX/DJI
  • UART2:uses the Receiver

35A BLS 4in1 ESC

  • Current Sensor: Support
  • Constant Current:35A
  • Peak Current:40A（10s）

Recommended Parts (Not Included)

  • Motor:1408/1407/1306/1106
  • Propeller:2-5 Inch

Includes

  • 1 x Zeus35 AIO Flight Controller

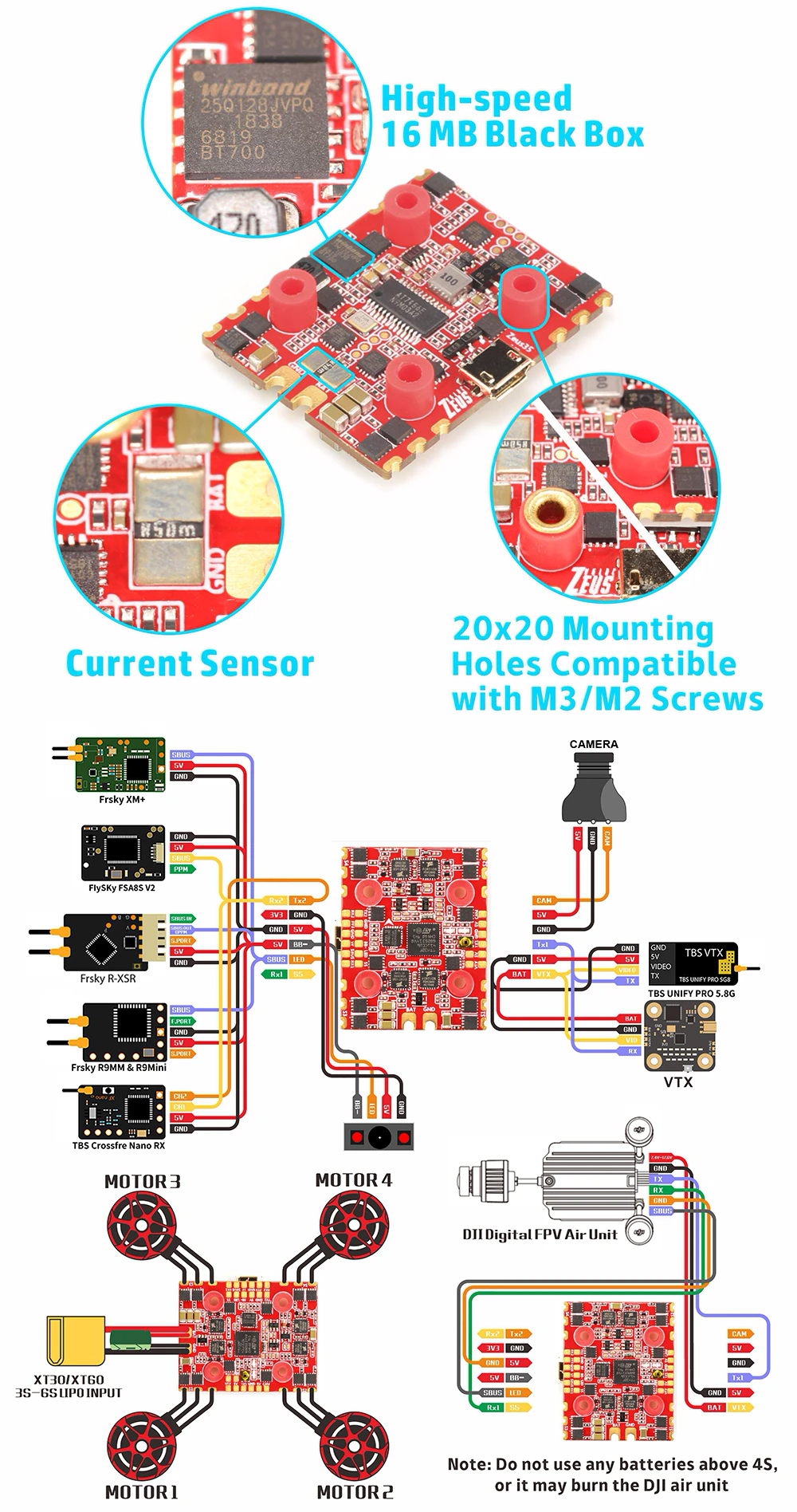

How to use GPS on FD411 FC and Zeus35 AIO board with receiver and VTX by using soft serial



More Information

SKU 14644
UPC (GTIN) 789862856047
Manufacturer HGLRC
Mounting Pattern N/A
NDAA Compliant No
