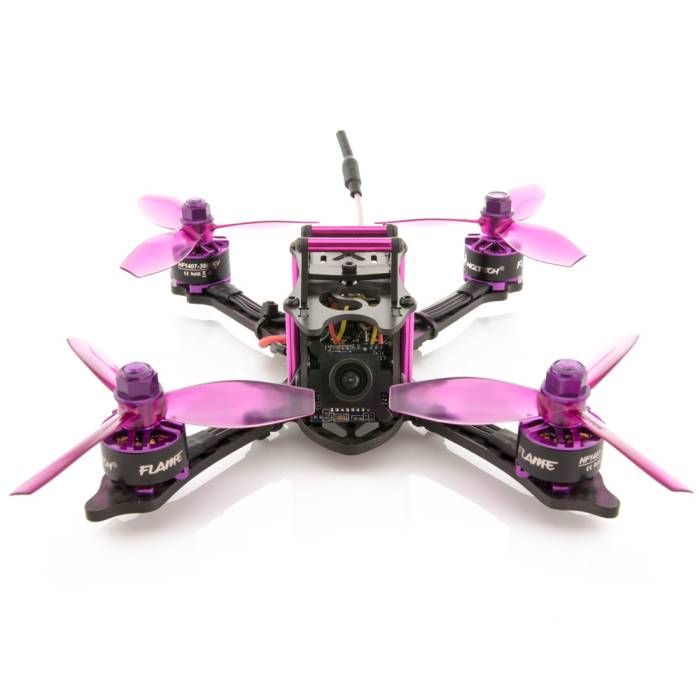

The HGLRC XJB 145mm brushless FPV racing drone features a bigger wheelbase intended for both indoor and outdoor flight. The 5.8G 48CH video transmitter provides more options for channels for the real-time video feed and output power selection. The module is separate from the flight controller and ESC, which is good for heat dissipation. You are able to enjoy flying at a breathtaking speed because the drone supports up to 112A continuous current and has four HF1407 3600KV high thrust motors. There is also a mount for a flight recording camera such as a GoPro Session or similar camera on top of this tiny frame!

Features

• Ultralight 145mm carbon fiber frame with 3mm thick chassis, resistant to crash
• Advanced F4 V2 flight control system with OSD, VTX, and 4-in-1 BLHeli - S 38A DShot ESC
• More powerful HF1407 3600KV micro brushless motor + 3052 Gemfan three-blade propeller
• 5.8G real-time FPV, 600TVL CCD camera with 2.3mm 120-degree FOV lens
• LED+BB Buzzer

Specifications

• Wheelbase: 145mm
• Arm Plate Thickness: 3mm
• Bottom Plate Thickness: 3mm
• Side Plate Thickness: 1.5mm
• Weight: Frame: 29g - RTF: 200g (no battery)

Micro F4.V2 Flight Control Board ( D-Shot Version)

• Micro F4 Flight Control Board ( D-Shot Version)
• MPU: MPU6000-SPI
• CPU: STM32F405RGT6, dual 8K.
• Black Box: Flash 16M
• Input Voltage: 2-4S LiPo
• Built-in Betaflight OSD to adjust PID
• BEC Output: 5V@3A
• Support Subs/PPM/DSMX receiver
• Size: 25x25mm board, 20mm mounting holes (M2)
• Weight: 3.7g
• Battery Connector: XT-30

38A 2-4S Blheli_S BB2 4 in 1 ESC

• Input Voltage: 2-4S Lipo battery
• Constant Current: 33A
• Peak Current: 38A
• BEC Ouput: NO
• Firmware: BLheli_S 16.5
• Size: 27x27mm (main board), 32x32mm ( including pad)
• Installing Hole: 20x20mm, M2
• CPU: SILABS EFM8BB2 48MHz
• MOS Tube: TOP QUALITY MOSFET
• Firmware: Betaflight 16.5
• Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse

HGLRC XJB-TX20 V2 Mini FPV Transmitter

• Output power: PIT/25mW/100mW/200mW/350mW switchable
• BAT: 7-26V,BEC 5V-1A
• 240mA----350mW
• Video system: NTSC/PAL
• Antenna: IPEX
• Frequency: 5.8GHz
• Size: 24*24mm(L*W),Hole:20*20mm
• Weight: 2.4g

Includes

• 1x HGLRC 145mm Carbon Fiber Frame Kit
• 1x HGLRC F4 V2 AIO OSD BEC Flight Control Board
• 1x HGLRC 38A Blheli_S 4 In 1 ESC
• 1x HGLRC TX20-V2 Transmitter
• 1x HGLRC XJB-ELF CAMERA
• 4x HGLRC HF1407-3600KV
• 6x Gemfan 3052 Propellers
• 4x Extra Motor Mounting Screw bags (4pcs ea. bag)
• 1x Lipo Strap
