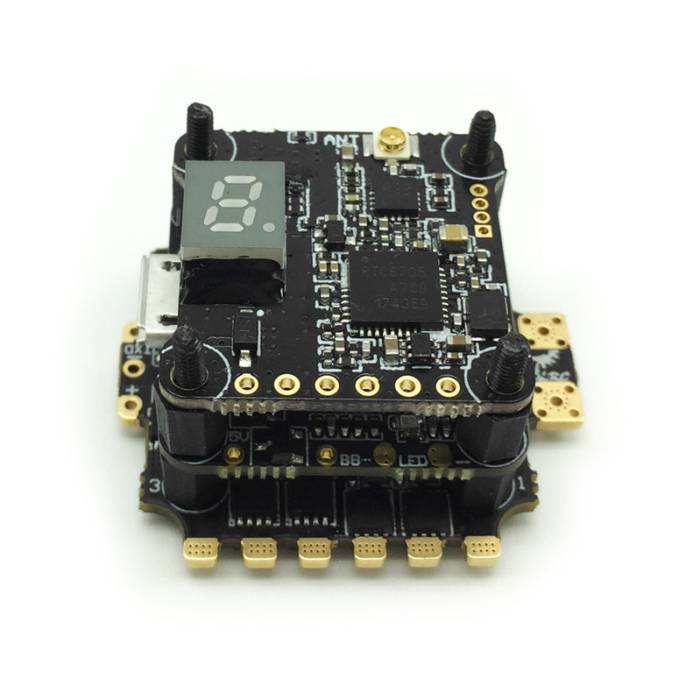

HGLRC XJB F440-TX20 V2 Stack - F4 Flight Controller - 40A Blheli32 ESC - TX20 V2 VTX

HGLRC XJB F440-TX20 V2 Stack - F4 Flight Controller - 40A Blheli32 ESC - TX20 V2 VTX

Out of Stock

Only left for same day shipping. Order now!
HGLRC XJB F440-TX20 V2 Stack - F4 Flight Controller - 40A Blheli32 ESC - TX20 V2 VTX
F4 generation core for micro class FPV racers - 20mm F4 FC + 4-in-1 40A BLHeli32 ESC and a switchable FPV VTX 20x20mm.

About this product

HGLRC has released many V2 upgrades to their already stellar mini stacks. HGLRC F440-TX20 Tower FC includes advanced F4 Omnibus Flight Controller with extremely powerful 40A 4 in 1 ESC, that is great for 3-5S application, which will allow you to push your FPV quadcopter to sky-high limits and advanced switchable 25/100/200/350mW V2 VTX will let you comply with all applicable laws in your area as well as for video signal to penetrate through trees and walls for crystal clear picture.


Micro F4 V2 Flight Control Board ( D-Shot Version)

  • MPU: MPU6000-SPI
  • CPU: STM32F405RGT6, dual 8K.
  • Black Box: Flash 16M
  • Input Voltage: 2-5S Lipo
  • Built-in Betaflight OSD to adjust PID
  • BEC Output: 5V@3A
  • Size: 25x25mm board, 20mm mounting holes (M2)
  • Weight:3.7g
  • Support Subs/PPM/DSMX receiver

40A 2-5S Blheli32 4 in 1 ESC

  • Input Voltage: 3-5S Lipo battery
  • Constant Current: 40A
  • Peak Current: 50A
  • BEC Output: NO
  • Firmware: 32bit with Blheli32 firmware
  • Size: 27x27mm (mainboard) 32x34mm ( including pad)
  • Installing Hole: 20x20mm, M2
  • Weight: 5.2g
  • CPU: STM32F051
  • MOS Tube: Top Quality Mosfet
  • Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse

HGLRC XJB-TX20 V2 Mini FPV Transmitter

  • Output power: PIT/25mW/100mW/200mW/350mW switchable
  • Control mode: BFOSD control(RX)/button
  • BAT: 7-26V,BEC 5V-1A
  • 240mA----350mW
  • Video system: NTSC/PAL
  • Antenna: IPEX
  • Frequency: 5.8GHz
  • Size: 24*24mm(L*W),Hole:20*20mm
  • Weight: 2.5g

vtx channels


    • 1x F4 V2 OSD BEC Flight Control Board
    • 1x 40A Blheli32 bit 4 In 1 ESC
    • 1x XJB-TX20.V2 Mini FPV Transmitter
    • Mounting hardware

    More Information

    SKU 8170
    UPC (GTIN) 704817762754
    Manufacturer HGLRC
    Item Returns This item can be returned
