The HGLRC Sector X5 FR is a 5" Freestyle FPV Frame with Wide X configuration. Take your freestyle flights to the next level with this durable frame! This frame features quick swap arms for easy electronic fixes and CNC aluminum side plates.

VIDEO: HGLRC Sector X5/D5 Frames Overview

Features

• A fixed power outlet for convenience and protecting your power cable from cutting by propellers
• CNC aluminum side plates combined with 3D printed parts to make your drone look dope!
• Dust-proof straps covering both sides to better protect your rig and keep them clean
• Replaceable arms for quick disassembly without taking apart the whole frame
• Wide X Configuration

Specifications

• FC Mounting Hole: 30.5mmx30.5mm/20x20mm M3
• Top and middle plate space: 25mm
• Model: Sector X5 Freestyle Frame
• Motor Mounting Hole :M3X16
• Camera mount :19 x 19mm
• Material :3K Carbon Fiber
• Brand Name: HGLRC
• Bottom Plate: 2.5 mm
• Wheelbase: 210mm
• Size: 189x178mm
• Middle plate: 2 mm
• Top plate: 2.5 mm
• Weight: 120g
• Type: 5-inch

Recommended (Not Included)

• STACK: ZEUS F745 MINI
• FC: ZEUS F722 MINI
• Camera:19 x 19mm
• Motor: 22XX / 23XX
• Propeller :5 inches

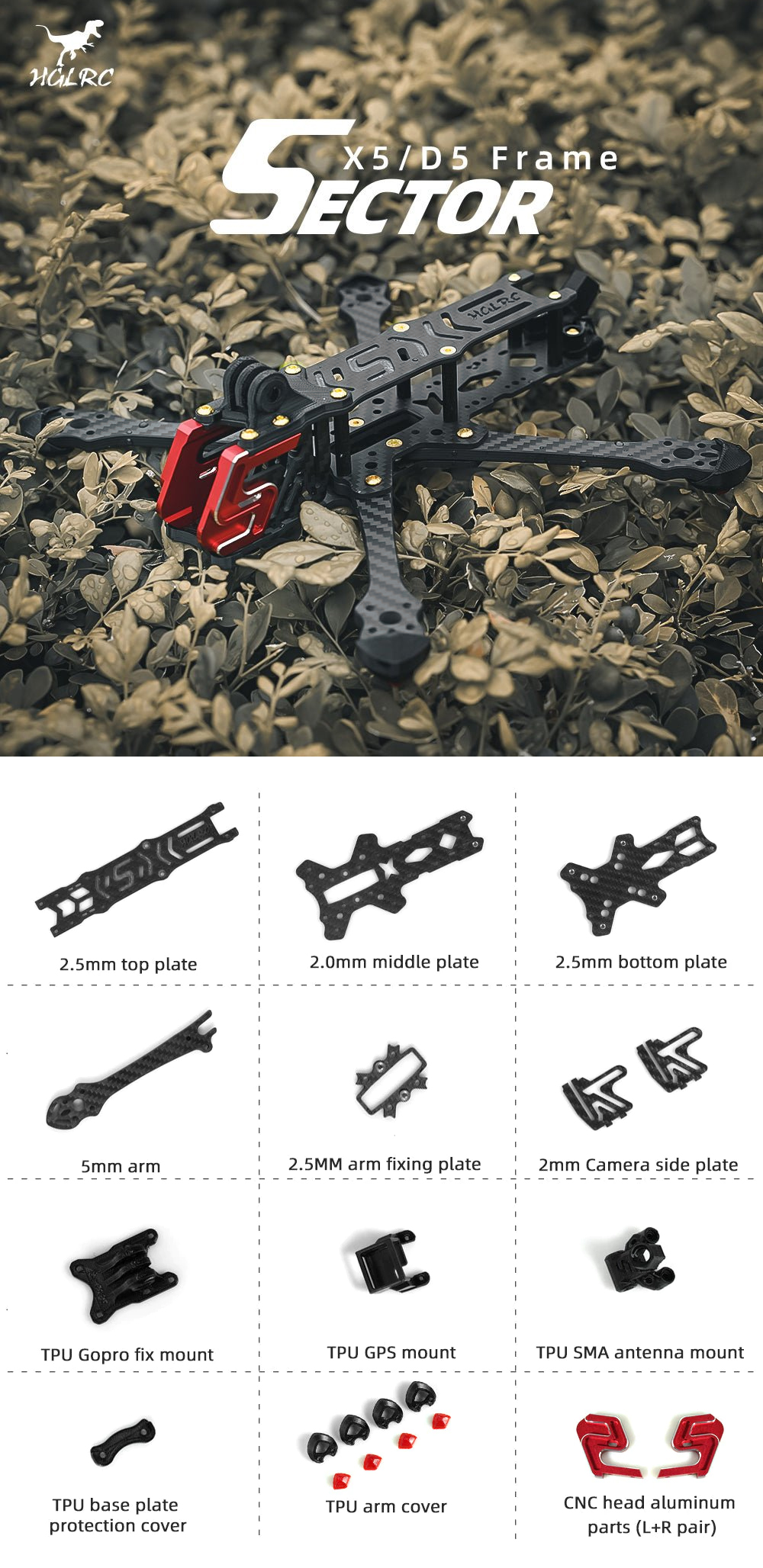

Includes

• 1x Frame head CNC aluminum parts (one pair)
• 1x TPU black base plate protection cover
• 1x TPU black SMA antenna mount
• 1x TPU Black GOPRO fix mount
• 1x Screw Accessory package
• 2x Battery straps 20x250mm
• 4x TPU black arm protection
• 2x 2mm Camera side panel
• 1x TPU black GPS mount
• 1x 2.5mm Arm fixing plate
• 1x Battery Anti-slip pad
• 1x 2.5 mm Base plate
• 1x 2 mm Middle plate
• 1x 2.5 mm Top plate
• 4x TPU Red footpad
• 4x 5mm Arm
