HGLRC FD435-VTX 20x20 Stack - F4 Mini Flight Controller + 35A BL32 4-in-1 ESC

More Views

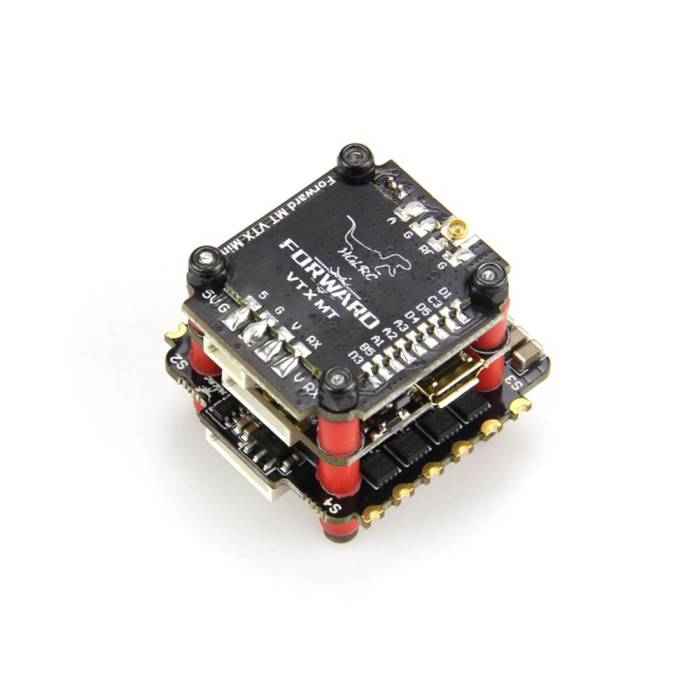

HGLRC FD435-VTX 20x20 Stack - F4 Mini Flight Controller + 35A BL32 4-in-1 ESC

The HGLRC FD435-VTX 20x20 Mini Stack comes with an advanced F4 Flight Controler, a powerful 35A 4-in-1 ESC, and the MT 5.8Ghz VTX allowing you to push your FPV quad sky-high, quite literally.



  • 20x20 Mounting

  • F4 FC

  • 35A 3-6S

In Stock
$56.99
OR
Description

The HGLRC FD435-VTX 20x20 Mini Stack comes with an advanced F4 Flight Controler, a powerful 35A 4-in-1 ESC, and the MT 5.8Ghz VTX allowing you to push your FPV quad sky-high, quite literally.

Specifications

  • Brand name: HGLRC
  • Item name: FD435-VTX Stack
  • Usage: for 120mm-250mm Frame Kit
  • Weight: 18.4g

HGLRC FD F4 Mini Flight Controller

  • CPU: STM32F405R6T6
  • MPU: MPU6000-SPI
  • Input Voltage: 2-6S Lipo
  • Built-in Betaflight OSD to adjust PID
  • BEC Output: 5V@3A
  • Size: 25.0x25.0mm
  • Installing Hole: 20X20mm, M2
  • Weight:4.7g

HGLRC FD 35A 4in1 BL32 3-6S ESC

  • Input Voltage: 3-6S Lipo
  • Constant Current: 35A
  • Peak Current: 40A(10s)
  • BEC Output: NO
  • Size: 36x36mm
  • Installing Hole: 20x20mm,M2
  • Weight: 6.5g
  • CPU:STM32F051
  • MOS Tube: TOP QUALITY MOSFET
  • Support Damped Mode:
  • DSHOT1200/600/300/150/Oneshot125/42, MultiShot

MT VTX mini 600MW

  • Output power: PIT/25/100/200/400/600mW
  • Input:DC 5V
  • Antenna: IPEX
  • Weight:3.9g

Diagram

Includes

  • 1 x FD F4 Mini Flight Controller
  • 1 x FD 35A 4in1 ESC
  • 1 x MT VTX mini 600MW

Additional Information
SKU 11625
Manufacturer HGLRC
UPC (GTIN) 032733836724
