HGLRC FD413-VTX 16x16 Stack - F411 FC + 13A 2-4S BLS 4-in-1 ESC

More Views

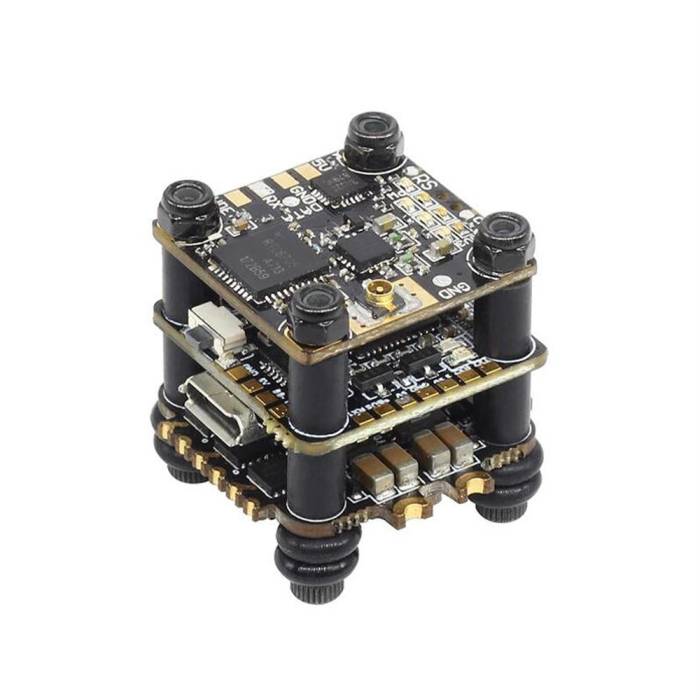

HGLRC FD413-VTX 16x16 Stack - F411 FC + 13A 2-4S BLS 4-in-1 ESC
The HGLRC FD413-VTX 16x16 Stack comes with an advanced F411 Flight Controler and a powerful 13A 4-in-1 ESC, and 5.8Ghz VTX allowing you to push your FPV quad sky-high, quite literally.
In Stock
$46.99
OR
Description

The HGLRC FD413-VTX 16x16 Stack comes with an advanced F411 Flight Controler and a powerful 13A 4-in-1 ESC, and 5.8Ghz VTX allowing you to push your FPV quad sky-high, quite literally.

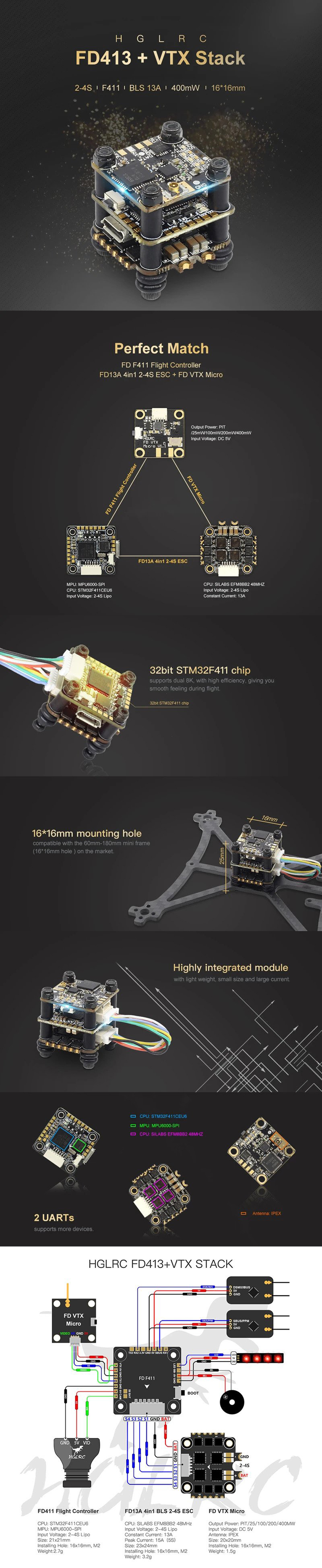

Tons of features in a 16x16mm stack!

Specifications

  • Usage: for 60mm-180mm Frame Kit
  • Weight: 10.8g

HGLRC Forward FD411 Flight Controller

  • Item Name: FD411 Flight Controller
  • MPU: MPU6000-SPI
  • CPU: STM32F411CEU6
  • Black Box: NO
  • Input Voltage: 2-4S Lipo
  • Built-in Betaflight OSD to adjust PID
  • BEC Output: 5V 2A
  • Size: 21x21mm
  • Installing Hole: 16x16mm, M2
  • Weight:2.7g
  • Support SBUS/PPM/DSMX/iBUS receiver

HGLRC Forward FD13A 4in1 BLS 2-4S ESC

  • Item Name: FD13A 4in1 2-4S ESC
  • Input Voltage: 2-4S Lipo
  • Constant Current: 13A
  • Peak Current: 15A(5S)
  • BEC Ouput: NO
  • Size: 23x24mm
  • Installing Hole: 16x16mm, M2
  • Weight: 3.2g
  • CPU: SILABS EFM8BB2 48MHZ
  • MOS Tube: TOP QUALITY MOSFET
  • Support Damped Mode: DSHOT600/300/150/Oneshot125/42, MultiShot,PWM

HGLRC FD VTX Micro 400mW

  • Item Name: FD VTX Micro
  • Output Power: PIT/25mW/100mW/200mW/400mW Switchable
  • Input Voltage: DC 5V
  • PIT---------0dBm------70mA
  • 25mW-----14dBm-----150mA
  • 100mW----20dBm-----210mA
  • 200mW----23dBm-----280mA
  • 400mW----26dBm-----360mA
  • Installing Hole: 16x16mm, M2
  • Size: 20x20mm
  • Antenna: IPEX
  • Weight: 1.5g

Includes

  • 1 x FD411 Flight Controller
  • 1 x FD13A 4in1 BLS ESC
  • 1 x FD VTX Micro
Additional Information
SKU 11628
Manufacturer HGLRC
UPC (GTIN) 032733836717
