HGLRC DVR-VTX AIO Stackable Video Transmitter w/ DVR

More Views

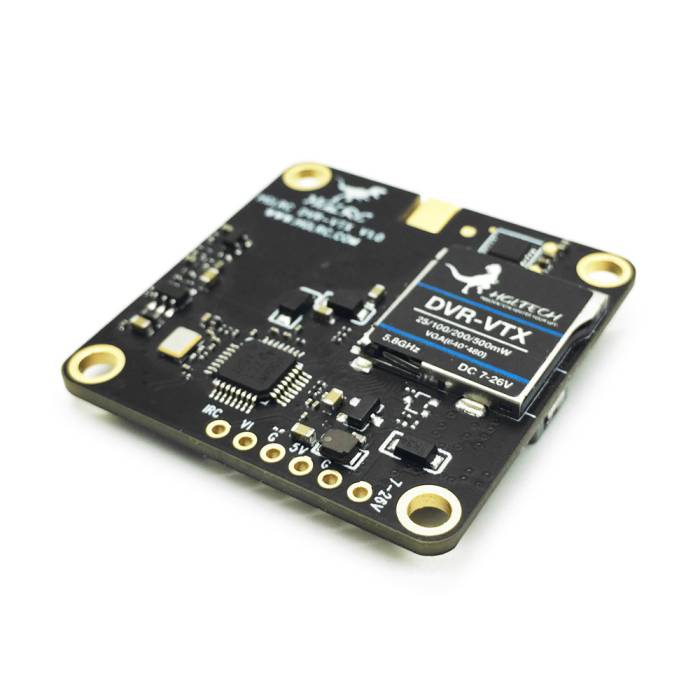

HGLRC DVR-VTX AIO Stackable Video Transmitter w/ DVR
HGLRC has combined two common features into one board with their DVR-VTX AIO. Record your flights with audio with the onboard DVR and configure your VTX with SmartAudio support.
In Stock
$39.99

Only 4 left

OR
Description

The HGLRC DVR-VTX AIO is a 30.5x30.5 stacking video transmitter with a built-in DVR, one of the first VTXs to have a built-in DVR. It has 5 adjustable power outputs ranging from PIT/25mW/100mW/200mW/500mW. It supports SmartAudio so you can control it via your Betaflight OSD, or manually with its onboard button.

The built-in microphone is connected to the DVR so your video will also have audio! A pretty nifty board that many will find useful, combining two commonly found boards into one 30x30mm board.

Specifications

  • Video IN Format: NTSC/PAL
  • Compress Format: MJPEG
  • Records Video Size: VGA(640*480)
  • Records Frame Rate: 24 Frames
  • Max Support TF Card: 32G
  • Audio IN: MIC
  • AV OUT: Read from TF Card
  • Automatic recording time of video: 5 mins one video
  • Storage: Stop once record is full
  • Video Operation: Short press button(start/save)
  • Transmitter Output power: PIT/25mW/100mW/200mW/500mW switchable
  • Control mode: BFOSD control(RX)/button
  • Video system: NTSC/PAL
  • Antenna: MMCX
  • Frequency: 5.8GHz 5 bands 40 channels, US Legal
  • Size: 36*36mm,Hole: 30.5*30.5mm
  • Weight: 7.9g

Includes

  • 1x DVR-VTX AIO
  • 1x MMCX-SMA Pigtail
  • 1x Cable
  • Standoffs
Additional Information
SKU 8906
Manufacturer HGLRC
UPC (GTIN) 704817764239
Frequencies 5.8GHz
Reviews

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
