The Hawkeye Firefly X Lite HD Camera provides amazing value for getting high-quality video in a naked-style action camera! The Firefly X Lite FPV Camera is compatible with G3 universal stabilizer, it can shoot 4K 60FPS high-definition video, comes with a 3S-6S battery buck module, built-in Gyro 4.0 EIS algorithm, supports image flip function, can be powered from the balance lead of your drone's battery, and only weighs 34 grams! Much lighter than a full-size camera like GoPro.

This action camera is equipped with a racing drone bracket, compatible with a universal base (GoPro and SMO 4K), supports two power supply modes, 2p port power supply, USB port power supply, and you can use the remote control to take your photos/videos.

2021.10.13 - Firmware update V2.0 out!

Video

Features

• 4K 60FPS
• Only 34g weight
• Ambarella H22S85 chipset
• Gyro 4.0 Image Stabilization
• WiFi + BT4.1 Remote control
• SONY IMX377 12 Mega WDR CMOS

Specifications

• Resolution:4K60FPS/2.7K60FPS/2.5K60FPS(Default 4k60FPS,can be switched freely)
• Lens Diameter:17.5MM
• it can compatible with the GoPro filter!
• Image flipping function: Yes
• RC and AV OUT: Yes
• Kind of MicroSD card supported: U3(Note: Low-speed sd card will cause unstable)
• Maximum size of MicroSD card supported:512G
• Camera size:61×38×26 MM
• Weight:34g
• Compressed format: H.264
• Video format:MP4
• Diaphragm: F=2.8,7G1IR LENS
• Angle: Diagonal 150 degrees
• Working Voltage:5V
• Power supply:1A
• WiFi distance:10M
• Waterproof: No
• Six-axis Gyro video stabilization: Yes

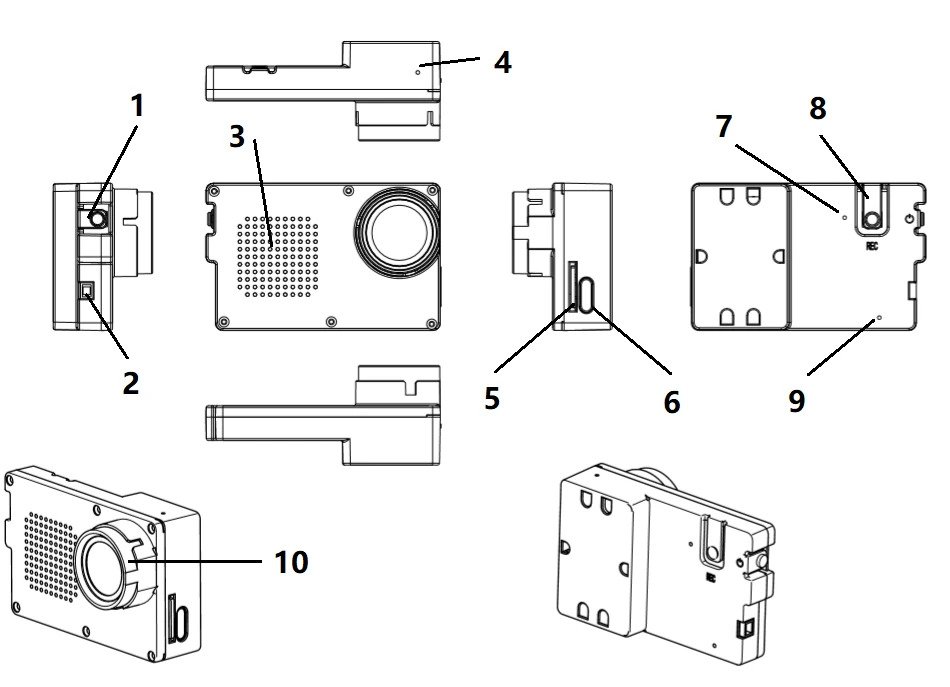

Diagram

1. POWER BOTTON；
2. Type CUSB port；
3. Video indicator（flash when recording；
4. record button；
5. WiFi indicator（Light on when WiFi is on;
6. Lens；
7. 2p power port(5V IN)；
8. Cooling hole；
9. Microphone hole；
10. TF card slot；

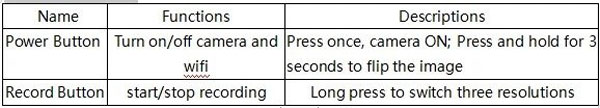

Button Functions

Operating instructions

Use the 5V power supply on the drone to supply power to the camera, and then press the power button to turn on the camera, and the buzzer will ring three times quickly. When the camera is turned on, the default resolution of the camera is 4k60 frames. If you want to switch the resolution, you can press and hold the Record Button for 3 seconds to switch.

The switching sequence is:

• 4k60 frame (two beeps of the buzzer)
• 2.7k60 frame ultra-wide-angle (three beeps of the buzzer)
• 2.5k60 frame on anti-shake (four beeps of the buzzer)

If the camera needs to flip 180 degrees to install, press the power button for 3 seconds after the camera is turned on, the camera will turn on the image flip function. After the camera is turned on, press the power button briefly to turn on the WiFi function, and then use the mobile phone to connect with the FIREFLY app. You can set camera time and parameters, preview and download videos.

Includes

• 1 x Firefly X Lite Action Camera
• 1 x Bracket
• 1 x Step-down cable
• 1 x 2P cable
• 1 x USB cable
• 1 x Light shield
• 1 x User Manual
