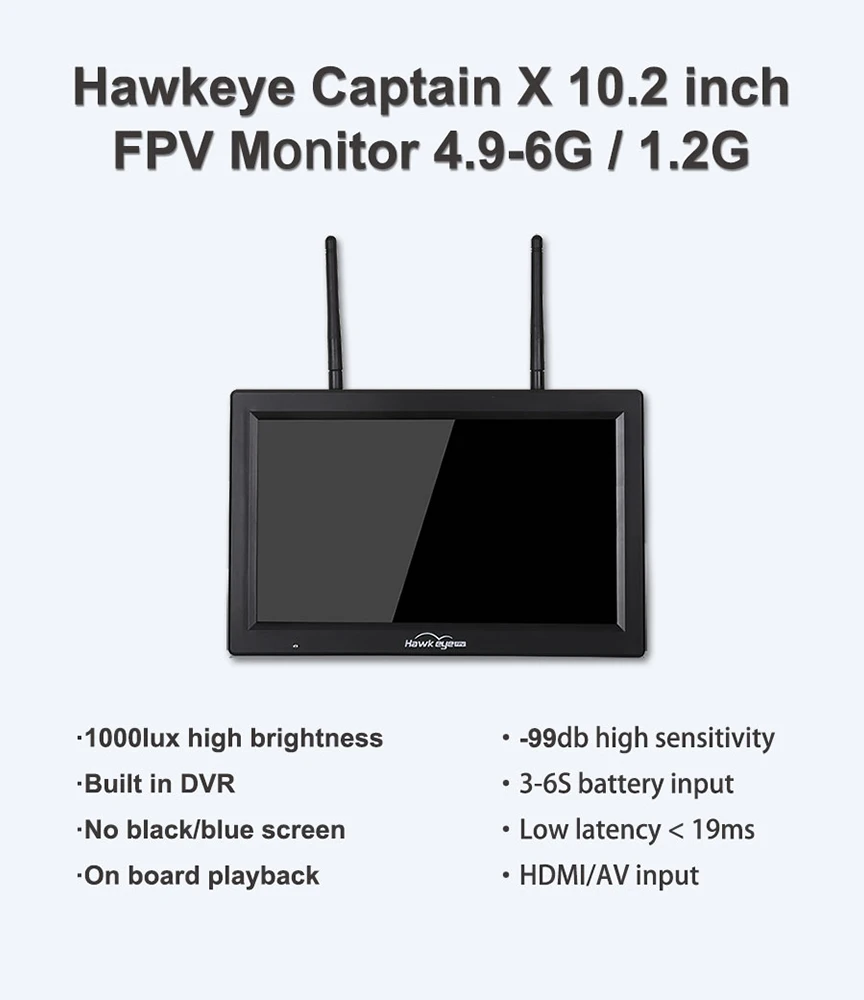

Hawkeye Captain X 10.2" FPV Monitor

The Hawkeye Captain X FPV Monitor features a 10.2-inch high-brightness screen, offering crystal-clear visuals even in direct sunlight. With dual receivers, a built-in DVR, and compatibility with 3-6S batteries, it’s perfect for capturing and replaying your FPV adventures. Its SMA connector antenna and switchable PAL/NTSC format ensure seamless performance with various devices.

• 10.2-inch High Brightness Screen
• Switchable PAL/NTSC Formats
• SMA Connector Antenna
• Dual Receivers and DVR
• 3-6S Battery Support
• 4.9G, 5.8G, 6G 96CH wide range frequency, -99db high sensitivity.
• Low-atency video.
• HDMI / AV input
• AV output
• Programmable 8 CH
• Tracking mode

DIMENSIONS

• Monitor Size: 265mm × 170mm × 31mm
• Packing Size: 300mm × 200mm × 60mm
• Matching Antenna Interface: SMA
• Display Resolution: 1024×600
• 5.8G Sensitivity: -99dB
• Gross Weight: 1.05kg

POWER SUPPLY

• Working Voltage: DC 3S-6S battery
• TF Card Supported: Max 64GB
• Resolution: D1/VGA/QVGA
• 5V (input power >12V): 1A
• Video: (PAL/NTSC), HDMI
• Color System: PAL/NTSC
• Output Signal: Video: 1A
• Response Time: 10ms
• Brightness: 1000 Lux
• Current: 1.0A @3S
• Aspect Ratio: 16:9
• Backlight: LED

• Manual

• 1x Hawkeye Captain X 10.2" FPV Monitor
• 2x 5.8GHz Antenna
• 1x Female XT60 Plug to Male DC Connector Cable
• 1x 3.5mm Connector Cable
• 1x Bracket
