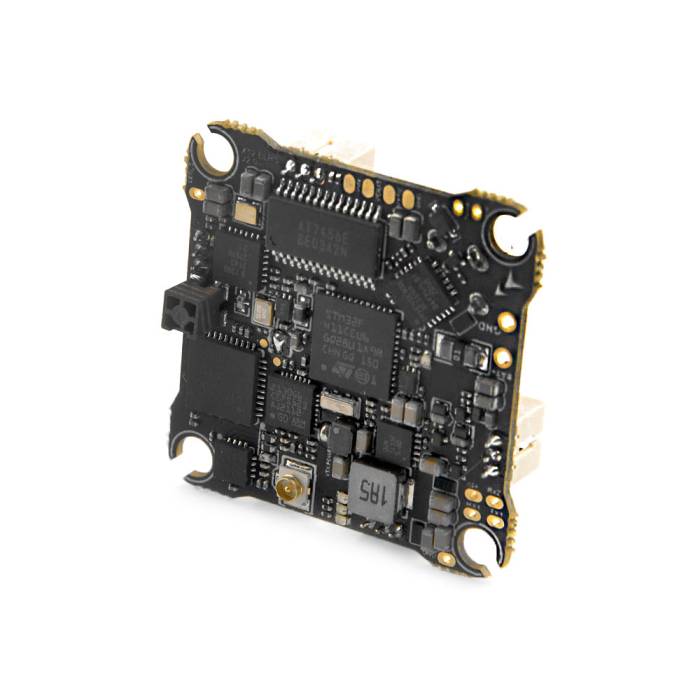

Happymodel X12 Lite V1.0 AIO for Walksnail / HDZero - SPI ELRS

The Happymodel X12 Lite V1.0 Flight Controller comes with an onboard SPI ELRS receiver which supports ELRS TX module 2.0 firmware, and also provides other receiver options like SPI Frsky D8/D16, RED PINE, and SFHSS. This is an amazing flight controller for brushless whoops that will give you an incredible range for your next FPV build.

Note: This Lite version comes without the onboard VTX.

VIDEO: (Insert Video Title here in Bold)

• Built-in ExpressLRS 2.4G with an option for FrSky D8/D16 receiver
• STM32F411CEU6 MCU (100MHZ, 512K FLASH)
• Built-in Betaflight OSD (SPI Control)
• 1-2S battery input (DC 2.9V-8.7V)
• Built-in voltage meter sensor
• Built-in current meter sensor
• Built-in 12A Blheli_S 4in1 ESC
• Lite Version without VTX
• ICM20689 Sensor

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

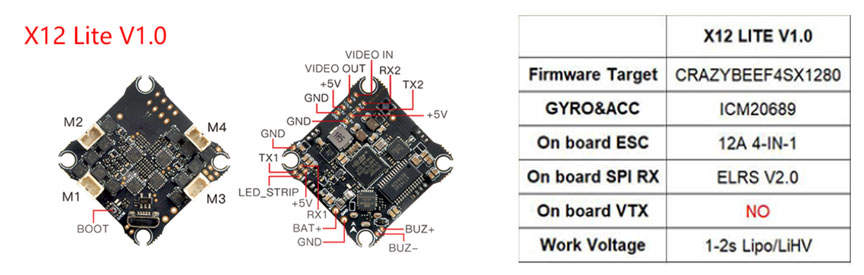

• Built-in ExpressLRS 2.4G with an option for FrSky D8/D16 receiver
• Built-in voltage meter sensor, voltage meter scale 110
• Built-in current meter sensor, current meter scale 470
• Power supply: 1-2S battery input (DC 2.9V-8.7V)
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Firmware Target: CRAZYBEEF4SX1280
• Mounting hole size: 25.5mm*25.5mm
• Built-in Betaflight OSD(SPI Control)
• Built-in 12A Blheli_S 4in1 ESC
• Dimensions: 30x30x8mm
• Sensor: ICM20689
• Weight: 5.1g
• VTX: No

(INSERT VTX TITLE HERE IN BOLD CAPS)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Happymodel X12 Lite V1.0 Flight Controller - No VTX
• 2x Connecting Wire
• 1x Hardware Set
• 4x Grommets
