About this product

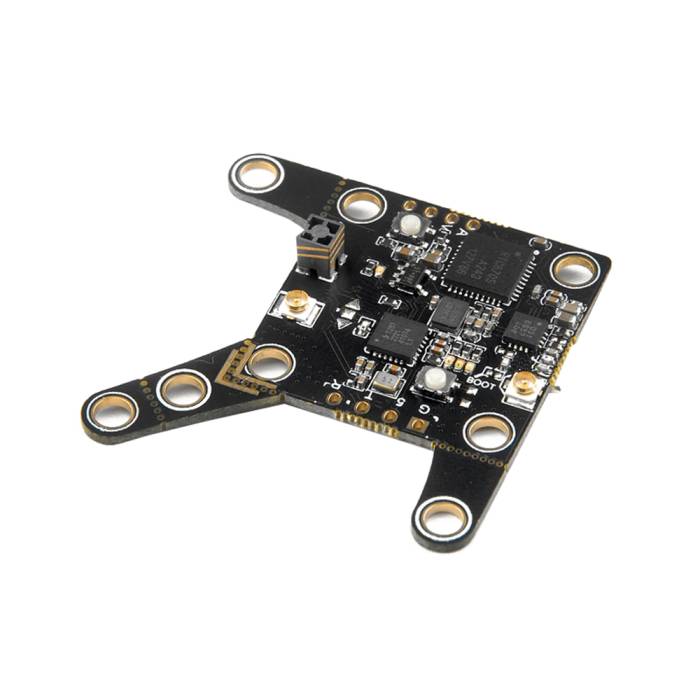

The Happymodel ELRS Fyujon V2 is an easy-to-use 2-in-1 AIO that integrates 5.8GHz video transmission and a 2.4GHz ELRS receiver. These components are all open-source solutions that are currently very popular with FPV pilots. Compatible with 20x20, 25.5x25.5 or 30x30 mounting options. Due to the ultra-lightweight (only2.1gram), this board is an excellent choice for small toothpick quads or analog version Cinewhoops.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Ultimate ELRS + VTX Solution ? Happymodel Fyujon V2
Features
- Ability to switch between SMD or IPEX antenna (Default antenna is SMD ceramic)
- All holes are now M3, which can be converted to M2 using rubber grommets
- Four Mounting support structures for added durability
- Supports 20mm/25.5mm/30mm mounting
- IPEX 1 rotated by 90° for added durability
- Design improvements by Sushmit Mishra
- Better shape to avoid sharp edges
- Improved circuitry
Specifications
ELRS V3.0.1 2.4GHZ RECEIVER
- ELRS Firmware target: HappyModel EP 2400 RX
- Antenna: Onboard SMD ceramic antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- RF Module: SX1280/1281IMLTRT
- Antenna Peak gain: 3.7Db
- Antenna: SMD Ceramic
- Working Voltage: 5v
- MCU: ESP8285
- Type: ISM
5.8GHZ OPENVTX
- Transmitting Power: 0/RCE/25mw/100mw/300mw
- Current (5v): <650ma (300mw)
- Frequency: 5.8G 48CH
- Power supply: DC 5V
- SmartAudio: Ready
IMPORTANT NOTES
- The ELRS RX and OPENVTX share the same Power input and GND pads, so if you use both ELRS RX and VTX, you need to solder one Power input and GND.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Happymodel ELRS Fyujon V2.0 AIO Board - 5.8GHz OPENVTX + 2.4GHz ERLS RX
- 2x Antenna
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 21861 |
|---|---|
| UPC (GTIN) | 724376358052 |
| Manufacturer | Happymodel |
| NDAA Compliant | No |
| Mounting Pattern | Convertible 20x20/30.5x30.5 |
| Frequencies | 2400-2500MHz |
