Happymodel 6-in-1 1S Lipo/LiHV Battery Charger

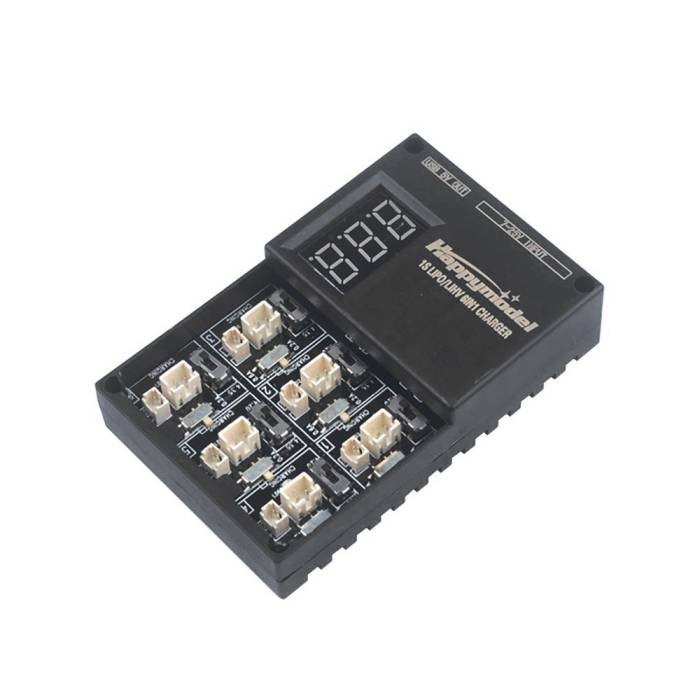

A handy pocket-sized charger made for charging micro batteries.

About this product

This 6-port charger is perfect for a host of different 1S (3.7v) batteries. It is compatible with Lipo and LiHV chemistries and has two connectors on each port to fit either 1.25mm Picoblade or PH 2.0 batteries.

Note: Ports are numbered 1-6 Do not put more than one battery on a single port. For example: do not insert one battery on the Picoblade 1.25 plug and another on the same port with the PH 2.0 plug.

Features

  • Supports Picoblade 1.25, PH 2.0mm battery
  • Supports LiHV 4.35v battery
  • Supports 6 Batteries charged at the same time
  • The display shows each channel input and output voltage in order.
  • Charge at either 200mA or 600mA according to the setting of a switch that can be set independently for each port.
  • 2-5S (7.4V-18.5V) as a power supply or use adapters with at least 2A battery output.
  • Barrel connector is 5.5mm x 2.1mm center pin positive

Specifications

  • Weight: 41g
  • Dimensions: 82x51x22mm
  • Input: DC 7V-25V
  • Output switchable: Fixed at 200~600 milliamps
  • Cutoff voltage switchable:
  • 4.20v cell charging cutoff (+- 0.5% margin of error) for 1S Lipo Battery
  • 4.35v cell charging cutoff (+- 0.5% margin of error) for 1S 3.8V LIHV Battery

Includes

  • 1x 6-way Charger

Note: No xt-60 or barrel cable included.
