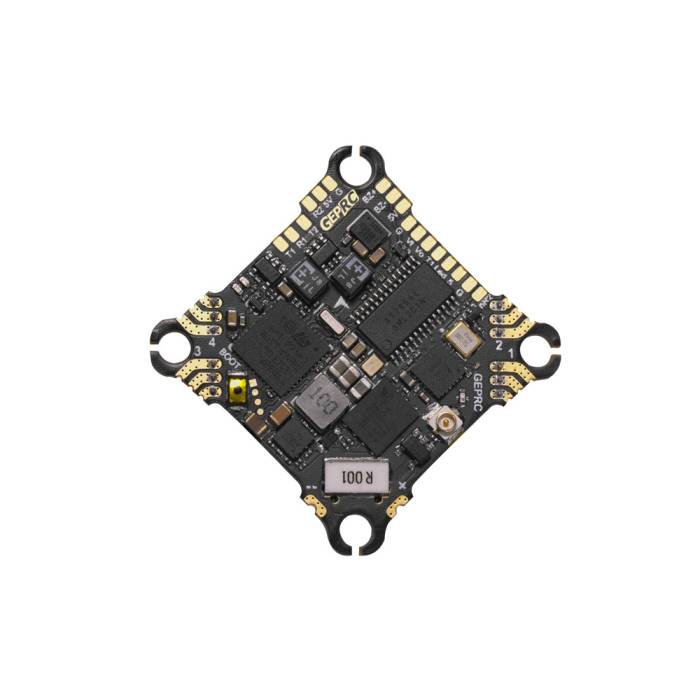

GEPRC TAKER AIO - F411 FC + 12A 2-4S ESC + Built-in ELRS 2.4GHz

Introducing the TAKER F411 8Bit 12A AIO, revolutionizing MINI FPV with its lightweight integrated board at only 7 grams. Equipped with an ICM-42688-P gyro for precise control, adaptable for both racing and freestyle. Features an on-board black box with 16MB flash memory for easy parameter adjustments, promising a seamless building experience.

Note: (Insert any product notes here in Red BOLD Italic.)

Example: "First Shipment is expected January 2022."

VIDEO: (Insert Video title here in BOLD)

• Equipped with IMU, ICM42688P gyroscope
• Supports buzzer and LED light functions
• 25.5mm*25.5mm mounting holes
• Features a built-in ammeter
• Supports 2-4S battery
• STM32F411 FC
• Bluejay 12A

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

FC

• Mounting holes: 25.5mm*25.5mm hole, M2 hole
• OSD: BetaFlight OSD with AT7456E chip
• Firmware target: GEPRC_F411_SX1280
• Black Box: 16Mb onboard flash memory
• Firmware target: GEPRC_F411_SX1280
• UART Ports: R1 T1/R2 T2
• MCU: STM32F411
• IMU: ICM42688P
• Weight: 7g

ESC

• ESC Firmware: G-H-30 – Bluejay, 0.16, 48kHz
• ESC Protocol: Dshot300, Oneshot, Multishot
• Size: 31.2×31.2mm Board
• Continuous Current: 12A
• ESC MCU: BB21F16G
• USB Port: Micro USB
• Current Meter: 210
• Peak Current: 13A
• Reverse Port: NR2
• Input: 2-4S
• Buzzer: YES
• LED: YES

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

• (Insert Link to Product it works with)

•   (Insert links such as manuals, firmware, etc)

• 1x GEPRC TAKER AIO - F411 FC + 12A 2-4S ESC + Built-in ELRS 2.4GHz
• 1x XT30-5.5cm-20AWG power cable
• 1x Instructional manual
• 1x 35V220UF capacitor
• 1x Hardware kit
