FXC1806-14 2300kv

FXC1806-14 2300kv

Out of Stock

Only left for same day shipping. Order now!
FXC1806-14 2300kv

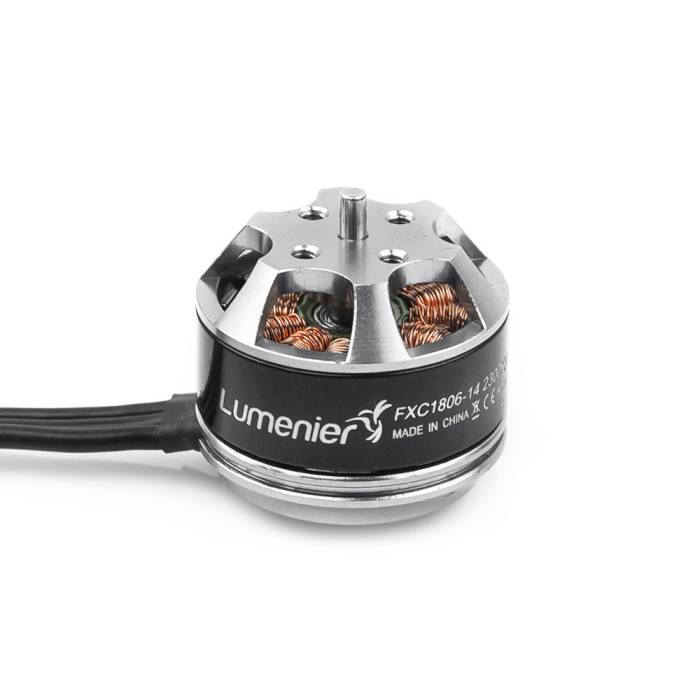

This FXC1806-14 2300kv multi-rotor motor has been replaced with the Lumenier RX1806-14 2300kv Motor

About this product

This Lumenier multi-rotor motor produces silky smooth performance with strong thrust at a great value. Perfect for spinning a 5" prop on the QAV250 and similar mini quads, giving you very high performance on 3s. The FXC version of Lumenier motors support direct fitment of carbon fiber propellers such as the Lumenier 5x3 Carbon Fiber Props.

The motor comes with a detachable 5mm and 4mm diameter prop adapter with a spinner, mounting screws and mounting hardware for carbon fiber props.

Rated for use with 2-3S LiPo. It comes with 80mm long motor wires with 2mm male bullet connectors. This motor uses the high quality parts and bearings.

Specs

KV: 2300
Configuration: 12N14P
Stator Diameter: 18mm
Stator Length: 6m
Shaft Diameter: 2mm
Motor Dimension (Diameter x Length): Φ23×18.5mm
Weight(g): 18g (without prop adapter)
ldle current(10)@10v(A): 0.6A
No.of Cells(Lipo): 2-3S
Max Continuous current(A)180S: 14A
Max Continuous Power(W)180S: 150W
Max. efficiency current: (3-8A)>83%
Internal resistance: 117mΩ

More Information

SKU 1734
Popo Compatible No
Item Returns This item can be returned
