  • FX797T shown installed on the Blade Inductrix micro quadcopter. FX797T shown installed on the Blade Inductrix micro quadcopter.

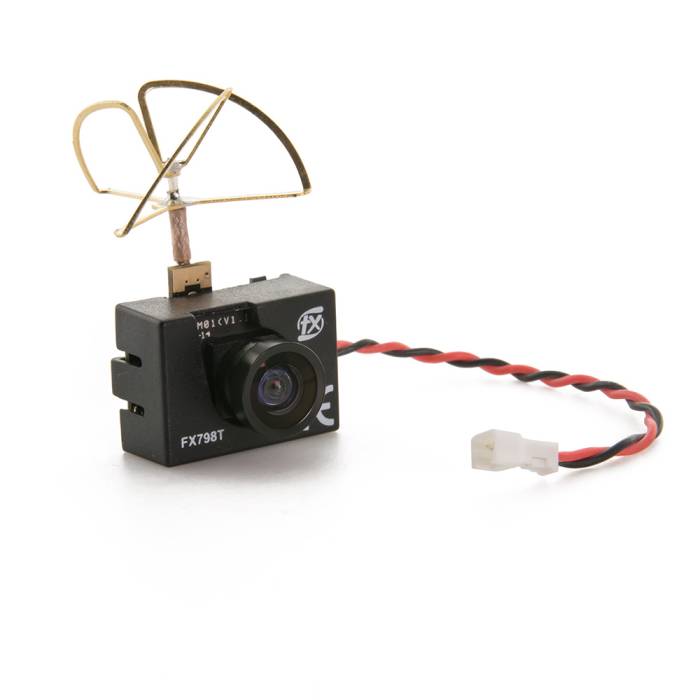

FX798T Micro FPV Camera & 5.8GHz 37CH 25mW VTX

Quick Overview

The FX798T Micro FPV Camera & 5.8GHz 37CH 25mW VTX. This camera / VTX combo is the perfect FPV plug & play solution for micro setups like the Blade Inductrix.
In Stock
$39.89

Details

The FX798T Micro FPV Camera & 5.8GHz 37CH 25mW VTX is extremely small and could be installed on almost anything. The unit is ultra-lightweight, so it is easy to place on any aircraft without affecting the COG. Most multi-rotors wouldn’t even notice it was there. This Camera / VTX combo is a popular choice for adding FPV to the Blade Inductrix micro quadcopter.

It’s easy to install and operate with one push button to change channels and bands. Just plug into a little 1S Lipoly battery or onto your 5V rail and you are ready to go.

It has excellent video and low latency for such a small package. The combo also includes a splitter and a circular polarized 5.8G tuned antenna for the best video signal.

Features

  • Micro sized and lightweight (4.5g)
  • 37CH VTX
  • Easy install, plug and play
  • Push button control instead of switch to change channels
  • Powered by 1S 3.5V LiPoly battery

Specs

  • Transmitter power: 25mW
  • Input power: 2.5~5V
  • Camera resolution: 600TVL
  • Min illumination: 1 lux
  • Field of view: 140deg viewing angle
  • Antenna dimensions: 20 x 25mm diameter
  • Antenna: 3 lobe right hand circular polarized
  • Video output: NTSC
  • Frequency: 5.8GHz 5 bands 37 channels
  • Raceband: 5658-5917
  • Size: 21x19x17mm (excluding antenna)
  • Weight: 4.5g

Channels:

  CH
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
BAND F 5740 5760 5780 5800 5820 5840 5860 5880
E 5705 5685 5665 5665 5885 5905 5905 5905
A 5865 5845 5825 5805 5785 5765 5745 5725
R 5658 5695 5732 5769 5806 5843 5880 5917
B 5733 5752 5771 5790 5809 5828 5847 5866

Operation:

  • Push Button: Long press for band, Short press for channel
  • 2 row LED indicators; 5 for band, 8 for channel

Additional Information

SKU 6097
Manufacturer FXT
  1. Best whoop camera review by d on 12/30/2016
    Quality
    Price
    Value

    The field of view on this can makes flying tiny whoop a breeze. The channel selection makes it a no brainer. The camera that shipped with my fat shark goggles only has 7 channels. It is currently collecting dust

  2. Almost perfect for a Tiny Whoop review by Ethan on 11/22/2016
    Quality
    Price
    Value

    I bought this camera for the Blade Inductrix, and have not regretted it. If you haven't had the pleasure of racing a Whoop around, do it.

    When I bought this camera, the pcb board extended all the way to the antenna, so the antenna was rigid and more prone to bending, but this updated one has a flexible antenna mount, which is a perfect upgrade.

    The only problems I have with this would be the stamped metal antenna and the very wide angle lens. Making the antenna out of hard copper wire along with the flexible antenna cable would make this thing indestructible. The viewing angle could also be smaller, but that isn't a big issue.

    Overall this is a great product, and has a quite low price for what you're getting.

  3. Whoop-tastic! review by BigDaddyBoyce on 8/8/2016
    Quality
    Price
    Value

    This is a great combo for micro FPV projects. One of the lightest options out there once you remove the plastic case.

  4. Great camera with good low light visibality. review by Steve on 7/6/2016
    Quality
    Price
    Value

    I built a Tiny Whoop and put my camera from my Blade Nano QX FPV. That camera sucks with low light. I had turn every light in the house on and if I got into a corner I couldn't see.

    I received this camera, clipped the lead wire, soldered it in. Was flying in minutes!

    This camera is Great with low light! I didn't turn on any lights in the house, just the little bit of sunlight from dusk coming through the windows. I could see like it was noon outside!!!

    Fantastic improvement over the QX camera.

    One thing to note is that this camera has a wider field of view than the QX had. It's 120 degree instead of the 110 that the QX had. There is some fish eye, but it's minor and after a few minutes I didn't even notice it anymore. Plus I had better side to side view of what was around me.

    This camera is small and a bit fragile but all of these types of cameras are. You smash it into a brick wall at 30 mph you will probably be replacing it.

    This is a great camera, and it's cheaper than the others I have seen on the market. Still wish they were a bit cheaper as I hate spending so much on something so small... But these guys still have a great price compared to the competition.

    I don't think you can go wrong with this camera.

Write Your Own Review

Only registered users can write reviews. Please, log in or register

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
