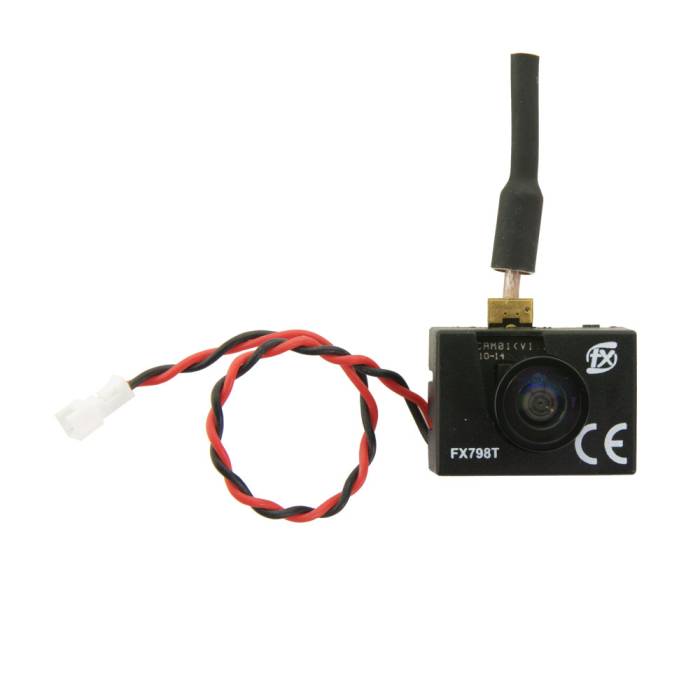

FX798T Camera Combo with Dipole Whip Antenna 5.8GHz 37CH 25mW
Out of Stock
About this product
The FX798T Camera Combo with Dipole Whip Antenna 5.8GHz 37CH 25mW is extremely small and could be installed on almost anything. The unit is ultra-lightweight, so it is easy to place on any aircraft without affecting the COG. Most multi-rotors wouldn’t even notice it was there. This Camera / VTX combo is a popular choice for adding FPV to the Blade Inductrix micro quadcopter.
It’s easy to install and operate with one push button to change channels and bands. Just plug into a little 1S Lipoly battery or onto your 5V rail and you are ready to go.
It has excellent video and low latency for such a small package. The combo also includes a splitter with dipole whip antenna 5.8G tuned antenna for the best video signal.
Features
- Micro sized and lightweight (4.5g)
- 37CH VTX
- Easy install, plug and play
- Push button control instead of switch to change channels
- Powered by 1S 3.5V LiPoly battery
Specs
- Transmitter power: 25mW
- Input power: 2.5~5V
- Camera resolution: 600TVL
- Min illumination: 1 lux
- Field of view: 120deg viewing angle
- Antenna dimensions: 20 x 25mm diameter
- Antenna: Dipole antenna with heatshrink guard
- Video output: NTSC
- Frequency: 5.8GHz 5 bands 37 channels
- Raceband: 5658-5917
- Size: 21x19x17mm (excluding antenna)
- Weight: 4.5g
Channels:
| CH | |||||||||
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | ||
| BAND | F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| E | 5705 | 5685 | 5665 | 5665 | 5885 | 5905 | 5905 | 5905 | |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 | |
| R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 | |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 | |
Operation:
- Push Button: Long press for band, Short press for channel
- 2 row LED indicators; 5 for band, 8 for channel
More Information
| SKU | 6702 |
|---|---|
| Manufacturer | FXT |
| Country of Manufacture | China |
| NDAA Compliant | No |
