FX2216-9 1100kv V2

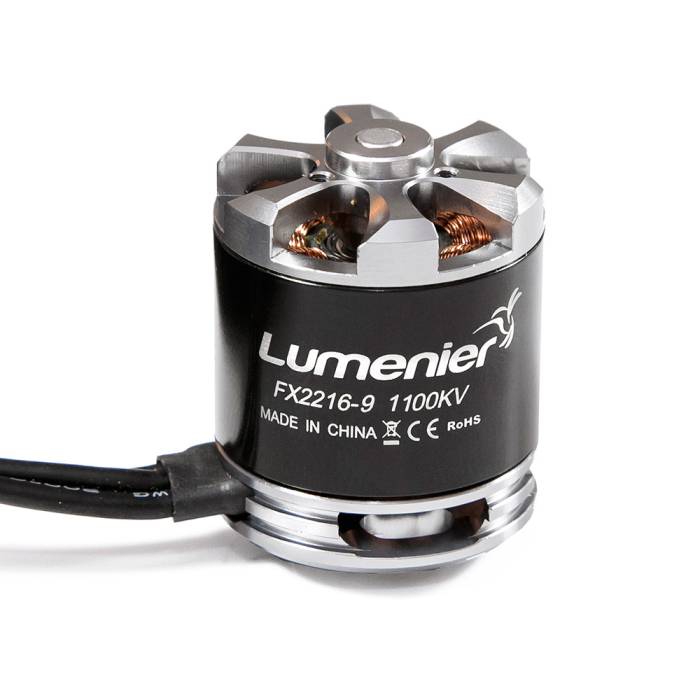

High quality FX2216-9 1100kv multi-rotor motor

About this product

The Lumenier FX2216-9 1100kv multi-rotor motor produces silky smooth performance with strong thrust at a great value. Perfect for spinning a 8" prop on the QAV400, giving you very high performance .

Now with V2 the motor has upgraded from a 3mm shaft to a 4mm shaft and new ball bearings for awesome performance.

The motor has a 5mm diameter prop adapter and comes with a spinner and mounting plate with screws.

Rated for use with 3-4S LiPo. Comes with long motor wires to locate the ESC in the center of your frame. This motor uses the highest quality parts, high quality Japanese bearings, included 5mm prop adapter, and is wound by hand.

These motors were flown by MidwestRob in his Rollin' video

These motors were flown by Juz in his Blossom video

Technical Data - FX2216-9 kv1100

KV 1100
Configuration 12N14P
Stator Diameter 22mm
Stator Length 16mm
Shaft Diameter 4mm
Motor Dimension ø27.8X34mm
Weight (g) 75
Idle Current (10) @10V (A) 0.3
Number of Cells (LiPo) 3-4S
Max Continous Current (A) 18A
Max Continous Power (W) 260W
Max Efficiency Current (5-15A)>80%
Internal Resistance 175m Ohms

More Information

SKU 1282
UPC (GTIN) 708653120785
Manufacturer Lumenier
NDAA Compliant No
Popo Compatible No
