Full Naze32 Flight Controller rev6 (w/ pin headers)

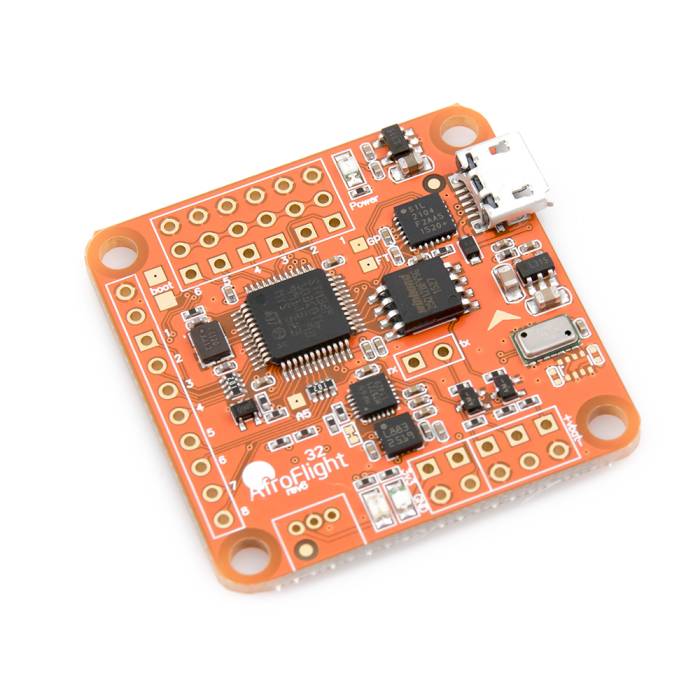

The AfroFlight Naze32 rev6 Full AbuseMark FunFly controller. (Board color may vary)

About this product

The newest version, rev6, of the popular Full Naze32 flight controller board by AbuseMark.

At the heart of the Naze32 is a 32bit ST micro work horse of a processor, with untapped memory and cpu power and a host of equally impressive sensors. The Naze is also matched up with some of the nicest GUI programs and features to get the most out of your configuration.

This "Full" version is the same as the Acro Naze32 board except the full version comes with the MS5611 barometer and a magnetometer.

  • STM32F103CBT6 32-bit ARM Cortex M3 processor (72MHz, 3.3V)
  • Invensense MPU6500 MEMS accelerometer + gyro
  • MS5611 Barometer
  • Built-in Micro-USB for programming/firmware update
  • 36x36mm size, ~5 gram weight w/o headers
  • Made in JAPAN
  • Shipping with 16V input capable voltage regulators

These come with pin headers (straight and right angle options), NOT soldered to the board.

Naze32 rev6 Features:

  • USB on right side
  • PPM/PWM input as through-hole
  • 3.3V, I2C on standard-size headers
  • Fully pinout compatible with rev5 accessories (OSDoge etc)
  • SBUS Inverter
  • Spectrum satellite
  • MPU6500
  • Sonar pads w/resistors added for direct connection to 5V sonar
  • All extra pads (FT, GP, A5) on top, only sonar on bottom
  • MS5611 barometer
  • 128mbit flash


  • 36x36 mm (30.5mm Mounting)
  • 5.3 grams (no headers, 7.3 grams with)
  • 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6500)
  • Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line


  • Full Naze32 rev6
  • 2x5 pin header
  • 3x6 pin header (right angle), 3x6 pin header (straight)
  • 1x10 pin header

Configuration software - Chrome Baseflight Configurator (preferred)


Download User's Manual.

Note: The Naze boards may vary in color from batch to batch.
