The FrSky R9 MM is the latest 900MHz mini receiver in the long-range series. It carries on most of the features from the previous R9 Mini receiver, like it’s super-low latency, high precision performance in an extremely compact design. A new feature incorporating an inverted S.Port output makes it compatible with more devices.

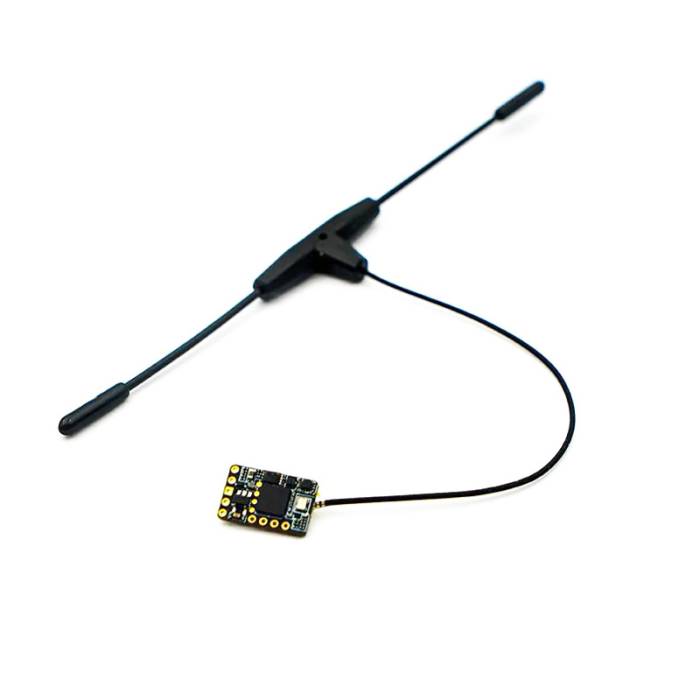

The latest version comes with a dipole T-antenna.

Features

• 915MHz (Non-EU Version)/ 868MHz(EU Version)
• Mini size and super lightweight
• Inverted S.Port enabled
• S.Port enabled and support telemetry data transmission
  (Support F.Port, download firmware to support the function)
• Low latency and high precision
• With RSSI output in SBUS
• Battery voltage detection supported
• Detachable Ipex connector antenna

Specifications

• Dimension: 16*10*2.8mm (L×W×H)
• Weight: 1.1g (including antenna)
• Number of Channels: Non-EU Version: 4/16CH (Telemetry)
• Operating Voltage Range: DC 3.5V – 10V
• Operating Current: 100mA@5V
• Operating Range: Up to 10km or above
• Compatibility: R9M and R9M Lite

Includes

• 1x R9MM Long Range Micro Receiver
• 1x T Dipole Antenna
• 1x Instruction Manual
• 2x Pin Headers

Resources

Download Page
