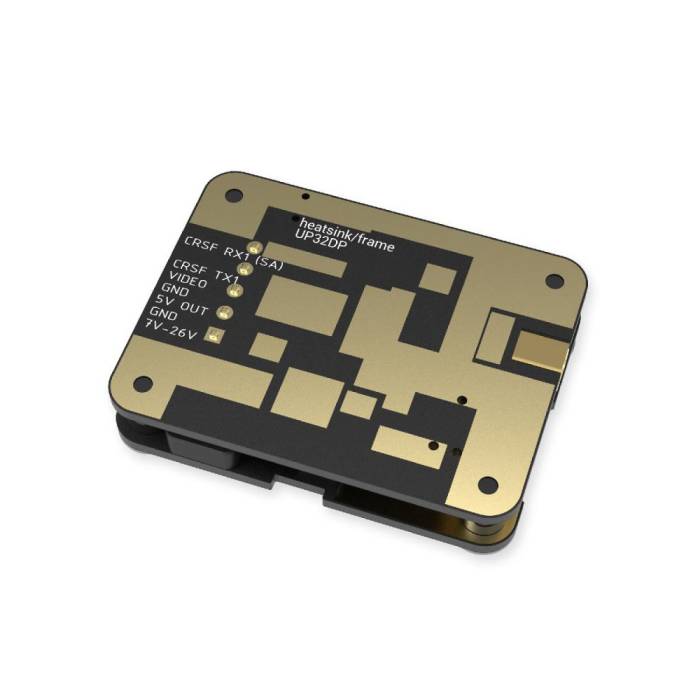

Triumph Unify Pro32 DP VTX - NDAA
$59.99
In Stock
Only left for same day shipping. Order now!
Triumph Unify Pro32 DP VTX - NDAA
The Triumph UNIFY PRO32 DP with an MMCX connector is a high-quality video transmitter (VTX) designed for use in FPV drones. This is an NDAA version.
NDAA Compliant Product
About this product
The Triumph UNIFY PRO32 DP with an MMCX connector is a high-quality video transmitter (VTX) designed for use in FPV drones. It features improved robustness, decreased size, and reduced power consumption. Enhanced performance and durability are achieved through advanced heat dissipation, which requires no additional heatsink or fan. NDAA-Compliant for added security and compatibility.
Features
- Optimized Heat Dissipation
- Double Noise Filtering
- Optional Accessory
- Lightweight Design
- OSD Configuration
- One-Button Setup
- 2-6S Input Voltage
- NDAA Compliant
- MMCX Connector
- Frequency Range
- LUA Support
Specifications
- Output Power: 14 dBm (25 mW), 20 dBm (100 mW), 26 dBm (400 mW)
- Manufacturer: Triumph Manufacturing
- Operating Voltage: 6V - 25V (2 - 6S)
- Video Input Impedance: 75 Ohm
- Dimensions: 37 x 28 x 10 mm
- Antenna Connector: MMCX
- Video Format: NTSC/PAL
- NDAA Compliant: Yes
- SNR: >63 dBm
- Weight: 8.7 g
Includes
- 1x Triumph Unify Pro32 DP VTX - NDAA
- 1x Hardware Set
More Information
| SKU | 23164 |
|---|---|
| UPC (GTIN) | 723326371615 |
| Manufacturer | Triumph Manufacturing |
| Country of Manufacture | United States |
| NDAA Compliant | Yes |
| System Type | Analog |
| Max Output Power | 400mW |
| Mounting Pattern | 20x20mm |
| Antenna Connector / Length | MMCX |
| Tx Frequencies | 5.8GHz |
