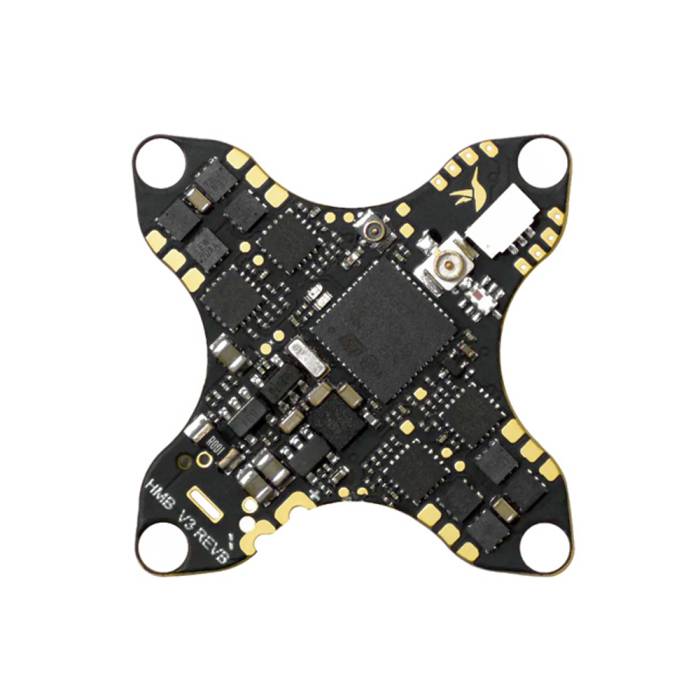

The NewBeeDrone Hummingbird V3 AIO Flight Controller is designed to be compatible with the Hummingbird F4 V2 ELRS BNF or Hummingbird F4 V3 ELRS BNF drone, ensuring seamless integration with the Hummingbird Mark3 VtxCamera. Boasting advanced features like an STM32F411 MCU, BMI270 gyro, 25mw VTX with BeeTX 5.8GHz Antenna, and a pre-flashed 12A BLHeliS ESC, this flight controller delivers optimal performance for an immersive flying experience.

Note: (Insert any product options here in black text with options in bold.)

Example: "Choose from two KV's: 1800KV (4S) or 2500KV (6S)."

Note: This is a replacement Flight controller for Hummingbird F4 V2 and V3 ELRS BNF's. It will be compatible with the Hummingbird Mark3 VtxCamera.

• Plug-and-Play Convenience with a pre-flashed 12A BLHeliS ESC, JST-1.0 3Pin connector, and Nectar Connector Gold Plated PH2.0 Solid Pin power plug that provides a hassle-free upgrade for enhanced flight capabilities.
• STM32F411 MCU, BMI270 gyro, and a 25mw VTX with BeeTX 5.8GHz Antenna for precise control and superior video transmission.
• Designed as a replacement for the Hummingbird BNF drone, ensuring perfect integration with the Hummingbird Mark3 VtxCamera.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

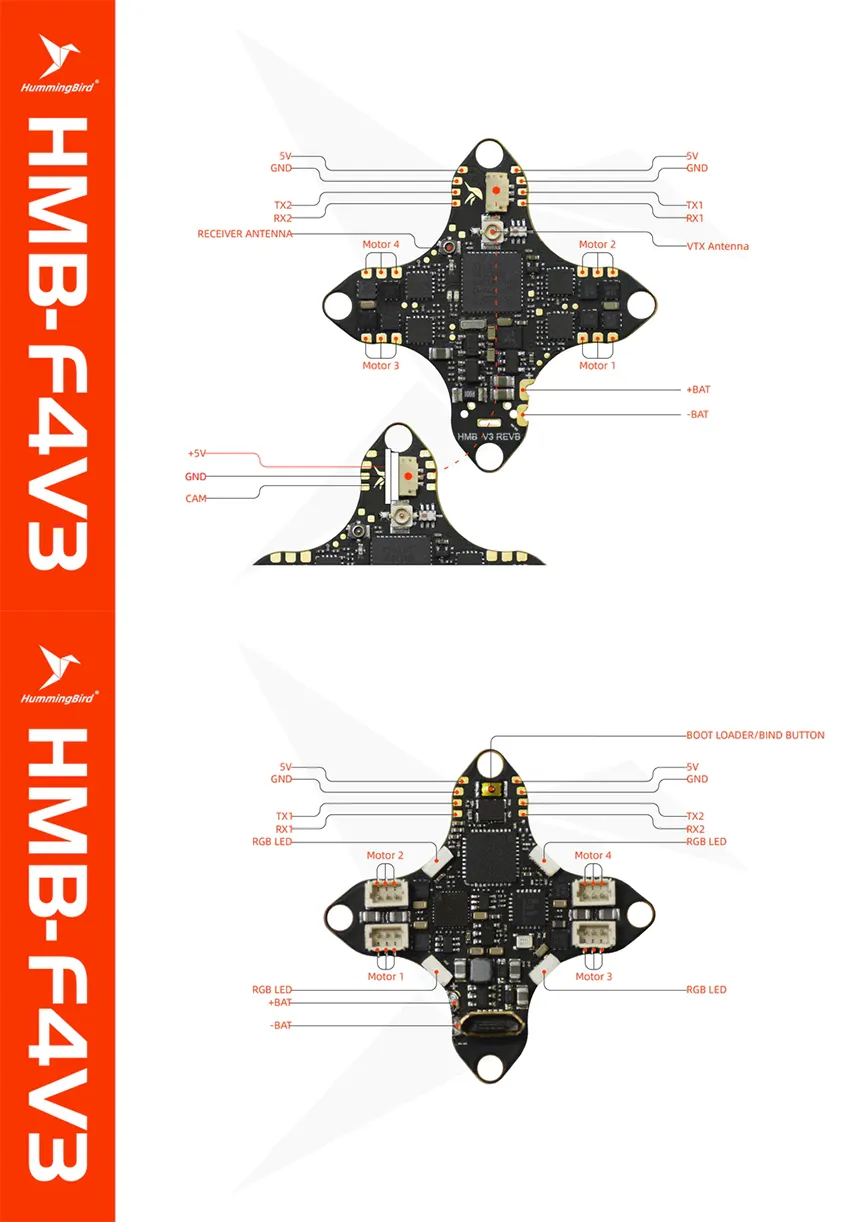

• Hummingbird V3 ELRS AIO Flight Controller Spec:
• MCU: STM32F411
• GYRO: BMI270 or 42688
• VTX:  25mw with BeeTX 5.8Ghz Antenna
• ESC: 12A BLHeliS Pre-Flash with Bluejay 0.20 target: O-H-5 48khz
• ESC Connector: JST-1.0 3Pin
• OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
• Receiver: 2.4G Antenna with MHF3 connector
• Flight Controller Weight: 4.57g(Include antennas and battery connector) RS 3.23
• Flight Controller Size: Outer dimensions: 29x29x7.6mm
• Flight Controller Holes: 25.5x25.5mm
• Battery input: 1S Only
• Uart1: free
• Uart2: free
• Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin
• SPI ELRS3.0 receiver (Binding instruction: power on the drone and push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.0 or above version. You will need to update your remote controller ELRS to 3.0 version because betaflight 4.4 will no longer support any lower version of 3.0)

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

• NewBeeDrone Github

• 1x NewBeeDrone Hummingbird V3 AIO - F411 FC + 12A BLHeli_S ESC + ELRS + VTX
