HGLRC Draco HD FPV A1 Air Unit

The HGLRC Draco A1 Pro Air Unit is part of the revolutionary Draco FPV HD VTX System. It delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an outstanding transmission range of up to 15km. The Draco HD VTX system is one of the core products of the open-source Artlynk HD VTX system, which is committed to a collaborative and standardized network of components from different brands.

VIDEO: HGLRC Draco | HD VTX System ON SALE

• ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
• High-Definition Video Transmission: 1080p @ 60 FPS
• Wide‑Angle Clarity: 1/2.9-inch lens sensor and 170° FOV for a crisp, immersive live view.
• Reliable Ultra-Long Range Transmission: Delivers smooth video with ~60ms latency and up to 15km range.
• Wide-Voltage Power: Supports 8-30V (2-6S LiPo)
• Comprehensive OSD Data: Supports MSP OSD data for BF/INAV with customization of real-time data content and layout.

• Resolution: 1080p
• Frame Rate: 60fps
• FOV: 170°
• Communication Frequency: 5.8GHz
• Power Supply: 8-30V(2-6S)
• Tx Power: <33 dBm (FCC)
• Air Unit Interface: SH1.0-6pin
• Mounting Pattern: 20mm/25.5mm
• Antenna: Dual Transmit - Dual Receive
• Dimensions: 32x32x10mm
• Weight: 36g

• HGLRC Draco VTX Firmware

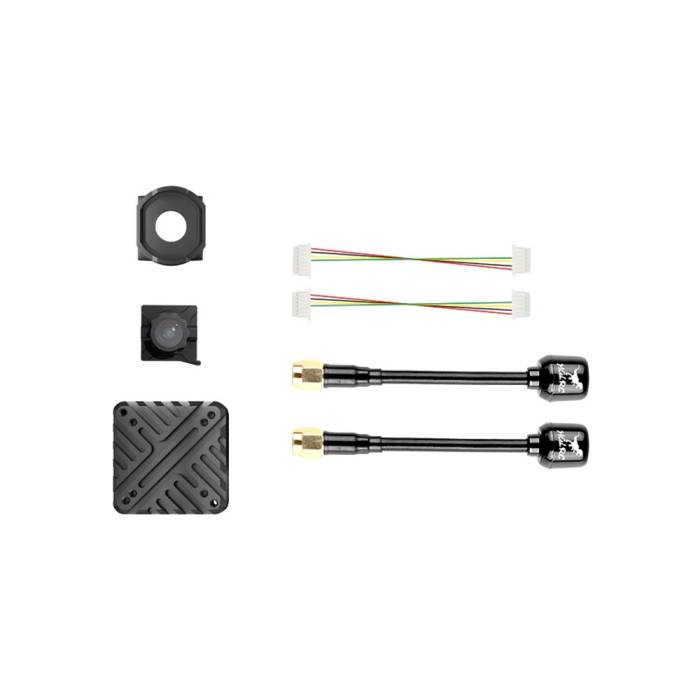

• 1x HGLRC Draco HD FPV VTX A1 Air Unit
• 1x Adapter Bracket
• 1x A1 Camera
• 2x HGLRC Long-Range Antenna
• 2x SH1.0-6pin Cable

HGLRC DRACO FPV HD VTX SYSTEM USER GUIDE
