HDZero Whoop V2 Bundle (Nano V3 Camera)

The HDZero Whoop V2 Bundle (Nano V3 Camera) has everything you need to upgrade your tiny whoop or micro drone to HD clarity! The improved HDZero Whoop V2 VTX produces sharp, low-latency HD video up to 200 mW while supporting all HDZero MIPI camera modes. Its thicker PCB, factory-soldered wiring harness, and brass antenna retention bar greatly improve durability and make installation more beginner-friendly over the Whoop Lite VTX. The HDZero Nano V3 Camera is designed for feather-lite drones where every gram counts.

• Ultra-high sensitive CMOS sensor
• Thicker PCB for impact resistance
• Pre-soldered wire harness
• Supports Smart Audio
• Supports 1080p resolution
• Under 8g in Weight

• Mounting Pattern: 25.5 × 25.5 mm (M2)
• Dimensions: 31 × 31 mm (29 × 29 inner)
• Video Connector: MIPI
• Video Resolution: 720p60 / 540p90 / 1080p30
• RF Power: 25mw / 200mw
• Smart Audio: Supported
• Power: 5 – 6 W
• Power input: 3 – 12.6 V (1S – 3S)
• RF Connector: Secured U.FL with brass bar
• Frequency: 5.725 – 5.850 GHz
• Board Thickness: 1.6mm
• SKU: HDZ3103
• Weight: 5.4g (5.1g w/o wires)

• Size: 14x16x14mm
• Weight: 5.4g (5.1g w/o wires)
• Sensor: Ultra-high sensitive CMOS sensor; 0.5 inch, up to 10650 mV/Lux-sec
• FOV: D:155° H:126° V:94°

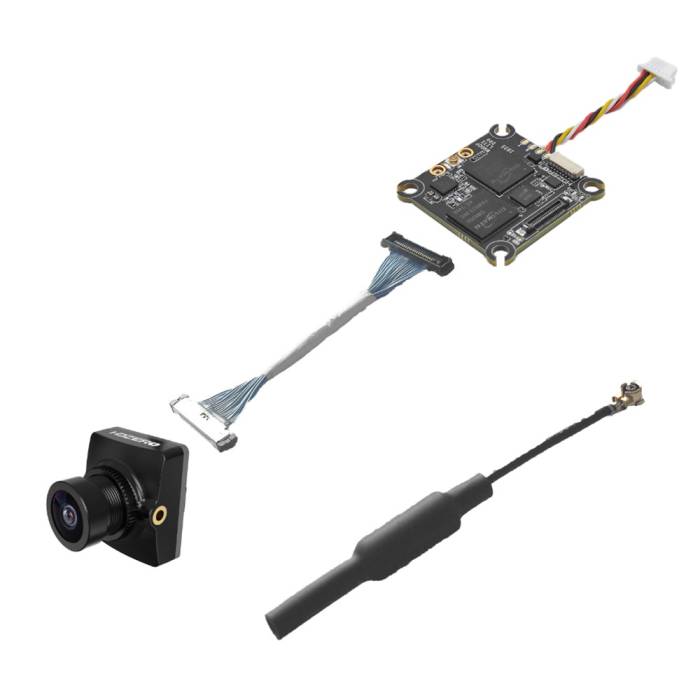

• 1x HDZero Whoop V2 VTX
• 1x HDZero Nano V3 Camera
• 1x Dipole Antenna
• 1x 40mm MIPI Cable
• 4x Rubber Grommet (M3 to M2)
• 3x u.FL Antenna Retention Screws
• 1x Metal Bar
