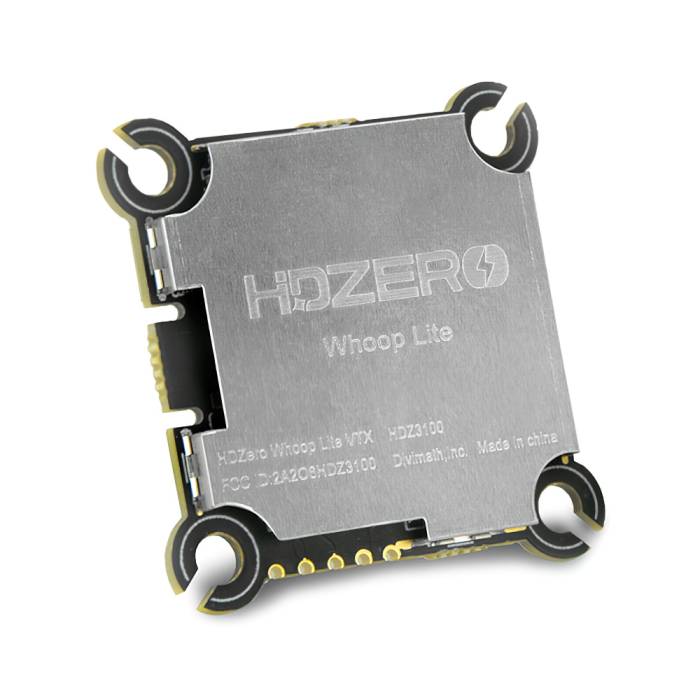

HDZero Whoop Lite VTX

The HDZero Whoop Lite VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It is designed for racing. It works with the Shark Byte RX5.1 goggle module to receive video.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: HDZero Whoop Lite 1S VTX: EVERYTHING You Need To Know

• Ultra-high sensitive CMOS sensor
• Excellent low light performance
• Removable Shielding Box
• Supports Smart Audio
• Under 7g in Weight
• 4mm Thickness
• 1S-3S Input

• Mounting Pattern: 25.5x25.2 M2 (soft mounting)
• Dimensions: 32.4x32.5mm (29x29mm inner)
• Video Connector: 20 Position 0.30mm Pitch
• Resolution Default: 1280*720@60fps
• Interface: 4-lane MIPI CSI YUV422
• RF Power: 25mw/200mw
• Smart Audio: Supported
• Power: 1000mA@5V
• Power input: 1S-3S
• RF Connector: U.FL
• Frequency: 5.8G
• Thickness: 4mm
• SKU: HDZ3100
• Weight: 4.5g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x HDZero Whoop Lite VTX
• 4x Rubber Grommet (M3 to M2)
• 5x Power/Uart Cable
• 2x Zip ties
