Foxeer HDZero 200mW HD VTX Race Edition
Foxeer HDZero 200mW HD VTX Race Edition
In Stock
About this product

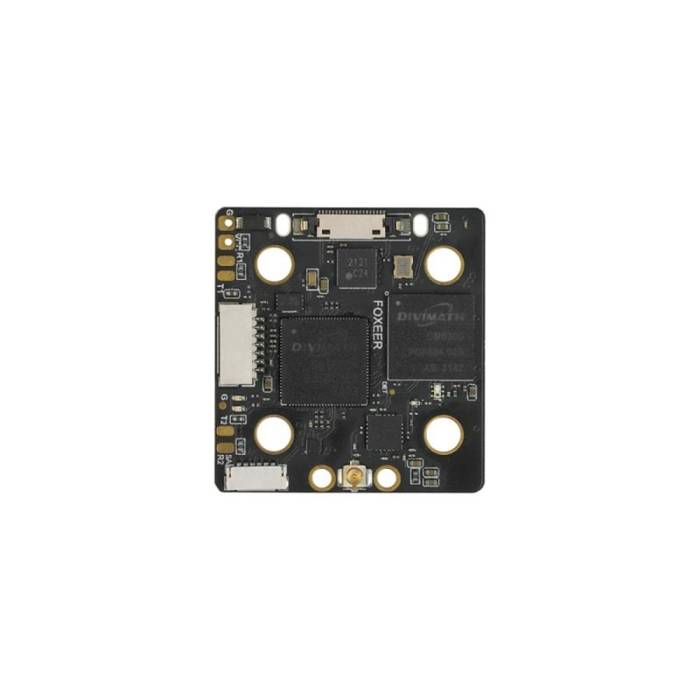

Foxeer and Divimath created a micro HDZero video transmitter designed to fit on smaller size drones such as racing drones. The 20x20 mounting size allows for flexibility for mounting on your favorite frame.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- 25/200mW
- Secured ufl connector
- Smaller design
- 720P/60fps
- 3-6S Input
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Frequency:Â Â 5.8G
- Resolution:Â Â 1280*720@60fps
- RF power:Â Â 25mw/200mw
- RF Connector:Â Â Secured UFL
- Interface:Â Â 4 lane MIPI CSI YUV422
- Video Connector:Â Â 20 Position 0.30mm Pitch
- Size:Â Â 32mm x 34mm x 6mm
- Weight:Â Â 6.3g
- Power:Â Â 410mA@12V
- Input Voltage:Â Â 8~26V(3~6S)
- Mounting:  20mm x 20mm Φ4 M3
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes
- 1x Foxeer HDZero VTX
- 6x Cables
- 1x Mounting Hardware
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
SKU | 20657 |
---|---|
UPC (GTIN) | 724376353385 |
Manufacturer | Foxeer |
NDAA Compliant | No |
Mounting Pattern | 20x20mm |
Frequencies | 5.8GHz |
Item Returns | This item can be returned |
