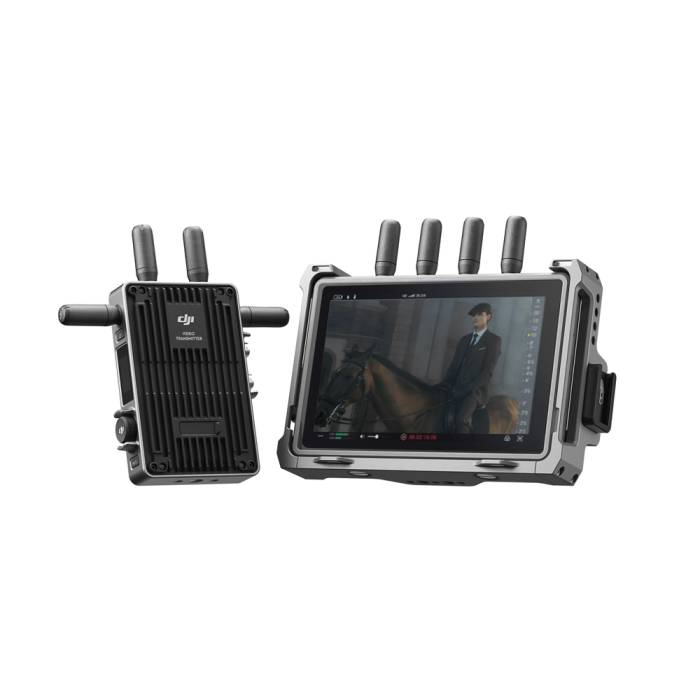

DJI Transmission Combo
DJI Transmission Combo
In Stock
About this product
The DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 40Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: DJI - Introducing DJI Transmission
Features
- Independent Recording and Playback
- 20,000ft 1080p/60fps Transmission
- Seamless Auto Frequency Hopping
- End-to-End Ultra-Low Latency
- Gimbal/Focus/Camera Control
- Integrated Wireless Receiver
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Weight
- Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
- High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
- Dimensions Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
- High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
- Operating Frequency
- Non-DFS Frequency Band: 2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz
- DFS Frequency Band: 5.250-5.350 GHz 5.470-5.600 GHz 5.650-5.725 GHz"
- Transmitter Power (EIRP)
- 2.4000-2.4835 GHz: <33 dBm (FCC) <20 dBm (SRRC/CE/MIC)
- 5.150-5.250 GHz: <23 dBm (FCC/SRRC/MIC)
- 5.250-5.350 GHz: <30 dBm (FCC) <23 dBm (SRRC/MIC)
- 5.470-5.600 GHz, 5.650-5.725 GHz: <30 dBm (FCC) <23 dBm (CE/MIC)
- 5.725-5.850 GHz: <33 dBm (FCC/SRRC) <14 dBm (CE)
- Max Bandwidth: 40 MHz
- Max Bitrate: 40 Mbps
- Power Consumption: 11 W
- Power Supply Voltage: 6 to 18 V
- Output Voltage Power Output Port: 6 to 18 V
- Operating Time Video Transmitter: 3 hours 40 minutes
- High-Bright Remote Monitor: 2 hours
- Input Video Format 3G SDI: YCbCr 4:2:2 10-bit
- HDMI RGB 4:4:4 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/59.94/60fps 720p: 50/59.94/60fps
- Output Video Format
- 3G SDI: YCbCr 4:2:2 10-bit, 1080p: 23.98/24/25/29.97/30/50/59.94/60fps, 1080i: 50/59.94/60fps, 720p: 50/59.94/60fps
- Input Audio Format SDI embedded, HDMI embedded
- Output Audio Format: PCM
- Video Transmission System: O3 Pro
- Video Transmission Latency: 68 ms / 100 ms
- Video Coding Format: H.264
- Max Transmission Distance: 6 km (FCC) , 4 km (CE/SRRC/MIC)
- Operating Temperature -10° to 45° C (14° to 113° F)
- Mirror Control Mode Supported Camera Models: ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
- Weight
- Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
- High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
- Dimensions
- Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
- High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
- Operating Frequency
- Non-DFS Frequency Band:
- 2.4000-2.4835 GHz
- 5.150-5.250 GHz
- 5.725-5.850 GHz
- DFS Frequency Band:
- 5.250-5.350 GHz
- 5.470-5.600 GHz
- 5.650-5.725 GHz"
- Non-DFS Frequency Band:
- Transmitter Power (EIRP)
- 2.4000-2.4835 GHz:
- <33 dBm (FCC)
- <20 dBm (SRRC/CE/MIC)
- 5.150-5.250 GHz:
- <23 dBm (FCC/SRRC/MIC)
- 5.250-5.350 GHz:
- <30 dBm (FCC)
- <23 dBm (SRRC/MIC)
- 5.470-5.600 GHz, 5.650-5.725 GHz:
- <30 dBm (FCC)
- <23 dBm (CE/MIC)
- 5.725-5.850 GHz:
- <33 dBm (FCC/SRRC)
- <14 dBm (CE)
- 2.4000-2.4835 GHz:
- Max Bandwidth
- 40 MHz
- Max Bitrate
- 40 Mbps
- Power Consumption
- 11 W
- Power Supply Voltage
- 6 to 18 V
- Output Voltage
- Power Output Port: 6 to 18 V
- Operating Time
- Video Transmitter: 3 hours 40 minutes [1]
- High-Bright Remote Monitor: 2 hours [1]
- Input Video Format
- 3G SDI: YCbCr 4:2:2 10-bit
- HDMI RGB 4:4:4
- 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
- 1080i: 50/59.94/60fps
- 720p: 50/59.94/60fps
- Output Video Format
- 3G SDI: YCbCr 4:2:2 10-bit
- 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
- 1080i: 50/59.94/60fps
- 720p: 50/59.94/60fps
- Input Audio Format
- SDI embedded, HDMI embedded
- Output Audio Format
- PCM
- Video Transmission System
- O3 Pro
- Video Transmission Latency
- 68 ms [2]
- 100 ms [3]
- Video Coding Format
- H.264
- Max Transmission Distance
- 6 km (FCC) [4]
- 4 km (CE/SRRC/MIC) [4]
- Operating Temperature
- -10° to 45° C (14° to 113° F)
- Mirror Control Mode Supported Camera Models
- ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
IMPORTANT NOTES
-
Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
-
In open environments free of obstructions or interference
-
Measured when shooting 1080p/60fps video.
-
Measured when shooting 1080p/24fps video.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- DJI Assistant 2: Mac V2.1.5 PKG or Windows V2.1.5 (EXE or ZIP)
- Battery Hub User Guide
- Transmitter User Guide
- Monitor User Guide
Includes
- 1x DJI Transmitter
- 1x DJI High-Bright Remote Monitor
- 1x Ronin Video Transmission Antenna
- 1x USB-C to LEMO Power Cable
- 1x WB37 Battery Charging Hub
- 1x NP-F Battery Adapter - TX
- 1x NP-F Battery Adapter - RX
- 1x RS Gimbal Mounting Plate
- 1x DC to P-TAP Power Cable
- 1x WB37 Intelligent Battery
- 1x WB37 Battery Adapter
- 1x Remote Monitor Hood
- 1x Installation Tool Kit
- 1x DC Power Cable
- 1x Protector Case
- 1x USB-C Cable
- 1x SDI Cable
Featured Videos
VIDEO: EN DJI Transmission|First Use
VIDEO: DJI Transmission - Fall
More Information
SKU | 19138 |
---|---|
UPC (GTIN) | 190021054127 |
Manufacturer | DJI |
NDAA Compliant | No |
Mounting Pattern | N/A |
Frequencies | 5.8GHz |
