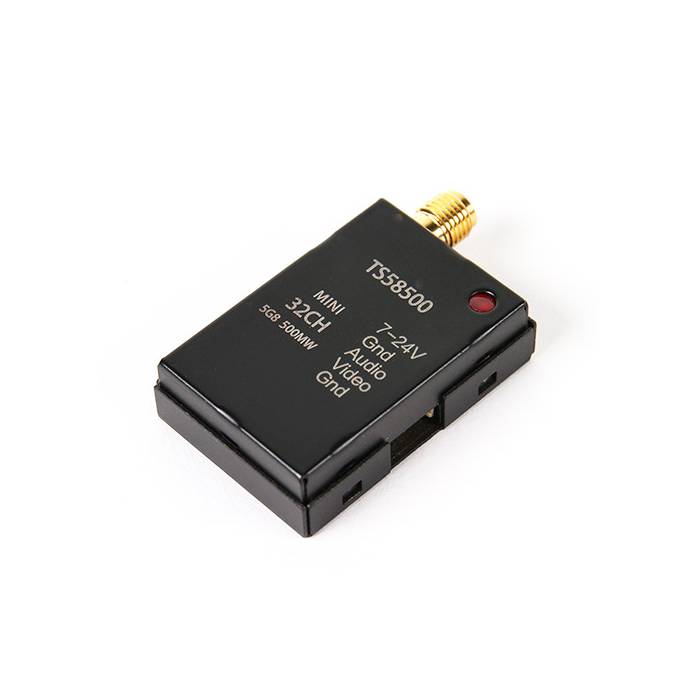

5.8GHz 32CH A/V 500mW Video Transmitter (TS58500) - (International Version)
5.8GHz 32CH A/V 500mW Video Transmitter (TS58500) - (International Version)
Out of Stock
About this product
The TS58500 transmitter packs 500mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must for those looking save size and weight while still getting good performance. The TS58500 is transmitting a full range of 32 channels and only weighs 10g. It’s perfect for a wide range of aircraft!
This transmitter can only be shipped to addresses outside the USA. If you are inside the USA or EU, please see their respective versions.
Features
- 32 channels: Cover A, B, E bands and F bands
- Small sized and light weight
- Transmitter frequency: 5645-5945MHz with 500mW power output
- Transmitting distance > ~3000m (open area)
- SMA Antenna connector
TX TS58500 specs:
- Operating Voltage 7 - 24V
- Supply current 220 mA
- Operating Temperature -10 +85 ℃
- Video Band Width 0 8.0 MHz
- Audio carrier Frequency 6.5 MHz
- Video Input Level 0.8 1.0 1.2 Vp-p
- Video Input Impedance 75 Ohm
- Audio Input Level 0.5 2.0 Vp-p
- Audio Input Impedance 10K Ohm
- Weight 19g
- Antenna Connector SMA Connector
- Dimensions (L x W x H) 42x23x8mm
- Video Format NTSC/PAL
- Output Impedance 50 Ohm
- Output Power 26 26.5 27 dBm
Frequency and channel frequency table:
Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.
Included
- 1 x Transmitting unit (TX)
- 1 x Antennas (2db)
- 1x GoPro USB video out / power cable
- 1 x 5p cable
- 1 x User manual
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 1972 |
|---|---|
| Manufacturer | GetFPV Affiliate 2 |
| NDAA Compliant | No |
| Mounting Pattern | N/A |
| Frequencies | 5.8GHz |
| Item Returns | This item can be returned |
