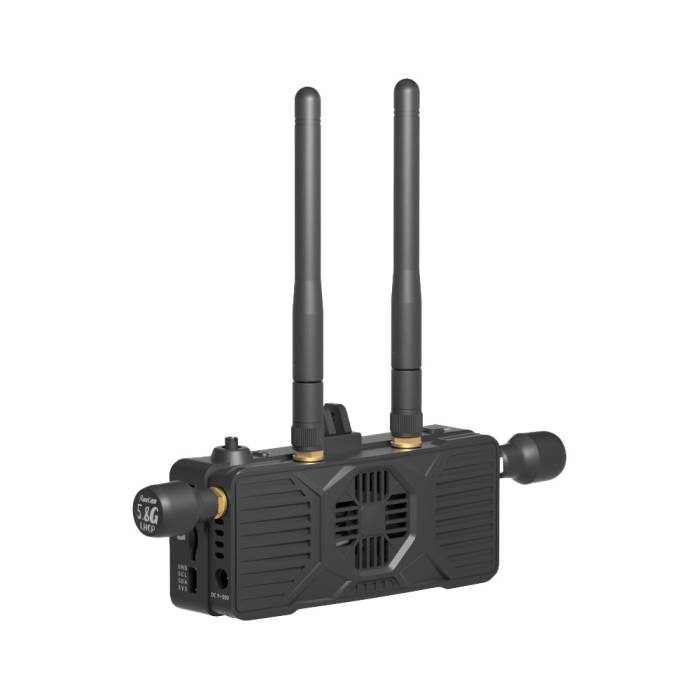

RunCam WifiLink-RX VRX w/ OpenIPC
$129.99
Out of Stock
Only left for same day shipping. Order now!
RunCam WifiLink-RX VRX w/ OpenIPC
The Runcam WiFiLink-RX VRX w/ OpenIPC is a compact, high-performance video receiver designed for use with the Ruby FPV and OpenIPC systems. Supporting a wide frequency range of 5180–5885 MHz, it delivers crisp HD video via Mini-HDMI at 1080P/60fps or 720P/60fps.
About this product
The Runcam WiFiLink-RX Digital HD Receiver is a compact, high-performance video receiver designed for use with the Ruby FPV and OpenIPC systems. Supporting a wide frequency range of 5180–5885 MHz, it delivers crisp HD video via Mini-HDMI at 1080P/60fps or 720P/60fps. With multiple interface options including Type-C, OTG, Mini-HDMI, and Micro-SD (up to 256GB), it offers versatile connectivity and convenient data handling.
Features
- Dual polarization for better reception
- Includes stick and Pagoda antennas
- 1080P/60fps or 720P/60fps video
- Compact and lightweight design
- Supports Ruby FPV & OpenIPC
- MicroSD supports up to 256GB
- Wide 9–30V power input range
- Multiple interface options
- HD output via Mini-HDMI
- 32GB built-in storage
Specifications
- Interfaces: Mini-HDMI, Micro-SD, DC 5.5x2.1mm, Type-C, OTG
- Video Output: 1080P/60fps or 720P/60fps via Mini-HDMI
- Storage: 32GB built-in + MicroSD support up to 256GB
- Receiver Dimensions: 110 × 27.3 × 46 mm
- Receiver Weight: 122g (antenna excluded)
- Transmission Power: Up to 25dBm (FCC)
- System Support: Ruby FPV / OpenIPC
- Frequency Range: 5180–5885 MHz
- Power Input: 9–30V (3–6S)
STICK ANTENNA
- Dimensions: Ø4.8 × 108.4 mm
- Frequency: 5150–5850 MHz
- Polarization: Vertical
- Gain: 2.5dBi
- Weight: 6.6g
- SWR: ≤ 2.0
PAGODA ANTENNA
- Polarization: LHCP (Left-Hand Circular)
- Dimensions: Ø8.0 × 23.9 mm
- Frequency: 5500–5900 MHz
- Gain: 2.5dBi
- Weight: 4.4g
- SWR: ≤ 2.0
Includes
- 1x RunCam WifiLink VRX w/ OpenIPC
More Information
| SKU | 23255 |
|---|---|
| UPC (GTIN) | 723326374449 |
| Manufacturer | RunCam |
| Country of Manufacture | China |
| NDAA Compliant | No |
| System Type | Digital |
| Antenna Mode | Single |
| Display Type | HDMI |
| RX Frequency | 5.8GHz |
| Compatability | OpenIPC |
