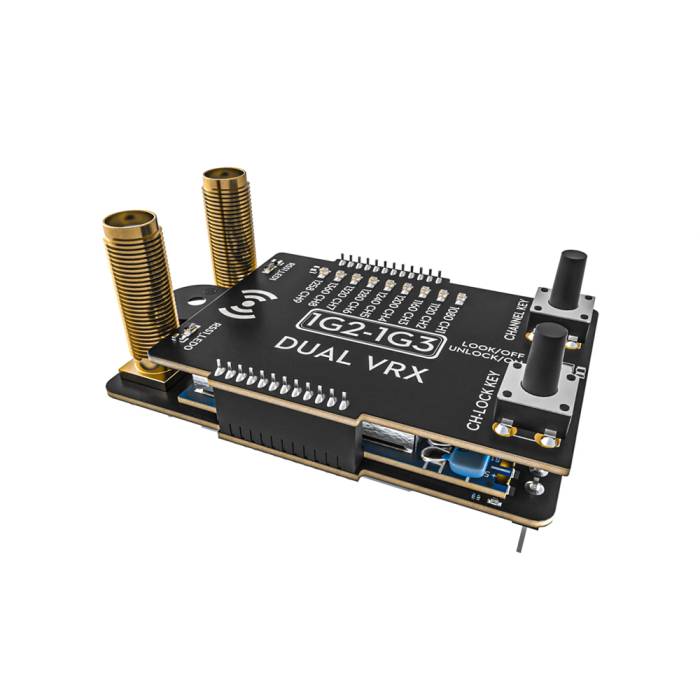

Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module Set - Fat Shark / SKYZONE
Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module Set - Fat Shark / SKYZONE
Back Ordered
About this product
Operating within a broad frequency range of 1080MHz to 1360MHz, this 9-channel receiver offers impeccable RX sensitivity at -95dBm. With dual input compatibility through its 9-pin socket, it seamlessly integrates with popular FPV goggles like FATSHARK and SKYZONE. Enjoy effortless frequency selection and locking via the button control, illuminated by the 9-channel LED display, while the RSSI LEDs keep you informed. Plus, the board's compact size ensures a convenient and space-saving setup for your FPV drone system.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, covering a wide range from 1080MHz to 1360MHz.
- Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receive module ensures stable and reliable signal reception for an uninterrupted FPV experience.
- Notch Filter Included: The FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz) included in the box helps eliminate interference from other devices operating at similar frequencies, ensuring a clear video feed.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Receiving Frequency: 9CH (1080MHz to 1360MHz)
- RX Sensitivity: -95dBm
- Dual Input : 5V/2.54 9 PIN socket, compatible with FATSHARK/SKYZONE FPV Goggles
- Button Control : Lock and Select Frequency
- Channel LED: 9CH LED
- RSSI LEDs: RSSI0/RSSI1
- Current Consumption: 0.4A @5V
- Video Format: NTSC or PAL
- Video Output Impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
- ANT. Input Impedance: 50Ω, Typ.
- RF Connector: SMA
- Size: Board
IMPORTANT NOTES
- Press and hold the LOCK button for 3 seconds to unlock the channel. The UNLOCK LED will light up and the buzzer will sound once.
- Press the CHANNEL button to select the frequency. The LED will light up and the buzzer will sound once.
- The RSSI0/RSSI1 LEDs respectively display the signal strength of the two receiver modules.
- The new frequency will be saved if no button action is taken within 3 seconds.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module
- 2x Flywoo 1.2GHz-1.3GHz SMA Dipole Antenna (2pc) - Linear
- 2x FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz)
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 20997 |
---|---|
UPC (GTIN) | 724376354740 |
Manufacturer | Flywoo |
NDAA Compliant | No |
Item Returns | This item can be returned |
