Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module Set - DJI FPV Goggles V2
Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module Set - DJI FPV Goggles V2
Back Ordered
About this product

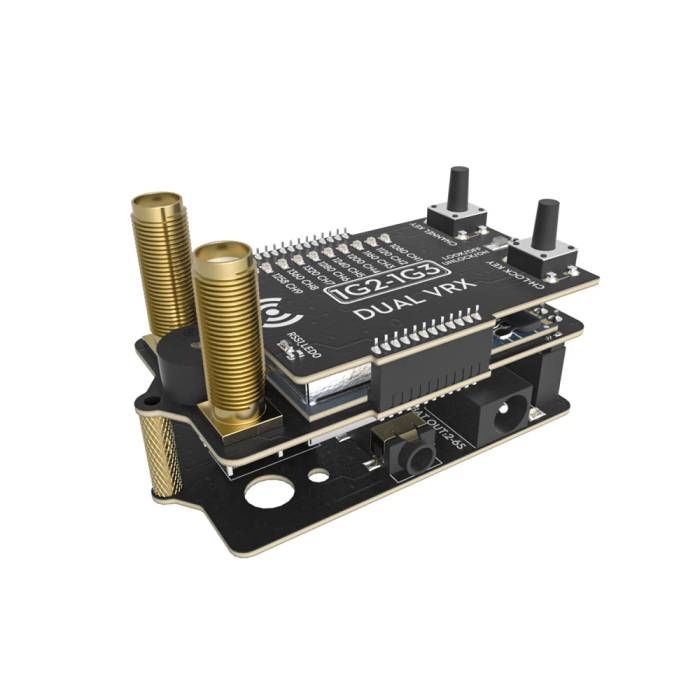

Operating across an extensive frequency range from 1080MHz to 1360MHz, this 9-channel receiver delivers a remarkable RX sensitivity of -95dBm. It ensures adaptability in various setups with versatile power input support from 7-26V or 2-6S batteries. Effortlessly control and lock onto your preferred frequencies with the user-friendly button interface, all while monitoring with the 9-channel and RSSI LEDs. This board-sized receiver combines performance and convenience for your FPV drone system.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, from 1080MHz to 1360MHz.
- Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receiver module ensures stable and reliable signal reception for an uninterrupted FPV experience.
- Notch Filter Included: The FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz) included in the box helps eliminate interference from other devices operating at similar frequencies, ensuring
- Compatible with DJI FPV Goggles V2: The FLYWOO 1.2/1.3GHz Dual VRX Video Receiver is compatible with DJI FPV Goggles V2, allowing for a high-quality video feed and an immersive flying experience.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Receiving Frequency: 9CH (1080MHz to 1360MHz)
- RX Sensitivity: -95dBm
- Dual Input: 7-26V/2-6S
- Button Control : Lock and Select Frequency
- Channel LED: 9CH LED
- RSSI LEDs: RSSI0/RSSI1
- Regulator Output: 5V 2A
- Current Consumption: 0.4A @5V/0.2A @12V
- Video Format: NTSC or PAL
- Video Output Impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
- ANT. Input Impedance: 50Ω, Typ.
- RF Connector: SMA
- Size: Board
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module Set - DJI FPV Goggles V2
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 20996 |
---|---|
UPC (GTIN) | 724376354757 |
Manufacturer | Flywoo |
NDAA Compliant | No |
Item Returns | This item can be returned |
