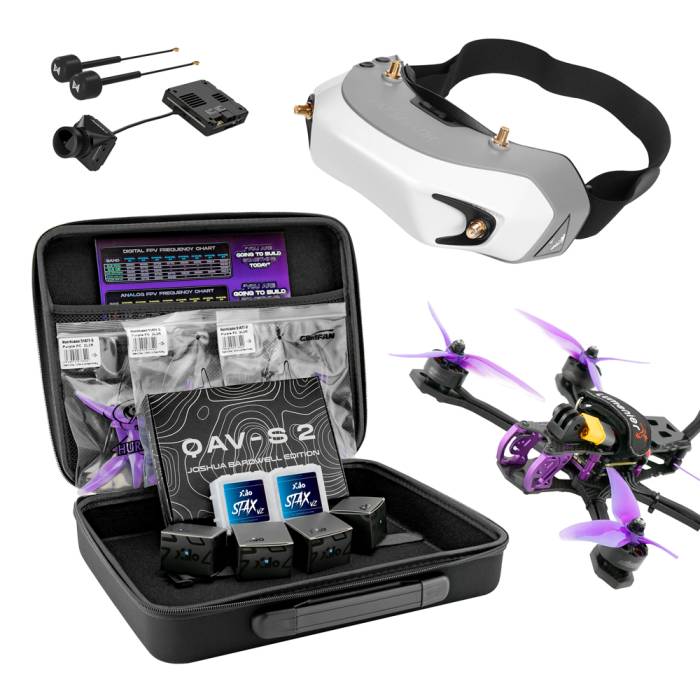

Beginner DIY FPV Drone Bundle - QAV-S 2 Bardwell SE 5” + Fat Shark Dominator HD Goggles + Walksnail Avatar HD Pro

This Bundle features the  Beginner DIY Drone Kit - QAV-S 2 Joshua Bardwell SE 5” (HD Ready), Fat Shark Dominator Digital HD FPV Goggles, and the Walksnail Avatar HD Pro Kit - 32GB w/ Dual Antennas at a special price!

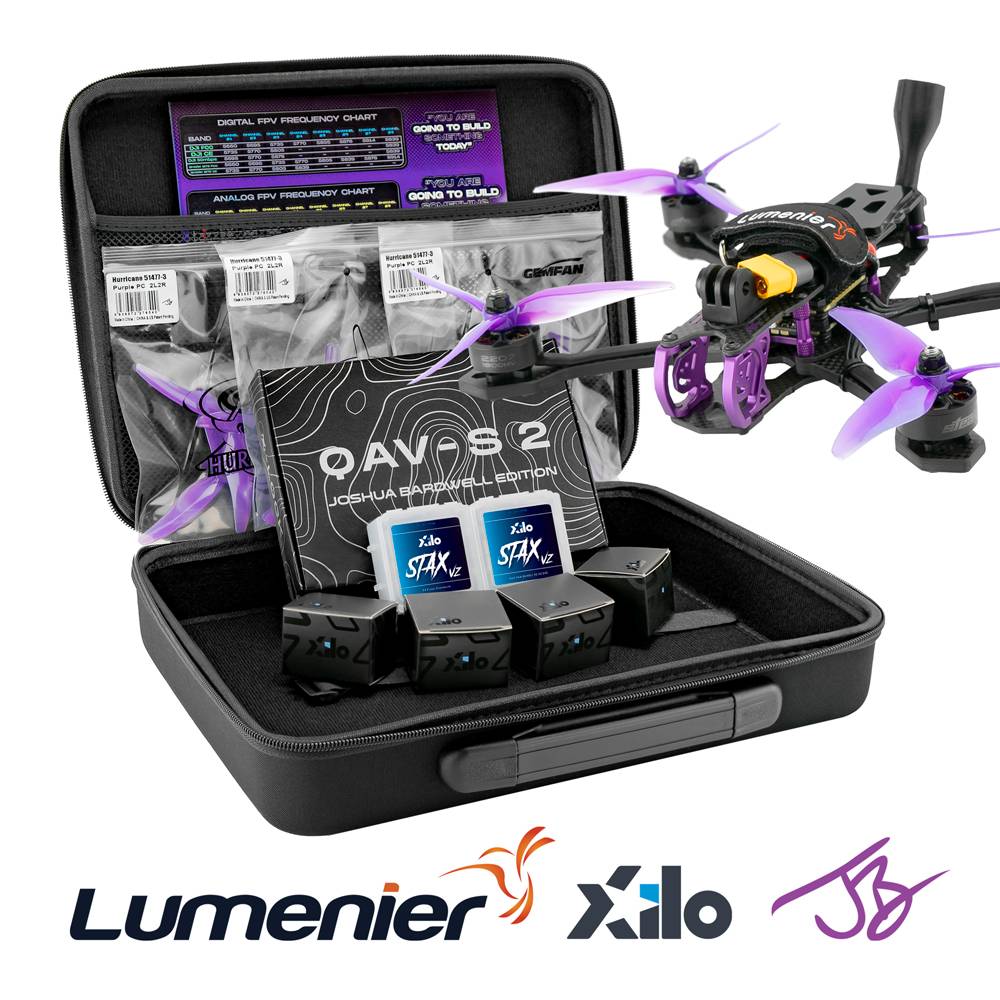

The Beginner DIY Drone Kit - QAV-S 2 Joshua Bardwell SE 5” (HD Ready) is the ultimate bundle with the components necessary to build a beginner FPV drone. This HD Ready kit is compatible with the DJI O3 or Walksnail systems. The FPV system is not included, which allows you to add your own, which can be purchased separately. Whether you've built hundreds of quads or this is your first build, this DIY kit is the simplest way to build an FPV drone from scratch.  Joshua Bardwell, Lumenier, and Xilo have partnered up and compiled a list of all the components with an easy-to-follow step-by-step build guide to assemble, build, tune, and fly this revolutionary QAV-S 2 drone.

Note: A receiver that is compatible with your controller is required, please see the options under "Recommended". This is a Full DIY Build Kit with assembly required.

VIDEO: Unlock the Thrills: Build Your First FPV Drone Today! Ultimate Beginner Guide!

Watch the entire DIY Build Series here.

• This drone kit is designed for Freestyle FPV and can carry an HD action camera for epic footage
• Upgraded 5" QAV-S 2 Frame with X-Lock Arm Mechanism and Aluminum FPV Camera Plates
• Powerful Xilo Stax V2 45A BLHeli_32 ESC (3-6s) with Current Sensor and Telemetry
• Xilo Stax V2 F4 Flight Controller with the latest BetaFlight firmware compatibility
• Includes full step-by-step build guide series by FPV expert Joshua Bardwell
• Frame made of High-Quality Lumenier carbon fiber material and hardware
• DJI O3 or Walksnail compatible (FPV system sold separately)
• DIY Kit has the components needed to build the FPV drone
• Powerful and smooth Stealth 2207 6S 1800KV motors

This HD Ready DIY Kit has been developed and designed with the addition of the long-awaited QAV-S 2 frame! Lumenier and Xilo have been working side by side with Joshua Bardwell on multiple features to make this kit even better than the last:

• New Airframe Design: The QAV-S 2 - Joshua Bardwell Edition frame optimizes the space and weight for a 5” quad design, with a low profile body for electronics, enough space to fit an Analog or Digital Video System, engineered center of gravity when carrying an Action Camera, and strong and structured design that is meant for hardcore freestyle.
• X-Lock Arm Mechanism: The Lumenier QAV-S 2 Bardwell SE introduces a new lateral X-Lock arm system! This all-aluminum arm locking system improves on the QAV-S design in both rigidity and ease of use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw for easy transportation.
• O3, Vista, and Walksnail Compatible Mounting: The rear plate adds 25.5 M1.6 mount holes to allow direct mounting of the O3 air unit to the frame. This frame can also house the Vista/Walksnail system in rear-mounting orientation. (HDZero works in center-mounting orientation with FC or ESC in the rear.)
• Aluminum FPV Camera Plates: The new FPV camera mounting solution offers excellent camera protection and support for a range of cameras. The use of a unique interlocking system allows for minimal hardware and strengthens the front end while staying lightweight.

WHAT'S THE DIFFERENCE BETWEEN THIS HD READY KIT AND THE ANALOG KIT?

The "HD Ready" kit comes without an FPV system so you can choose your own HD system to add to your build. The analog kit includes the analog FPV video transmitter and camera.

WHAT IF I CRASH? ARE THERE SPARE PARTS AVAILABLE?

Yes! GetFPV carries all the parts included in this bundle as individual spare parts as well. So fly hard, and have no fear! If you need a replacement part, we've got you covered and plan to support this kit and all the parts for a long time.

IS THIS DRONE KIT GOOD FOR BEGINNERS?

Yes! No matter your skill level, this kit is made for you! We take the guesswork out of picking parts by compiling all the gear together in one easy to assemble kit. This all-inclusive bundle pairs together proven components that are guaranteed to work well together, making the build easy for you.

Not only do you get all the parts, but XILO has partnered with the renowned FPV instructor Joshua Bardwell with a full step-by-step build guide. This build guide takes you from start to finish, building, setup, tuning, flying, radio setup, binding, updating, and more! All you have to do is follow the instructions in the video and you'll be flying your own freestyle FPV drone in no time!

I'M NEW TO FPV AND HAVE NOTHING. DOES THIS KIT HAVE EVERYTHING I NEED TO GET STARTED?

This bundle comes with everything the "drone" itself needs except the radio receiver and FPV System. If you are just getting into FPV and don't have anything yet there are a few key components you will need in addition to this kit to be able to fly. Please check out our "Additional Suggested Parts" list below for suggestions. The good news is most of these parts you can use across multiple drones, so it is an upfront investment, but you won't have to necessarily buy them for every drone you build.

You will need the following in addition to this kit if you don't already have them:

• FPV Goggles / Video Receiver
• FPV VTX/Camera System
• Tools for Building
• Battery Charger
• Radio Receiver
• Flight Batteries
• Radio

BEGINNER DIY FPV DRONE KIT - QAV-S 2 JOSHUA BARDWELL SE 5" -  HD READY

• Frame: Lumenier QAV-S 2 Joshua Bardwell SE 5” Frame Kit
• Motors: Xilo Stealth 2207 1800KV 6S Motors
• Arm Length: Up to 5.1" Propeller clearance
• Propellers: JB Gemfan Hurricane 51477
• FPV System: None (choose your own)
• FC: Xilo Stax V2 F4 flight Controller
• ESC: Xilo Stax V2 45A ESC
• Recommended LiPo: 6S

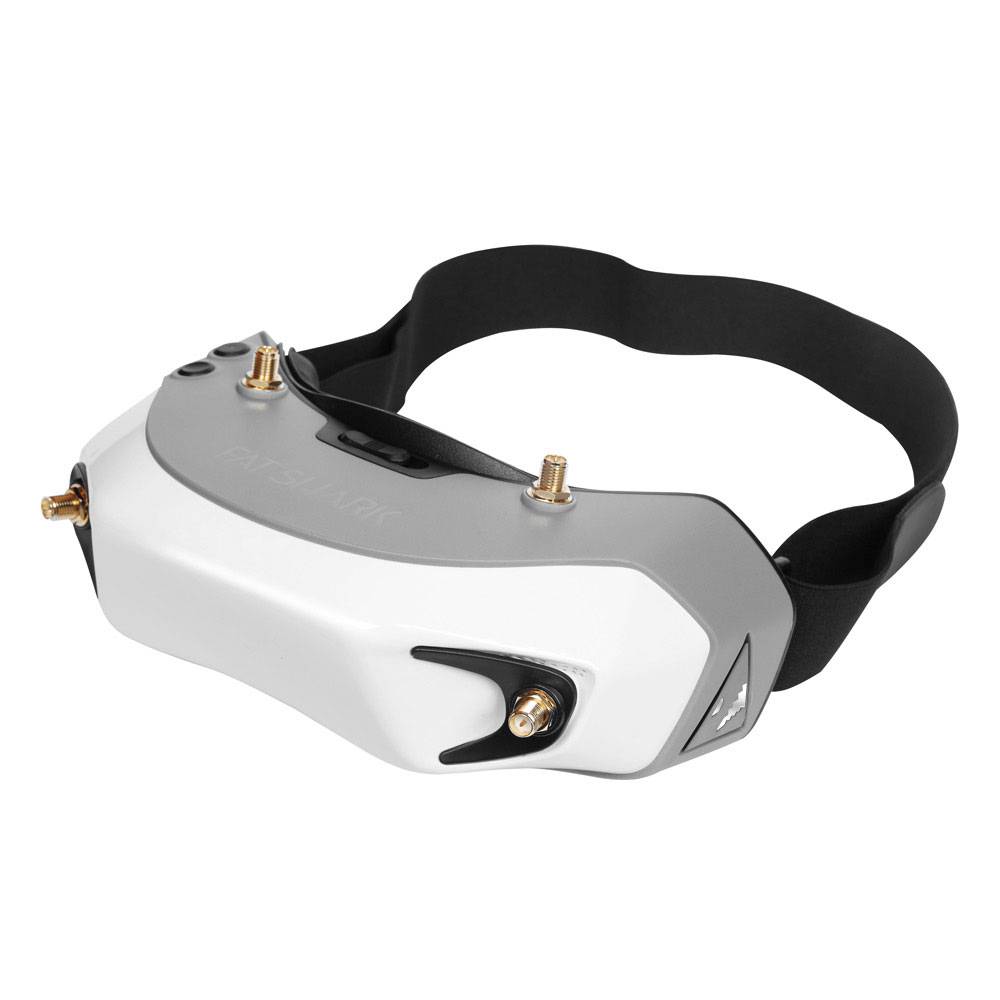

FAT SHARK DOMINATOR DIGITAL HD FPV GOGGLES

• OPTIC ENGINE

  • Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
  • Adjustable Focus Range: +2 to -6 diopter
  • Field of View (FOV): 46°
• MICRODISPLAYS

  • Full HD 1080p OLED Dual Micro Displays
• INPUT VOLTAGE

  • 7-21V (2S-5S)

WALKSNAIL AVATAR HD PRO KIT - 32GB W/ DUAL ANTENNAS

• AVATAR HD PRO CAMERA

  • Model: Avatar HD Pro Camera
  • Image Sensor: 1/1.8-Inch Sony Starvis Ⅱ Sensor
  • Resolution: 1080P/60fps; 720P/120fps, 720P/60fps; 1080P/120fps compatibility
  • Ratio: 16/9; 4/3
  • Lens: 8MP
  • FOV: 160°
  • Aperture: F1.6
  • Shutter: Rolling shutter
  • Min. Illumination: 0.00001Lux
  • Weight: 9.5g
  • Dimensions: 191924mm
  • Coaxial Cable: 140mm
• AVATAR V2 PRO VTX MODULE

  • Model: Avatar V2 Pro Module (Dual Antenna)
  • Communication Frequency: 5.725-5.850GHz
  • Transmitter Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
  • I/O Interface: JST1.04 (Power in) JST0.86 (USB)
  • Mounting Holes: 25.525.5mm; 2020mm
  • Dimensions: 33.533.510.5mm
  • Storage: 32G
  • Recording: 1080p/720p
  • Weight: 15.4g
  • Operating Temperature: -20-40℃
  • Channels: 8
  • Wide Power Input: 6V-25.2V
  • Supported FC System: Betaflight; Inav; Fettec; ArduPilot; Kiss
  • OSD: Canvas mode
  • Latency: Average delay 22ms
  • Antenna: 2 (IPEX)
• AVATAR V2 ANTENNA

  • Polarization: LHCP
  • Frequency Range: 5600MHz-6000MHz
  • Gain: 1.9dBi
  • VSWR: ≤1.5
  • Input Impedance: 50Ω
  • Interface: IPEX-1
  • Size: R15 X 45mm (without cable)
  • Weight: 2g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

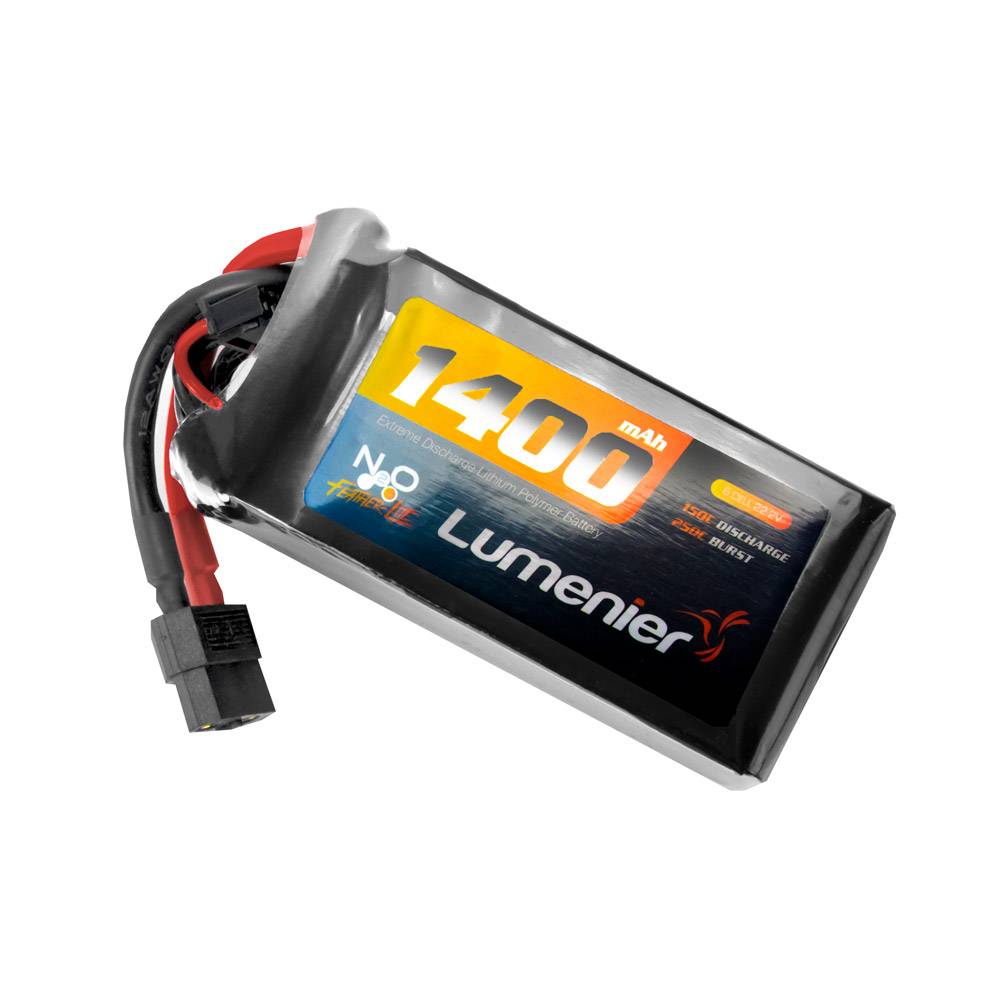

LIPO BATTERY

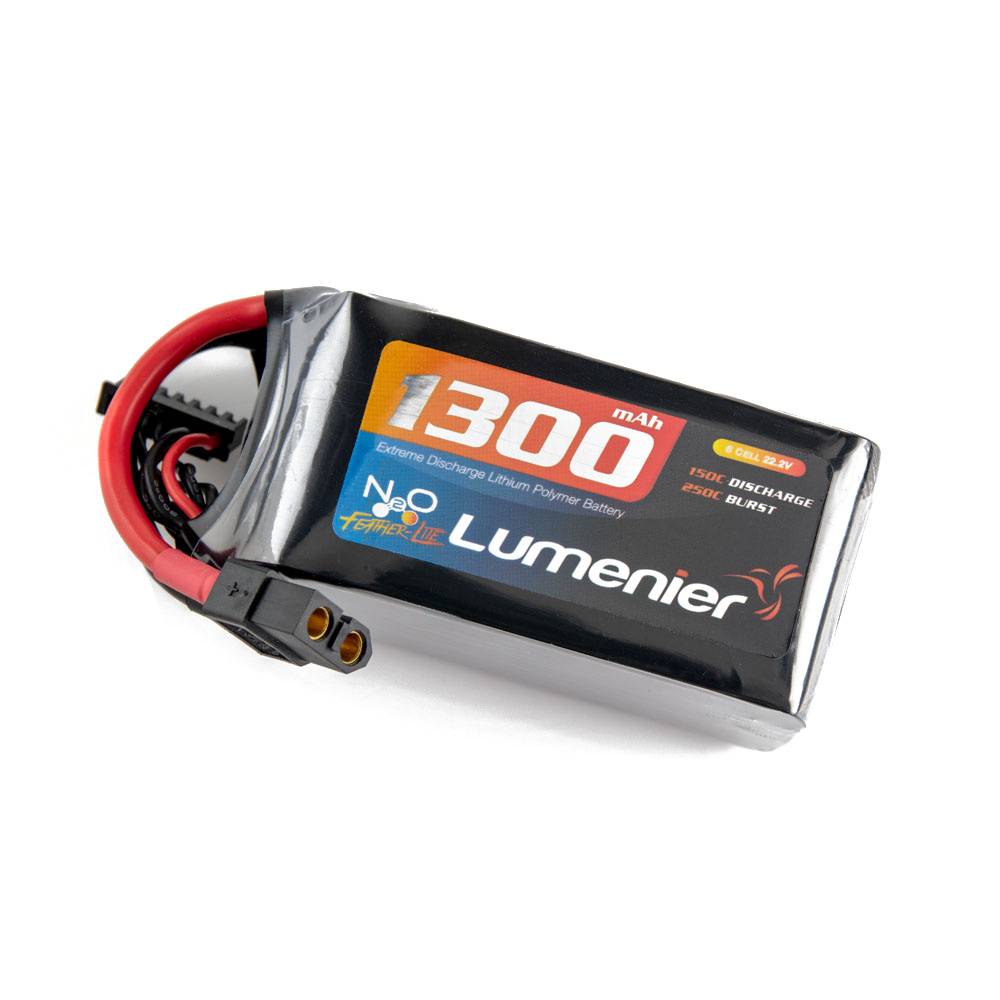

• Lumenier N2O Feather-Lite 1300mAh 6S 150c LiPo Battery (XT-60) - 3 Pack Bundle

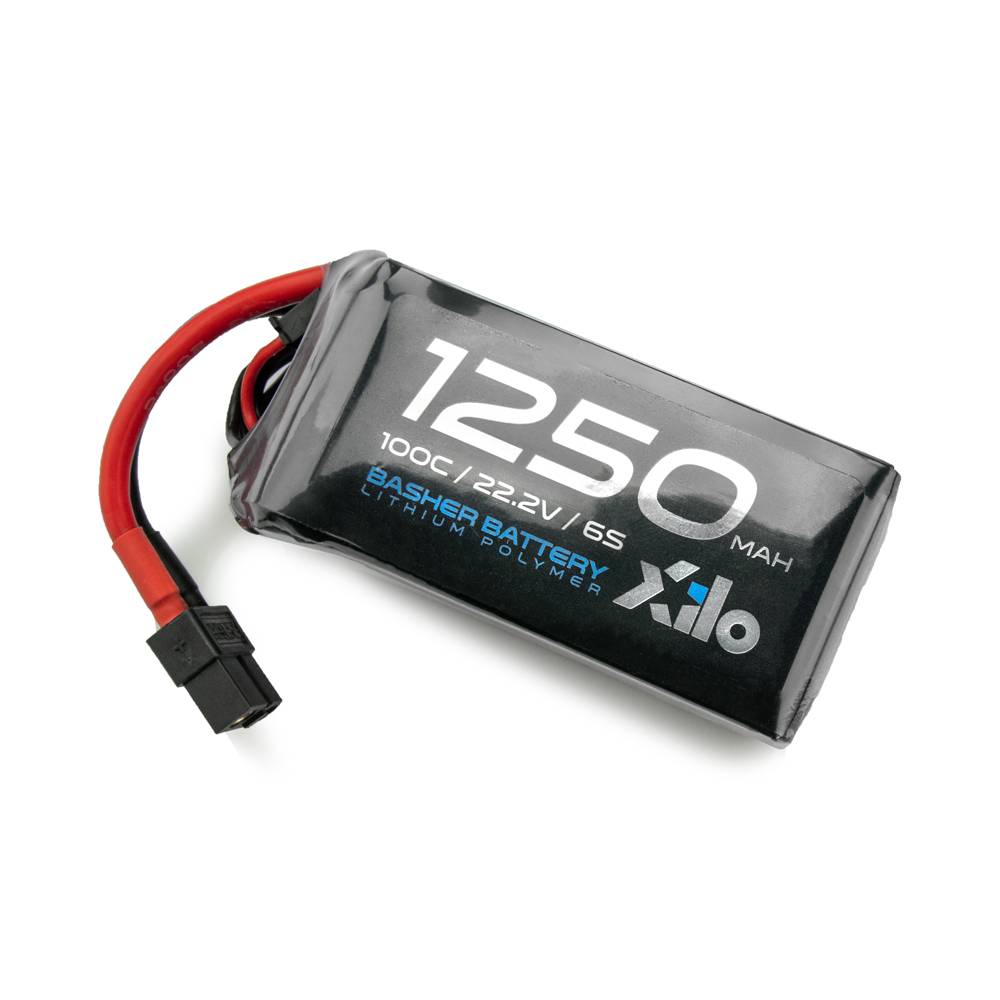

• XILO 1250mAh 6S 100c Basher LiPo Battery XT60

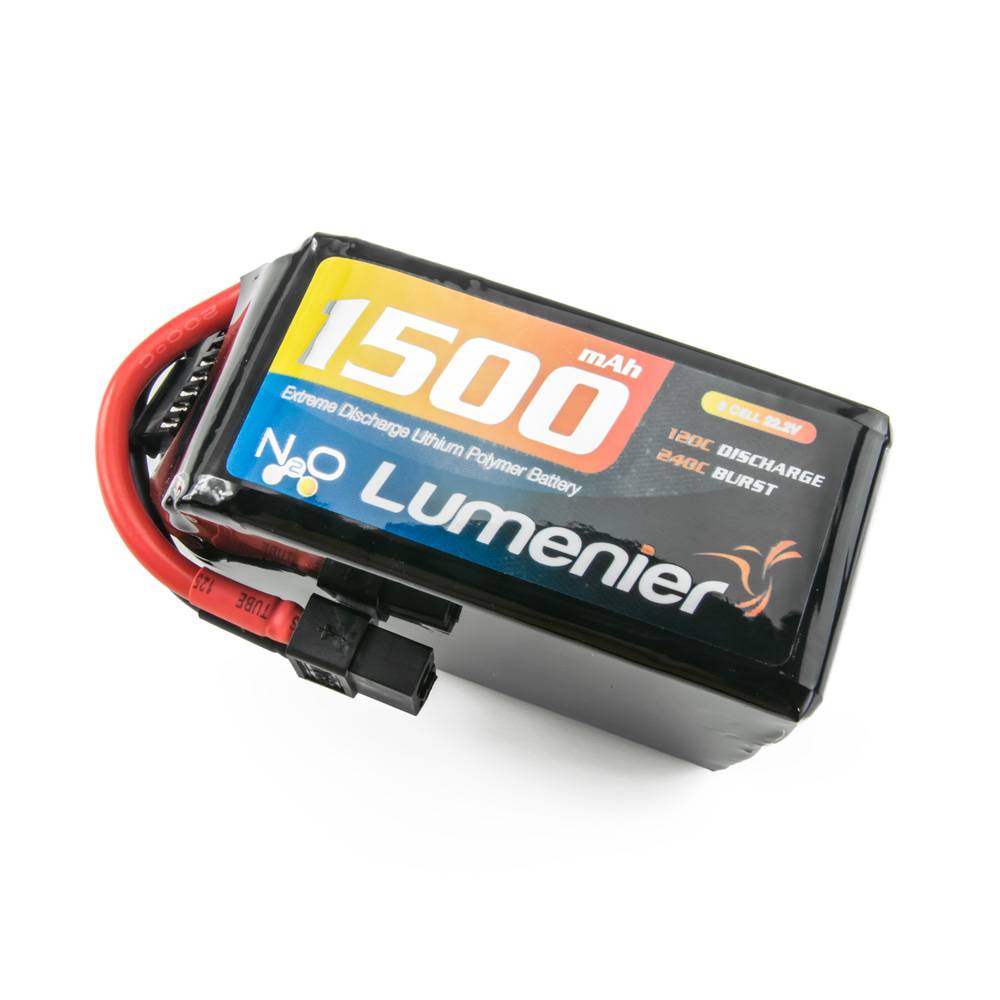

• Lumenier N2O 1500mAh 6s 120c Lipo Battery

BATTERY CHARGER

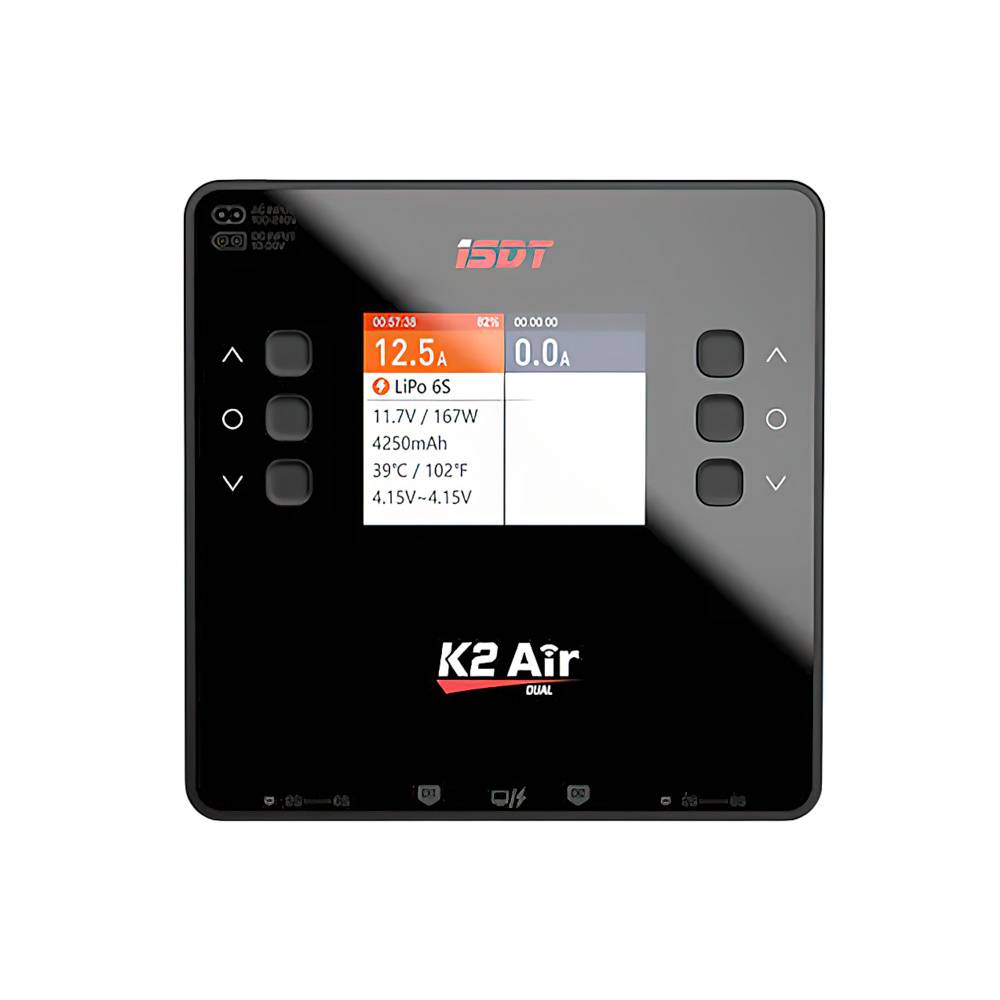

• Budget: iSDT K2 Air Bluetooth 20A Dual Smart Charger/Discharger - AC 200W / DC 500W
• Premium: Power Supply for Battery Charger - 400w 16.7A 24V w/ XT60

PROPELLERS

• Gemfan Hurricane Durable 51477 3-Blade Propeller (Set of 4)

HD ACTION CAMERA

• RunCam Thumb Pro 4K HD Action Camera (Wide FOV)
• Hawkeye Firefly X Lite II 4K 60FPS HD Action Camera
• Insta360 GO 3 Action Camera - 32GB

RADIO

• Other / ELRS: RadioMaster TX16S MKII MAX Radio Transmitter - Joshua Bardwell Edition - ELRS

RADIO RECEIVER

• Premium: Happymodel TCXO ExpressLRS 2.4GHz Nano Receiver - EP1
• Midrange: Happymodel ExpressLRS Nano 2.4GHz EP1 RX

RADIO TRANSMITTER

• Axisflying ELRS Thor TX Pro 2.4GHz 10-1000mW Micro Module
• BETAFPV ELRS 2.4GHz Micro TX Module - 1W

SOLDERING AND TOOLS

• Flywoo FPV Quad Tool Kit w/ Multimeter and Soldering Iron or Miniware TS101 Digital OLED Smart Soldering Iron
• Ethix Tool Case (9 Pcs) or HDT RC Tool Set (Set of 10)
• 110V 300W Portable Mini Heat Gun Tool - Hot Air Gun
• Soldering Tip Cleaner - Coiled Wire Ball w/ Holder
• Lumenier 100G 63/37 0.8MM Solder Wire

ACCESSORIES

• Lumenier Indestructible Kevlar Lipo Strap - 16x250mm (3pcs)
• Lumenier QAV-S 2 Joshua Bardwell SE O4 Upgrade Kit

BUILD GUIDE VIDEOS

Are you seeking a step-by-step guide to building the QAV-S 2 HD Ready Kit? Follow the link for the entire build guide series, straight from the acclaimed FPV Pilot himself... Joshua Bardwell!

• 2023 Freestyle FPV Drone Build For Total Beginners (Playlist)

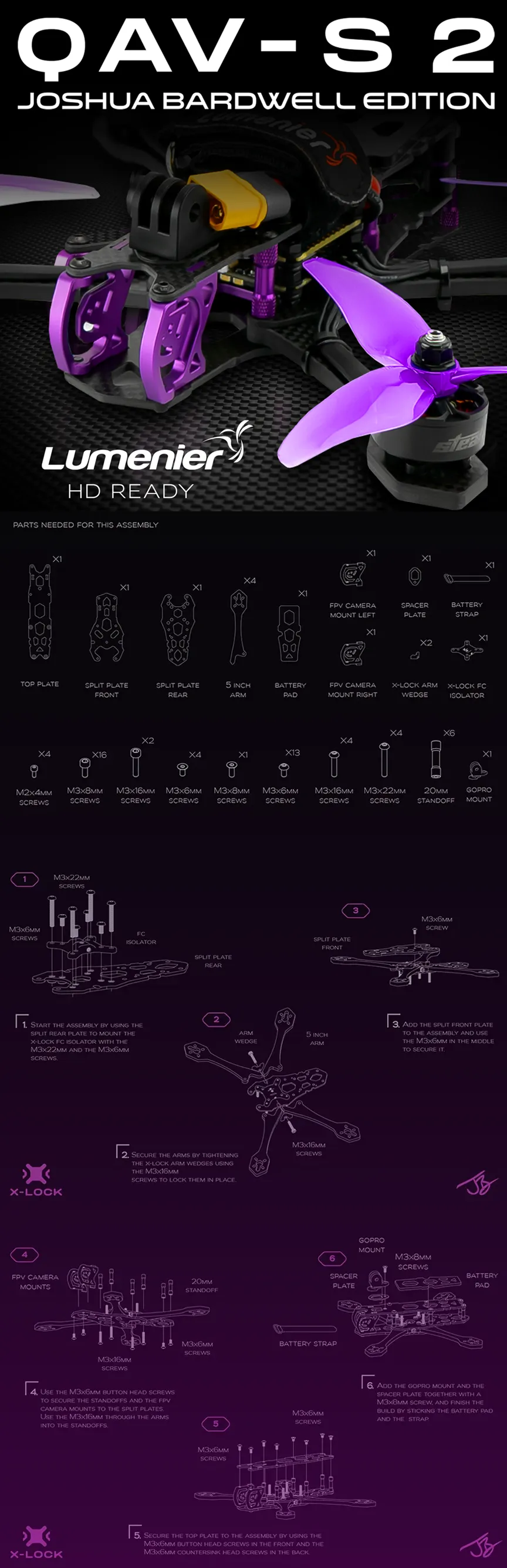

QAV-S 2 FRAME KIT

• Lumenier QAV-S 2 Bardwell Manual

• 1x Beginner DIY FPV Drone Kit - QAV-S 2 Joshua Bardwell SE 5” - HD Ready
• 1x Fat Shark Dominator Digital HD FPV Goggles
• 1x Walksnail Avatar HD Pro Kit - 32GB w/ Dual Antennas
