Lumenier DX800 FPV Monitor and DVR w/ 1.3GHz 24CH Receiver
The Lumenier DX800 DVR w/ 1.3GHz 24CH Receiver, an all in one mini ground station.

About this product

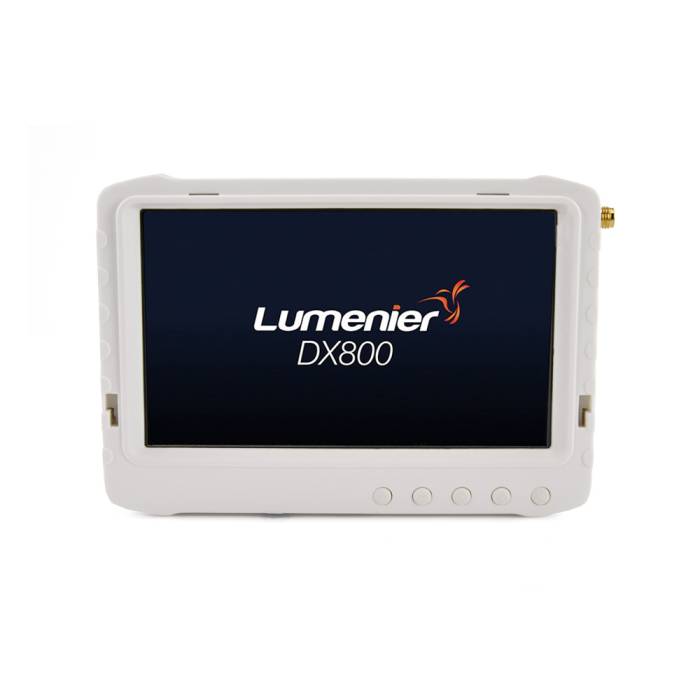

The Lumenier DX800 is a small and compact Digital Video Recorder (DVR) for your FPV ground station. Not only can you record your FPV flights, but the DX800 includes a 24CH 1.3GHz receiver built right into it! Record your flight video with ease with the Lumenier DX800 DVR, featuring a 1 button record mode, full color 5" LCD screen, and SD card recording. The bottom is threaded for a standard tripod screw making radio or tripod mounting easy.


  • Display: 5-inch display screen (800X480).
  • Wireless Receiving: Built-in 1.3GHz receiver module.
  • Channel Switch: Supports 24 channels, With auto channel scan
  • Antenna: 1.3GHz SMA antenna assures excellent wireless receiving.
  • Recording: Supports seamless cycle and continuous video from wired/wireless cameras.
  • Photo: Supports function of taking pictures either from wired or wireless cameras.
  • AV OUT: [NTSC / PAL].
  • Battery: Built-in 3200mAh high capacity Li-battery.
  • Speaker: Built-in speaker.
  • Storage: Supports up to 32GB micro SD card.
  • Language: Supports multiple languages.
  • Supports Power-saving Mode: automatic shutdown, automatic off-screen.
  • Automatic upgrade: Supports system automatic upgrade.
  • Sunshade Cover Provided: Video screen can be viewed clearly outside.
  • Screw-socket: 1/4-20 threaded base
  • Video Recording Format: MPEG-4 CODEC in an AVI file container


  • Dimensions: 131mm*88mm*17mm;
  • Weight: 218g including battery


  • Lumenier DX800 DVR Unit
  • Detachable Sunshade
  • AC Adapter
  • User Manual
  • AV-IN/Out Cable
  • USB Cable
  • Built-in Lithium Battery

Note: You will need an SD Memory Card to be able to record audio/video. We recommend a Class 10 SD card, anywhere from 1GB to 32GB. You can record around 1 hour on a 1GB card.

More Information

SKU 9322
UPC (GTIN) 721248874122
Manufacturer Lumenier
Item Returns This item can be returned
