Eachine 7" LCD5802D DVR 5.8GHz 40CH FPV Monitor

Eachine 7" LCD5802D DVR 5.8GHz 40CH FPV Monitor

In Stock

Only left for same day shipping. Order now!

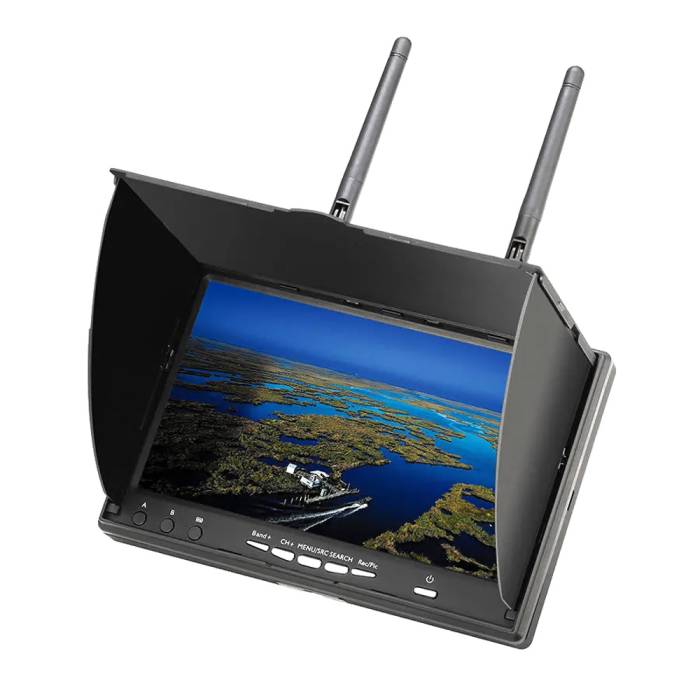

Eachine 7" LCD5802D DVR 5.8GHz 40CH FPV Monitor
The Eachine LCD5802D is a 7" FPV monitor with a built-in 7.4V 2000mAh battery. This monitor is equipped with dual receivers for excellent reception, as well as a work status OSD display, DVR function, and 40 Channels.

About this product

The Eachine LCD5802D is a 7" FPV monitor with a built-in 7.4V 2000mAh battery. This monitor is equipped with dual receivers for excellent reception, as well as a work status OSD display, DVR function, and 40 Channels. The durable pop-up sunshade ensures you will have a great visual even on the brightest of days! The Work status OSD display shows the device's working condition in real-time so you won't be caught off-guard.

VIDEO: Eachine LCD5802D 5.8G 40CH 7 Inch FPV Monitor with DVR

Features

  • Simple operation - A key to automatic signal search
  • Built-in battery, easy to carry, great for outdoor use
  • Built-in Dual Receiver for best reception
  • Speakers allow headphone-free use

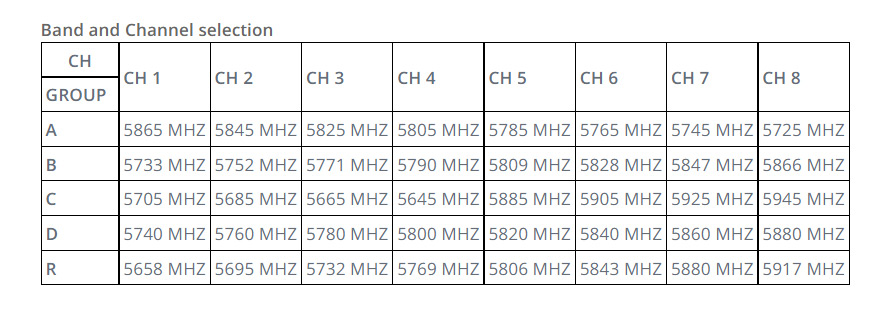

  • 5 Bands and a total of 40 Channels
  • No 2.4GHz R/C Radio interfference
  • AV Receiver with Diversity inputs
  • Small, lightweight, durable
  • Work status OSD display
  • Dual buffered AV outputs
  • DVR function

Specifications

  • Receivers: Built-in 5.8Ghz Dual diversity receiver automatically for best reception
  • Work status OSD display: RSSI indication; Battery indicator; Channel indication
  • Output/Input: Built-in 2CH 5.8Ghz AV output and 1CH AV input
  • Screen type:TFT LCD Screen/long-life- LED backlight
  • Antennas Connectors: RP-SMA male (inner hole)
  • View Angle: 140/120degree (Horizontal/Vertical)
  • Battery charging current : 850mA @12V (max)
  • Connectors: RP-SMA female(outer needle)
  • Memory: Support up to 32G, C10 SD Card
  • Language: Supports Chinese and English
  • Power Consumption: max 650 mA @12V
  • Working temperature: -10℃~+ 65 ℃
  • Battery: 7.4V 2000mAh (Built-in)
  • Item Name: LCD5802D Monitor
  • Size: 180mm x 120mm x 25mm
  • Working Voltage: DC 7~16V
  • Sunshield Height: 110mm
  • Brand Name: Eachine
  • Resolution: 800*480
  • Frequency: 5.8GHz
  • Format: JPEG, AVI
  • Speakers: Yes
  • Screen size:7”
  • Channels: 40
  • DVR: Yes
  • Note: This device cannot receive 2 different channels at the same time.

Includes

  • 1x 7" LCD Screen Receiver Monitor with built-in Rechargeable Battery
  • 2x 5.8G Antenna
  • 1x AV Cable
  • 1x Charger

More Information

SKU 17057
UPC (GTIN) 764613337723
Manufacturer Eachine
