Eachine 5" Moneagle IPS 1000Lux 5.8GHz 40CH Diversity FPV Monitor w/ DVR

Eachine 5" Moneagle IPS 1000Lux 5.8GHz 40CH Diversity FPV Monitor w/ DVR

Back Ordered

Only left for same day shipping. Order now!
Eachine 5" Moneagle IPS 1000Lux 5.8GHz 40CH Diversity FPV Monitor w/ DVR

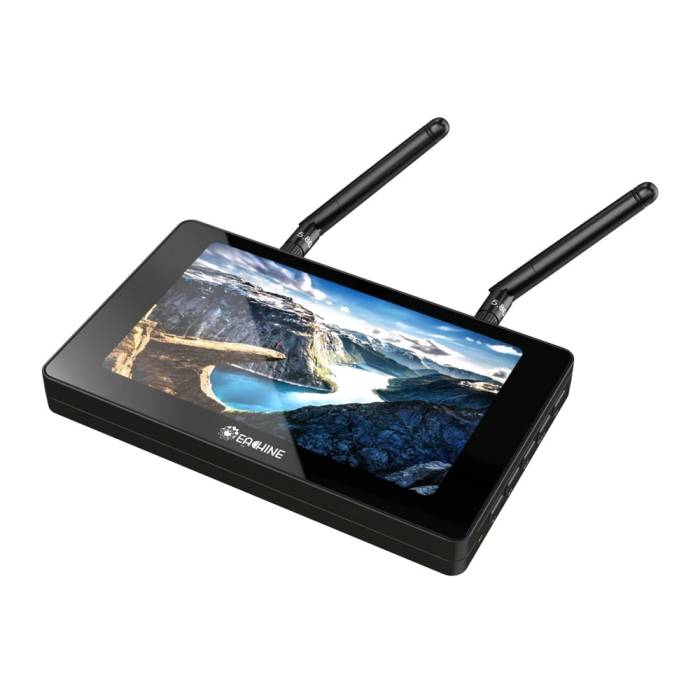

The Eachine Moneagle is a 5" FPV monitor with a high-capacity built-in 4000mAh battery. This monitor is equipped with a 5.8GHz Diversity receiver for excellent reception, as well as a 1000Lux display luminance, DVR function, and 40 Channels!

About this product

The Eachine Moneagle is a 5" FPV monitor with a high-capacity built-in 4000mAh battery. This monitor is equipped with a 5.8GHz Diversity receiver for excellent reception, as well as a 1000Lux display luminance, DVR function, and 40 Channels!

VIDEO: Eachine Moneagle FPV Monitor Review

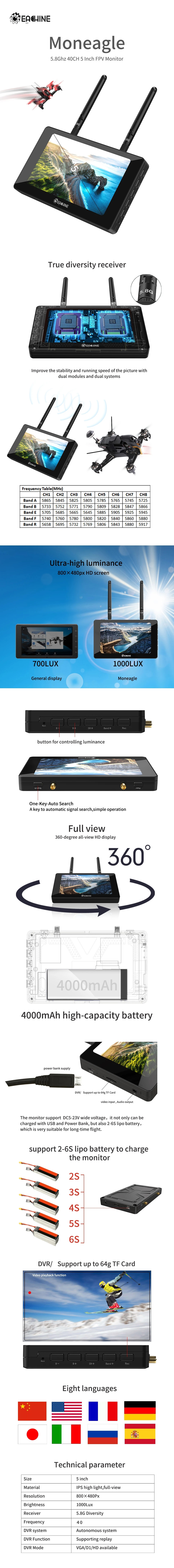

Features

  • Three video recording modes: DVR(VGA/D1/HD)
  • Ultra-high luminance - 800x480px HD screen
  • Simple operation - One-Key-Auto search
  • Built-in 4000mAh high capacity battery
  • 5.8G 40CH true diversity receiver
  • Support DC 5-23V wide voltage
  • 360-degree all-view HD display
  • Suitable for long flight times
  • Support up to 64G TF card
  • Support 2-6S lipo battery
  • Support eight languages
  • Support video replay

Specifications

  • Input Voltage: DC 5-23V, wide voltage input range, which can be powered by lipo battery 2-6S
  • Glass Material: IPS High luminance, all viewing angle
  • Storage Standard: C10, Maximum supporting 64G
  • Size of Product: 145x86x16mm (without antenna)
  • Receiving Frequency Channel Numbers: 40
  • Loudspeaker: High fidelity, stereo speakers
  • Charging Input Mode: USB Charging Mode
  • Material of Battery: 3.8V Polymer battery
  • Continuous Working Hours: >3 hours
  • Memory Storage: TF Card up to 64g
  • DVR System: Autonomous System
  • DVR Function: Supporting Replay
  • DVR Mode: VGA/D1/HD available
  • Luminance of Display: 1000Lux
  • Clarity of Display: 800x480px
  • Receiver: Diversity Receiver
  • Battery Capacity: 4000mAh
  • Size of Display: 5 Inches
  • Brand Name: Eachine
  • Item Name: Moneagle
  • Weight: 170g

Manual

Includes

  • 1x Eachine 5" Moneagle DVR 5.8GHz 40CH Diversity FPV Monitor
  • 1x Bracket for Radio Controller
  • 1x XT60 Expanded Cable
  • 1x Linear Antenna
  • 1x USB Cable
  • 1x AV Cable
  • 1x Manual

More Information

SKU 17056
UPC (GTIN) 764613337730
Manufacturer Eachine
Item Returns This item can be returned
