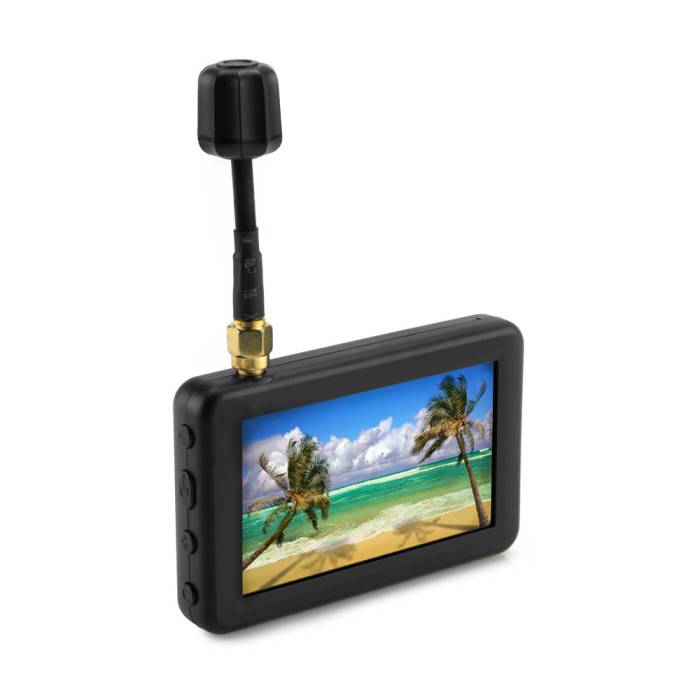

DMKR LS-5804 3" Mini FPV LCD Monitor

DMKR LS-5804 3" Mini FPV LCD Monitor

In Stock

Only left for same day shipping. Order now!
Earn
DMKR LS-5804 3" Mini FPV LCD Monitor
The DMKR LS-5804 is a 3" mini-sized FPV Monitor with an LCD display, 480x320 16:9 display ratio, and a built-in 3.7V 800mAh battery.

About this product

The DMKR LS-5804 is a 3" mini-sized FPV Monitor with an LCD display, 480x320 16:9 display ratio, and a built-in 3.7V 800mAh battery which allows about 2 hours of use. This pocket-sized monitor is great for Analog use.

Features

  • Supports external video and internal AV signal output
  • Built-in 3.7V 800mAh Li-Ion Polymer battery
  • Bilingual menu support Chinese and English
  • 3" 480x320 dot high brightness LCD screen
  • Real-time video return with low time-delay
  • RaceBand 40 channels with auto search
  • Universal USB Charging interface
  • Working current 360-400mAh
  • Small size and lightweight
  • Low Power consumption
  • Built0in 5.8GHz receiver

DMKR LS-5804 3 Mini FPV LCD Monitor

Specifications

  • Brightness: 500cd/m2 with high brightness backlight LED
  • AV Jack: external video or internals AV signal output
  • Battery: 3.7V Built-in 800mAh (max)
  • View Angle: 360 without dead angle
  • Languages: English and Chinese
  • Operating Current: 360-400mAh
  • Video Delay: less than 20ms
  • Power Adapter: DC 5V / 1A
  • Dimensions: 3.3" x 2" x .5"
  • Charging interface: USB
  • Antenna: RP-SMA male
  • Battery Life: 2 Hours
  • Resolution: 480x320
  • Display Ratio: 16:9
  • Screen Type: LCD
  • Model: LS-5804
  • Channels: 40
  • Weight: 65g

Includes

  • 1x DMKR LS-5804 3" Mini FPV LCD Monitor
  • 1x Aux Cable (male to open wire)
  • 1x Aux Cable (male to male)
  • 1x RP-SMA Antenna (male)
  • 1x Wooden Storage Case


More Information

SKU 17054
UPC (GTIN) 764613338096
Manufacturer DMKR
NDAA Compliant No
Item Returns This item can be returned
